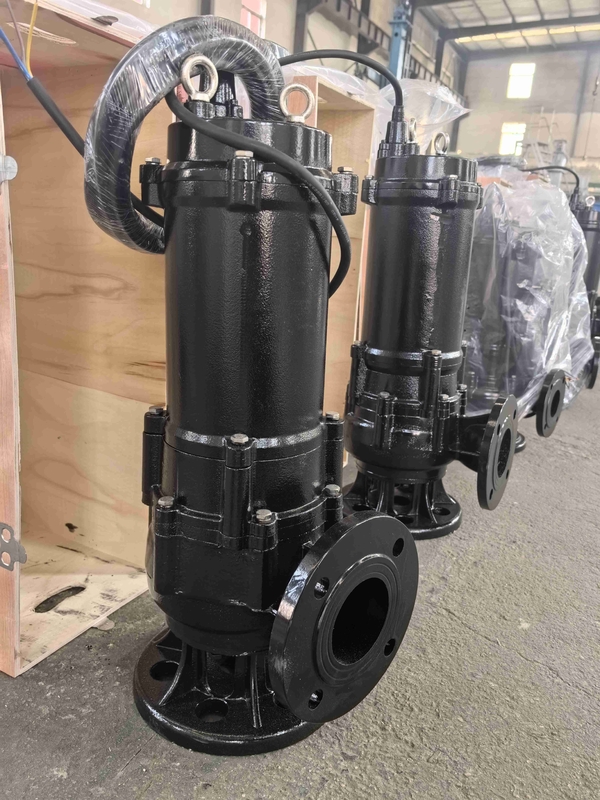

WQ Submersible Sewage Pump With Single-channel Impeller, Support various customized requirements, 20 years factory experience.
WQ submersible sewage pump is a coaxial integration of the water pump and the motor. When working, the motor shaft drives the rotation of the water pump impeller to give energy to the slurry medium, so that it generates a certain flow rate, and drives the solid flow to realize the slurry transportation.

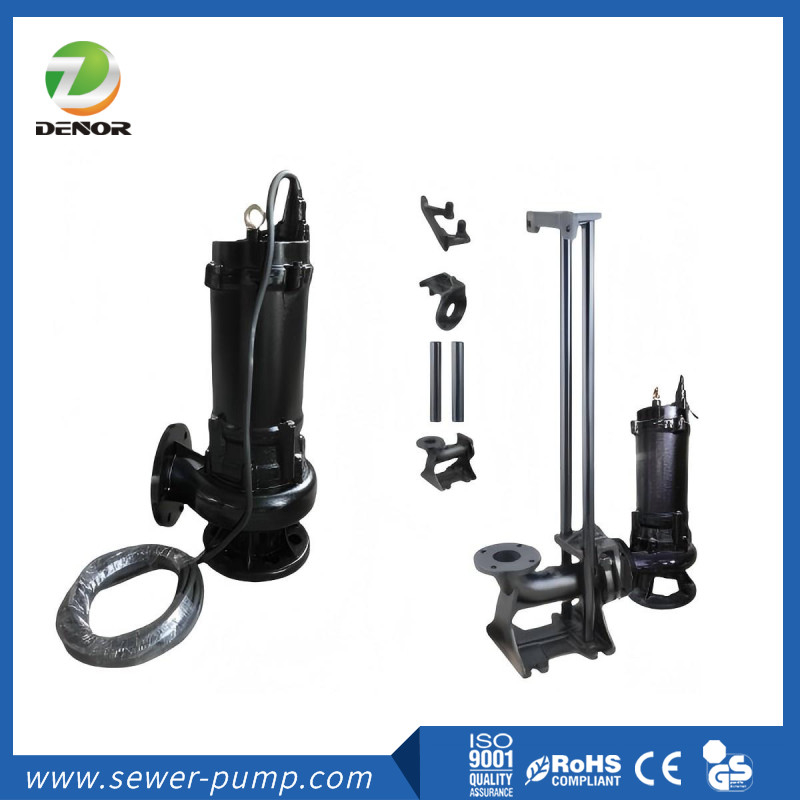

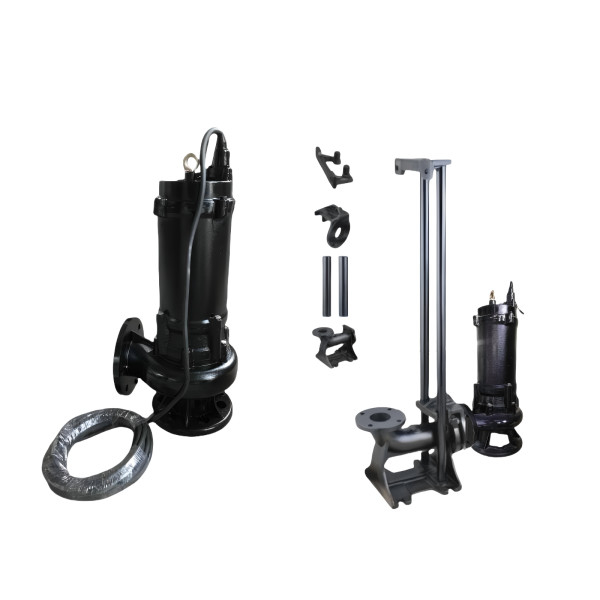

The electric Submersible Sewage Pump is a pump whose motor is directly coupled to the pump body and enclosed in a waterproof and leak-proof sealed housing, making the entire unit fully submersible. Suitable for free standing wet installation (with rigid or flexible pipeline connection) and for wet installation on automatic coupling foot. It is specifically suitable for waste water, slurry, sewage with solids and fibres, grey waters, recycled and active sludges.
Advantage of Denor Submersible Sewage Pump
1. Long-term reliability with wastewater-designed impellers. 2. Sewage containing solids and fibrous material. 3. The pump run continuously for more than 8000 hours. 4. Compact structure, small size, low noise, energy saving, convenient maintenance. 5. Automatic control system with PLC variable frequency control cabinet. 6. Dual-rail automatic coupling installation system. 7. Sustainable in manufacturing and operation. ...
Applications Construction Sites: Foundation Pit Drainage. Municipal and Civil Use: Heptic Tank, Domestic Wastewater Discharge from Residential Buildings, Shopping Malls, and Hospitals. Sewage Treatment Plants: Wastewater Transfer and Recycling in Lifting Stations, Sewage Tanks, and Aeration Tanks. Industrial Sector: Factory Wastewater and Process Water Discharge. Flood Control and Drainage: Used as a Mobile Pump Truck.
Performance Data(Support various customized requirements)
(1hp, 2hp, 3hp, 5hp, 6hp, 7hp, 8hp,10hp, etc. Submersible Sewage Pump, Support customization )
Model
Outlet (mm)
Capacity (m³/h)
Head (m)
Speed (r/min)
Power (KW)
Efficiency (%)
25WQ7 - 8 - 0.55
25
7
8
2900
0.55
45
25WQ8 - 25 - 1.1
25
8
25
2900
1.1
45
32WQ8 - 12 - 0.75
32
8
12
2900
0.75
48
40WQ12 - 15 - 1.5
40
12
15
2900
1.5
48
50WQ20 - 7 - 0.75
50
20
7
2900
0.75
62
50WQ10 - 10 - 0.75
50
10
10
2900
0.75
54
50WQ20 - 15 - 1.5
50
20
15
2900
1.5
51
50WQ15 - 30 - 2.2
50
15
30
2900
2.2
51
50WQ17 - 25 - 3
50
17
25
2900
3
53
50WQ25 - 32 - 5.5
50
25
32
2900
5.5
49
65WQ25 - 15 - 2.2
65
25
15
2900
2.2
52
65WQ37 - 13 - 3
65
37
13
2900
3
60
65WQ25 - 30 - 4
65
25
30
2900
4
58
Please contact us for more details about sewage pump cost and how to it works.
