Product Description

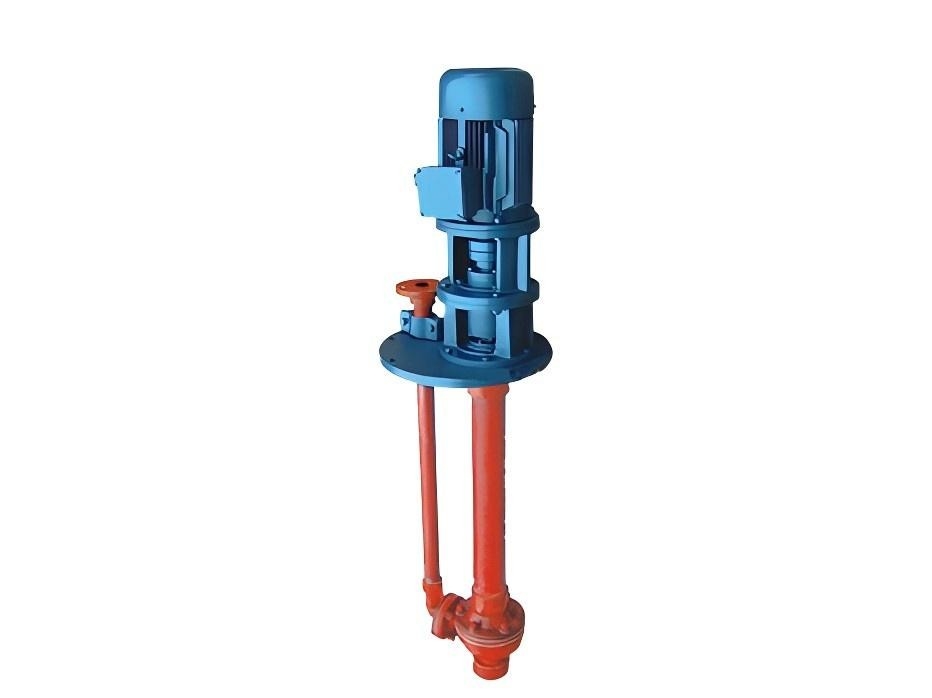

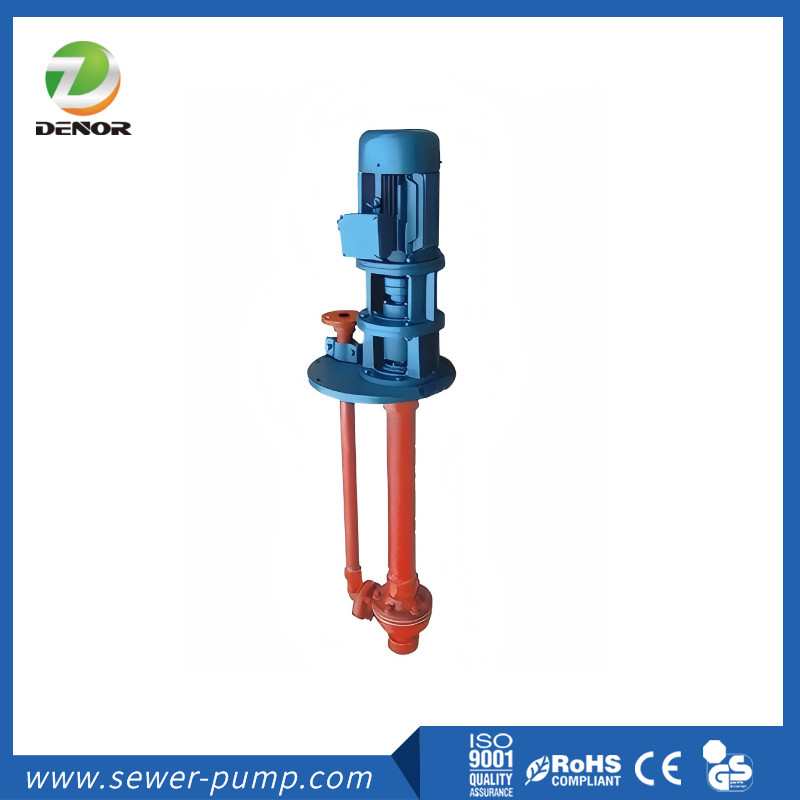

FSY/WSY Type FRP Chemical Process Pump

Our Denor have two types of glass fiber reinforced plastic pump, FSY type, WSY type vertical glass fiber reinforced plastic FRP Chemical Pump.

1. WSY pump is a vertical glass fiber reinforced plastic submerged vortex pump. 2. The FSY pump is a vertical FRP submerged centrifugal pump.

Because the pump extends into the storage tank, the depth of the storage tank is different, and the designed submerged depth is between 800mm and 3000mm. As long as the liquid is higher than the pump body, the liquid can be started without filling the liquid. There are leakage holes under the flat cover, and the liquid will not leak to the outside of the storage tank.

The core value of both the FSY and WSY series Vertical FRP Cantilever Pump lies in their FRP (Fiberglass Reinforced Plastic) material:

Excellent Corrosion Resistance:
They withstand most highly corrosive media, including hydrochloric acid, sulfuric acid, nitric acid, alkalis, saline solutions, and organic solvents.

Lightweight:
Weighing significantly less than comparable metal pumps (such as stainless steel and high-alloy steel), they are easier to install and transport.

Cost-Effectiveness:
For corrosive applications, their cost-effectiveness is often superior to that of more expensive metal alloys (such as Hastelloy and titanium).

Pollution-Free:
The purity of the pumped media is guaranteed, preventing metal ion contamination.

Example: 25WSY-30

25- Outlet diameter is 25 mm, W- Corrosion-resistant whirlpool pump S- Parts in contact with the medium are made of phenolic glass fiber reinforced plastic Y- liquid pump 30- pump head is 30 meters.

Example: 50FSY-35A

50- discharge outlet diameter of 50 mm, F- corrosion resistant off-scale pump, S- material phenolic glass, Y- liquid pump, 35- pump head of 35 meters, A- impeller round after a turning.

Application
FSY Vertical FRP Cantilever Pump are widely used in industries of chemical, petrochemical, smelting, dyes, pesticides, rare earths, leather to transport various non-oxidizing acids that do not contain suspended solid particles, are not easily crystallized, and have a temperature lower than 100℃. It is the most reasonable equipment for corrosive media such as hydrochloric acid, dilute sulfuric acid, formic acid, acetic acid and butyric acid.
