Name: FYS Fluoroplastic Corrosion-Resistant Pump
Brand: Denor Fluid Equipment (wuhan) Co., Ltd.
SKU: DENOR-YXB
Price: 1,500.00 USD
Availability: InStock

Home > products > Submerged Pump >

FYS Fluoroplastic Corrosion-Resistant Pump

Place of Origin:

China

Brand Name:

DENOR

Certification:

ISO/CE/TUV

Model Number:

DENOR-YXB

Request A Quote

Product Details

Type:

Fluoroplastic Corrosion-Resistant Pump

Payment & Shipping Terms

FYS Fluoroplastic Corrosion-Resistant Pump

Get Best Price

Video

FSY/WSY Type FRP Chemical Process Pum

Get Best Price

Video

Vertical Turbine Pump

Get Best Price

Vertical Multistage Line-Shaft Turbine Pump

Get Best Price

+86 13349865892

info@denorgroup.com

Contact Now

Product Description

Fluoroplastic alloy is a corrosion-resistant material. The FYS corrosion-resistant submersible pump, a vertical, single-stage, single-suction centrifugal pump, is made from this material. It offers exceptional corrosion resistance, high mechanical strength, and resistance to aging. It is designed for conveying corrosive liquids of any concentration, such as acids, alkalis, and oxidants, that are free of solid particles and prone to product formation. It primarily addresses the transport of highly corrosive media.

Conform to design standard of ISO2858/GB/T5656
Flow range: 3~400m3/h
Lift range: ~50m
Design pressure: ~1.0MPa
Application temperature: -20~150ºC
Application field: This series of pump is mainly used in industries of oil refinery, petrochemical industry, coal chemical industry, power plant, environmental protection engineering, polluted water treatment and cement plant, etc.
Suitable for transporting all kinds of clean, particle free or micro particle contained neutral or corrosive medium.

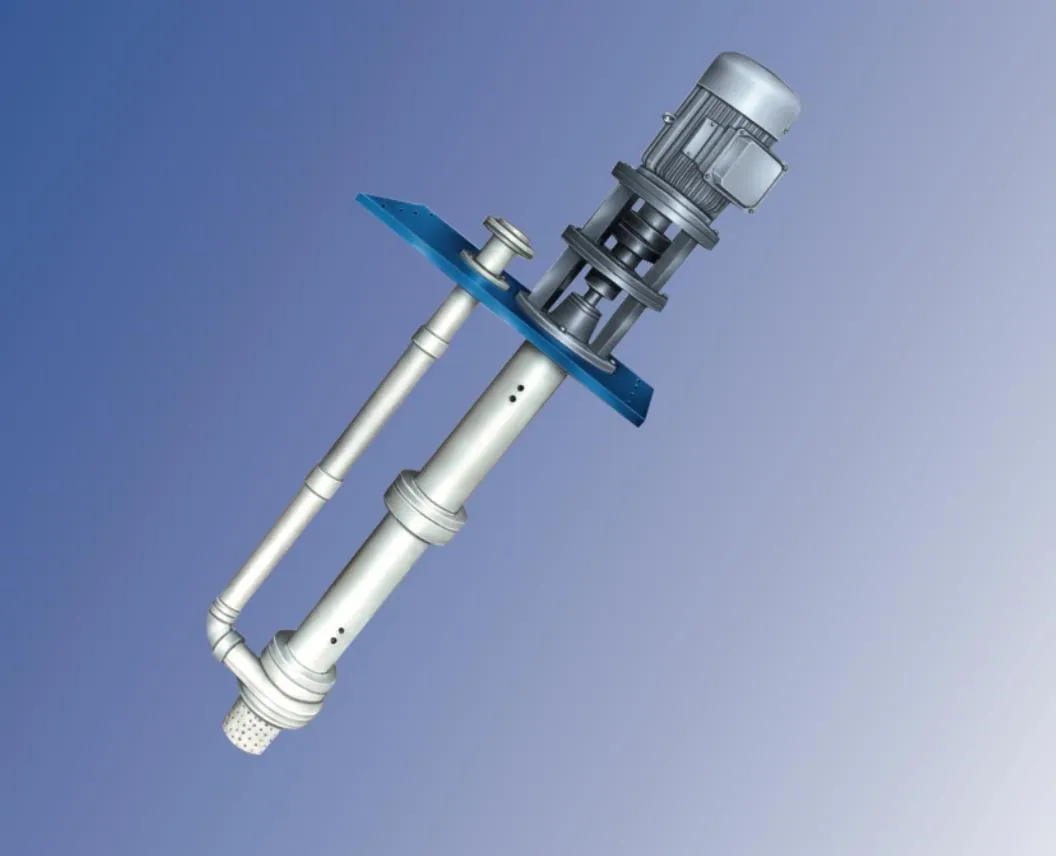

FYS Fluoroplastic Corrosion-Resistant Pump 0

The FYS fluoroplastic acid-resistant pump is vertical single-stage single-suction centrifugal pump. It is used to pump corrosive liquid without solid particles which is hard to crystallize. The temperature of pumped liquids range from -20ºC to 150ºC. Its working parts are submerged in liquids, shaft seal has no leakage. It has advantages such as small area occupation, reliable operation, easy maintenance and strong corrosion resistance.

Main Features:
The FYS type corrosion-resistant submersible pump is a vertical structure. The pump body and impeller are partially immersed in the liquid, so it occupies a small area and the shaft seal has no leakage, so it is suitable for corrosive liquids with a temperature of -5 ºC -105 ºC . The steering of the pump should be started in the direction indicated by the pump. Can not run in reverse, the pump body is submerged in liquid when starting. A: Reinforced polypropylene.C: Polyvinylidene fluoride. D: Fluoroplastic alloy.

Applications
The FYS pump is widely used to pump all kinds of clean liquids, particle free or little partile liquids, neutral or strong corrosive liquids. It is mainly used in industries and fields of oil refinery, petrochemical engineering, coal chemical industry, power plant, environmental protection engineering, waste water treatment and cement plants etc.

The FYS type corrosion-resistant submerged pump can transport acids, alkalis, salts, oils, beverages and other media.

Chart

FYS Fluoroplastic Corrosion-Resistant Pump 1

1	Before the pump cover	2	Pump body	3	Impeller	4	Impeller nut	5	Pump cover	6	Shaft sleeve
7	Intermediate to take over	8	Liquid pipe	9	Middle of guide bearing	10	Axle	11	Floor	12	Bracket
13	On the collar	14	Bearing	15	Bearing box	16	Bearing	17	Coupling	18	Motor

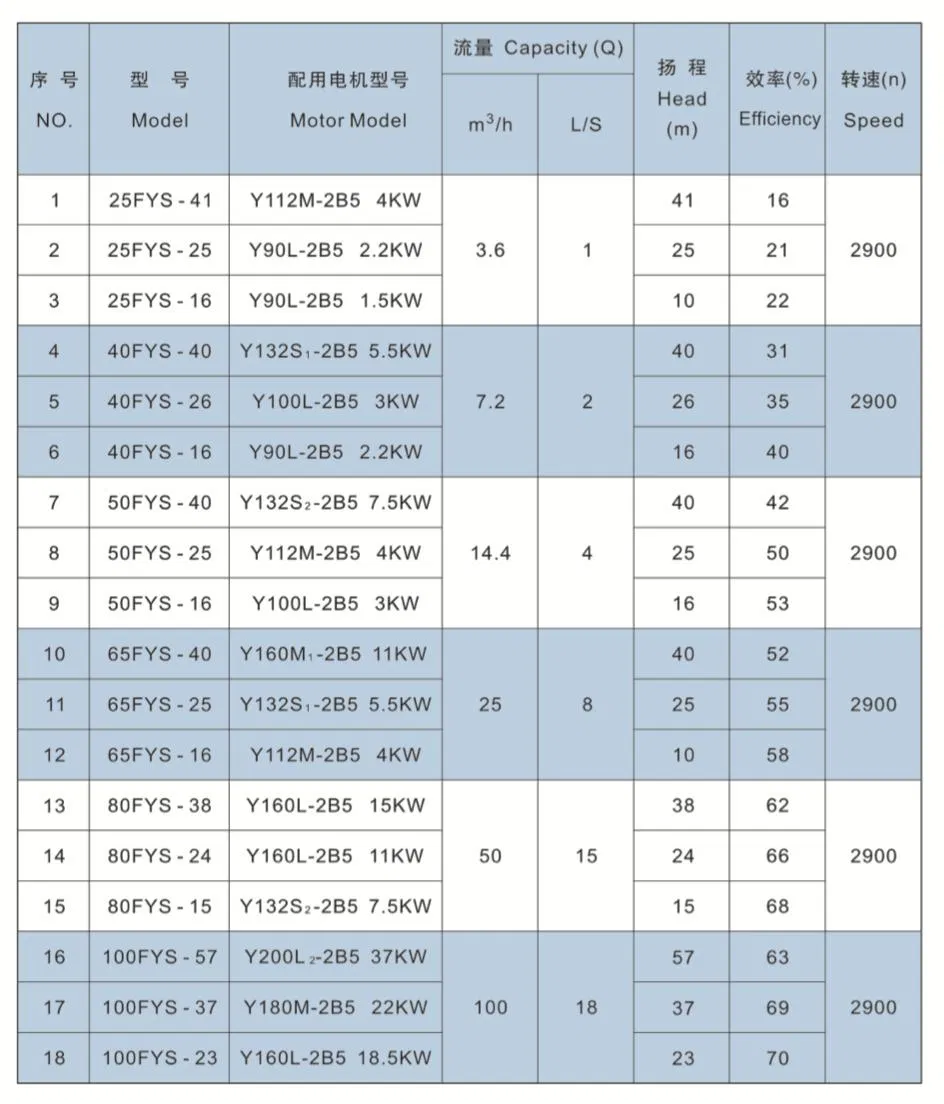

Performance parameters
