Trusted WQ Submersible Sewage Pump Manufacturer with Over Two Decades of Engineering Expertise.
The WQ submersible sewage pump is an integrated centrifugal pump designed for reliable handling of liquids containing solid particles and contaminated liquids. It is energy-saving, anti-winding, anti-clogging, and operates fully submerged in sewage and wastewater.
Main benefits of WQ submersible sewage pump
High-flow, anti-clogging design
Premium efficiency motors, maximize energy savings
Robust impellers, engineered for long-term reliability
Superior sewage handling, minimize clogging & downtime
Sustainable design, Eco-friendly manufacturing & operation
Various customized requirements, support US/EU standard
Main applications
Municipal sewage and drainage systems
Industrial raw water and wastewater systems
Commercial and residential complex sewage systems
Sewage treatment plants drainage system
Stormwater pumping and urban flood control
Product Description
Technical Data
Applications

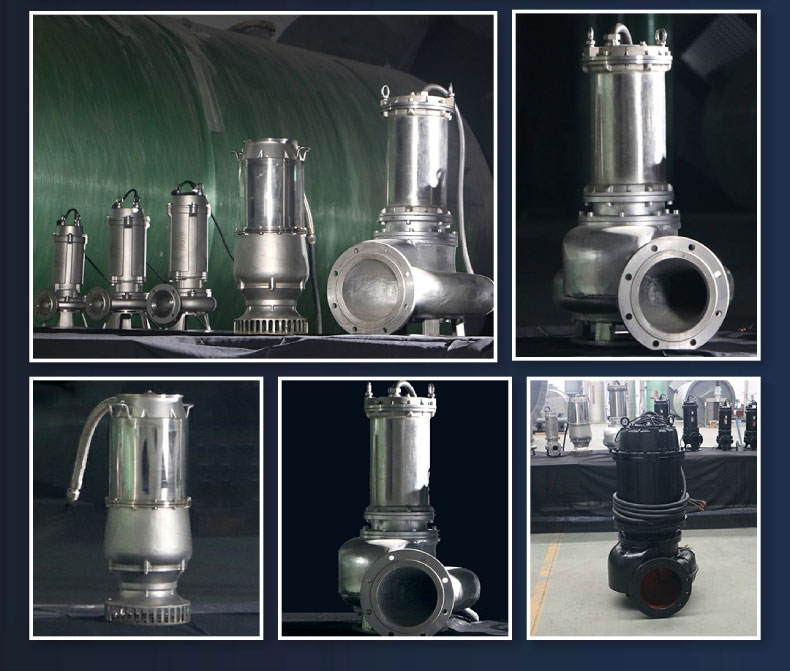

WQ submersible sewage pumps is constructed from thick stainless steel and cast iron, offering exceptional robustness, abrasion resistance, and durability. Stainless steel may also be used to deliver corrosive medium.

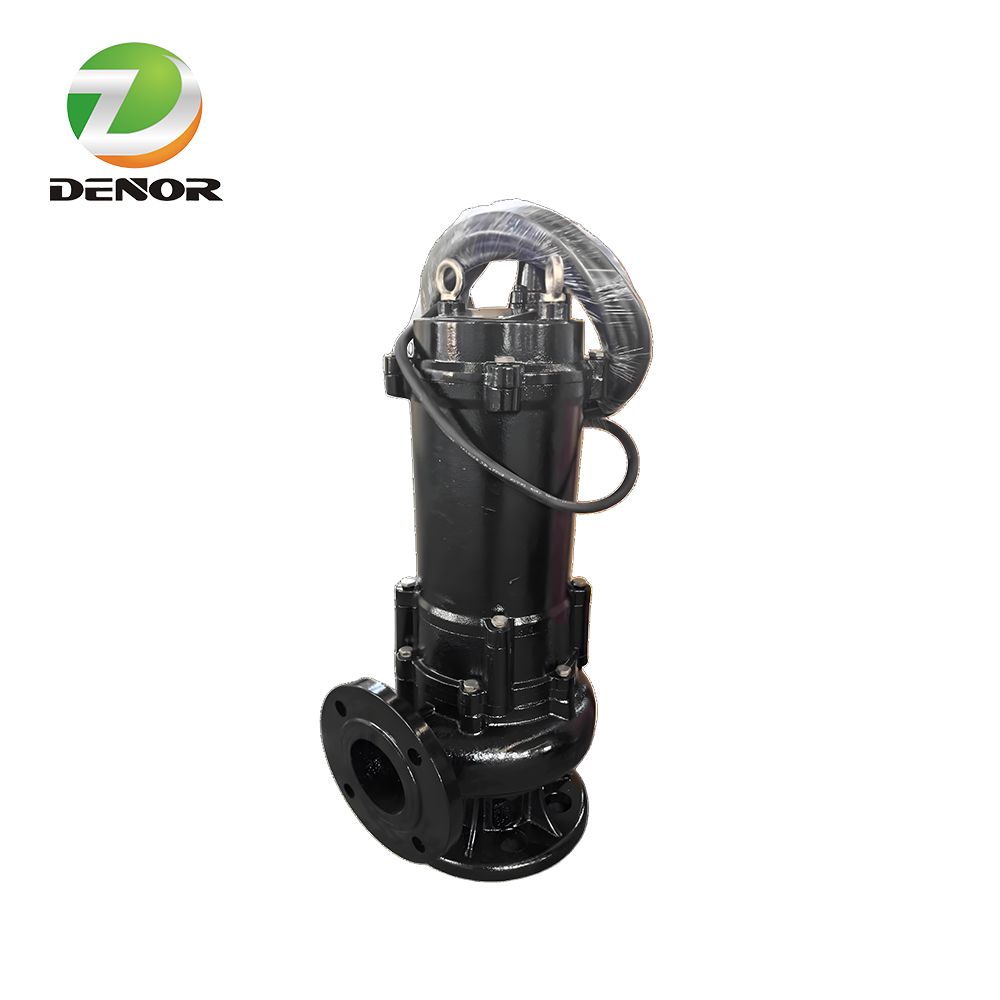

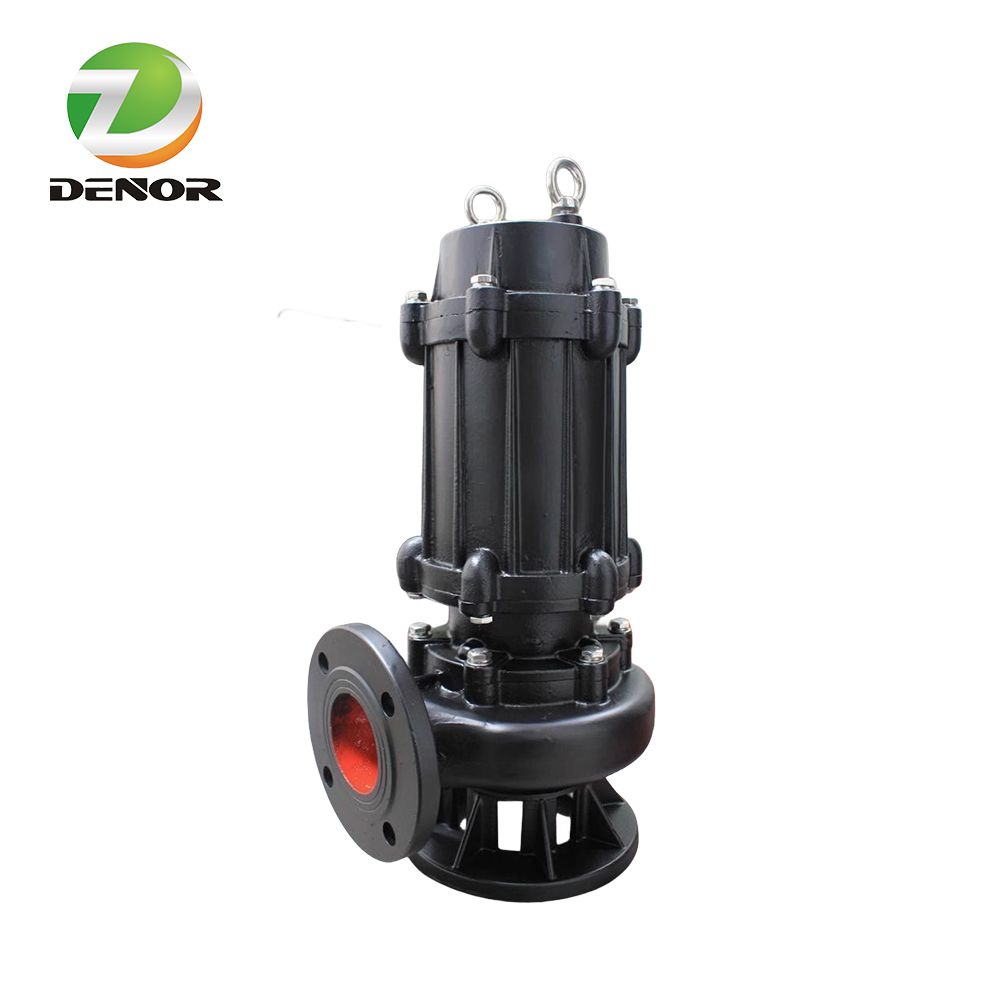

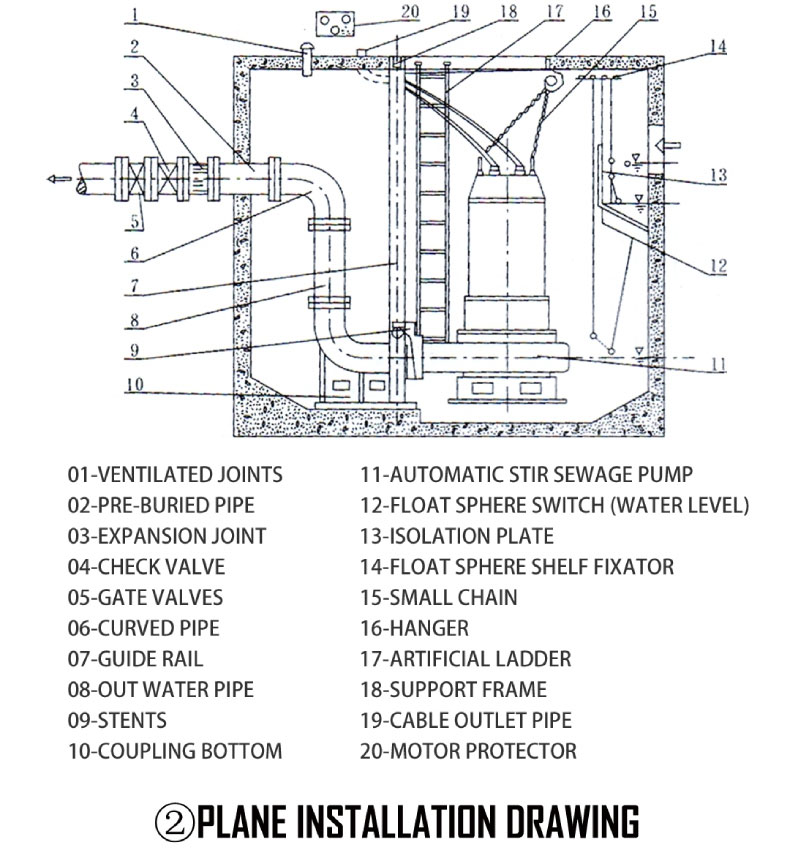

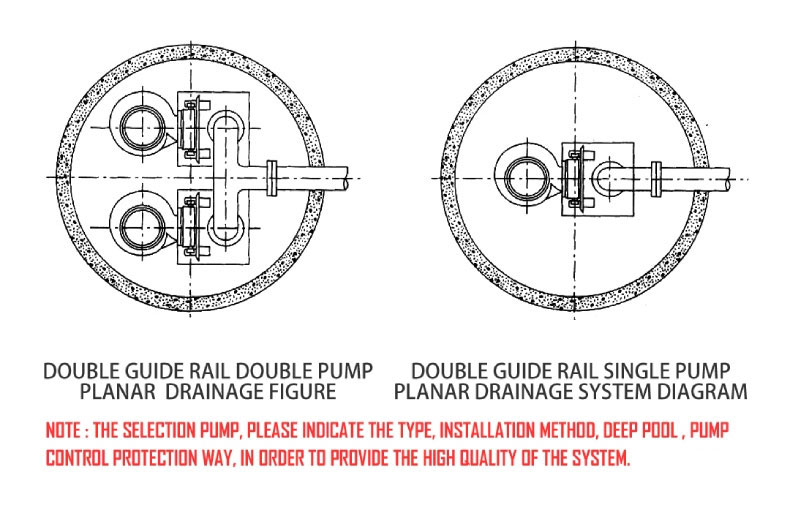

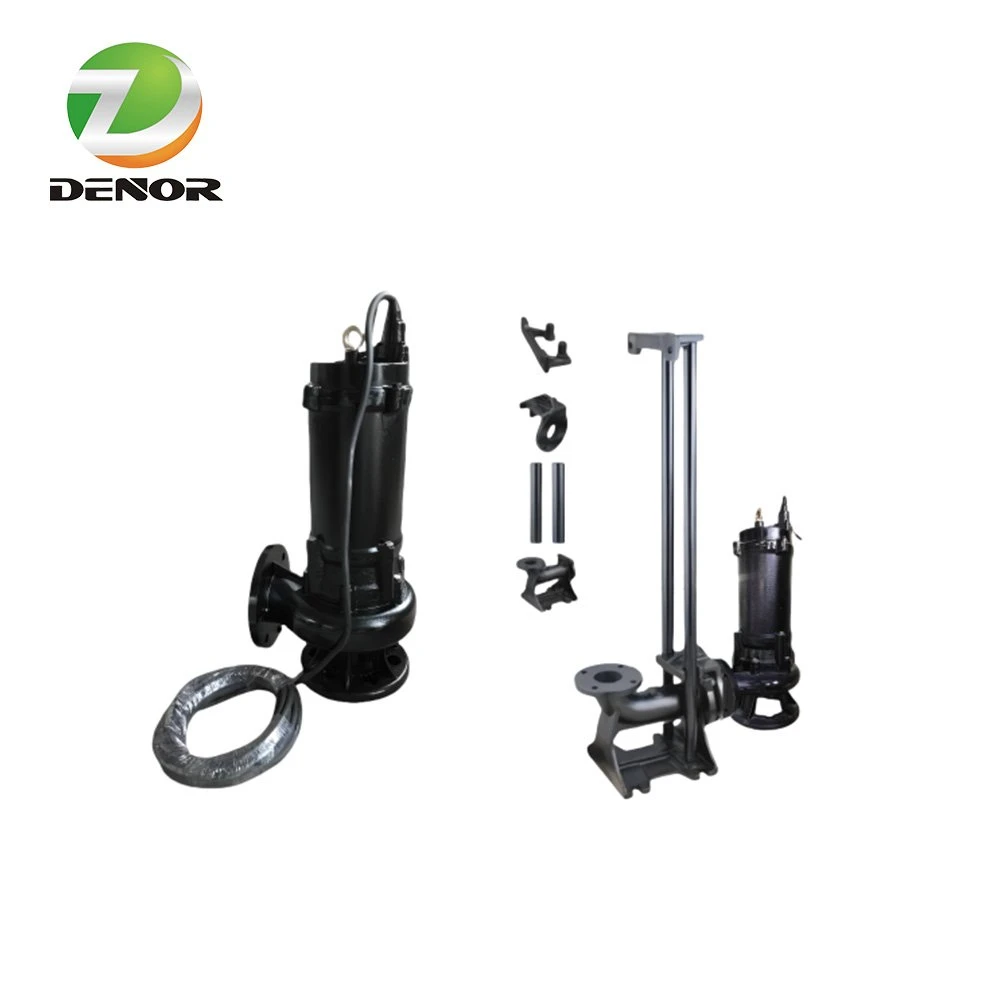

The WQ Submersible Sewage Pump is a pump whose motor is directly coupled to the pump body and enclosed in a waterproof and leak-proof sealed housing, making the entire unit fully submersible. Suitable for free standing wet installation (with rigid or flexible pipeline connection) and for wet installation on automatic coupling foot. It is specifically suitable for waste water, slurry, sewage with solids and fibers, grey waters, recycled and active sludge.
Advantage of Denor WQ Submersible Sewage Pump
...
Applications

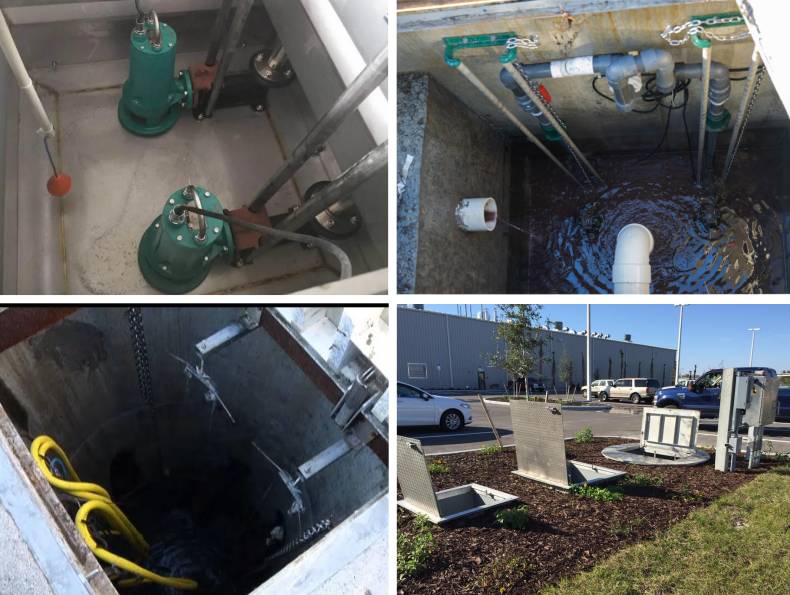

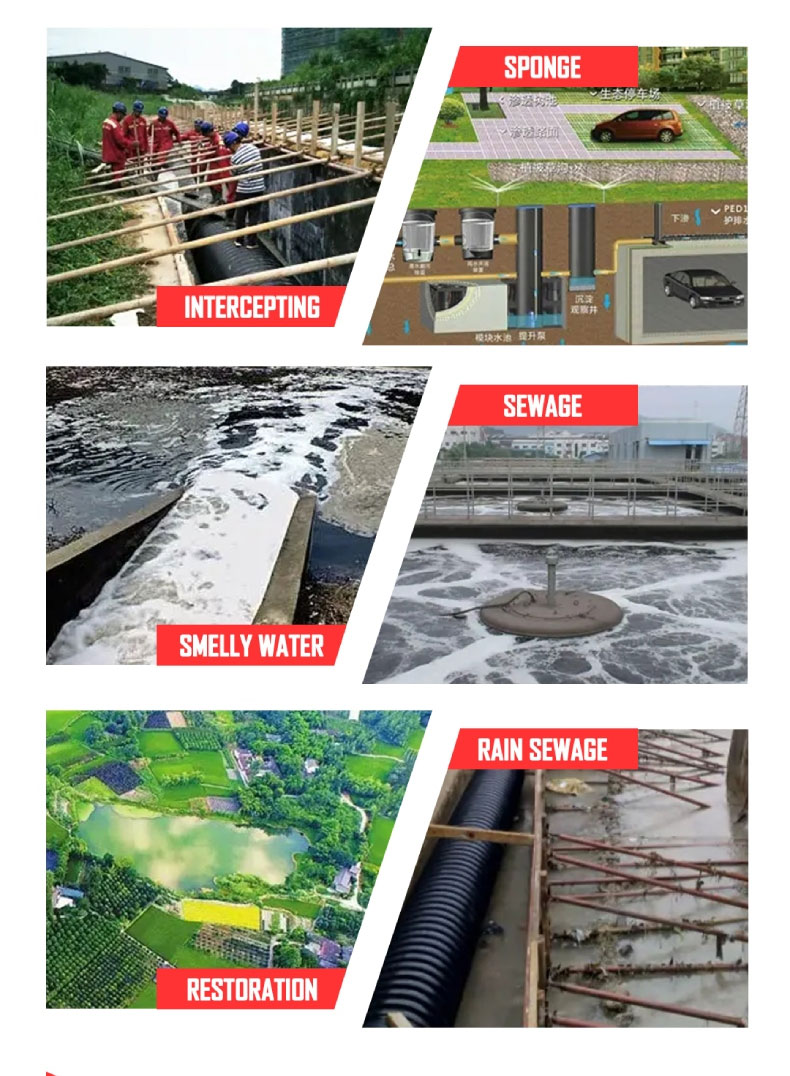

WQ submersible sewage pump is primarily used for municipal projects, residential, construction sites, commercial facilities, industrial discharges and sewage treatment to discharge sewage, waste water and rainwater containing solid matters and continuous fibers.
Construction Sites: Foundation Pit Drainage.
Municipal and Civil Use: Septic Tank, Domestic Wastewater Discharge from Residential Buildings, Shopping Malls, and Hospitals.
Sewage Treatment Plants: Wastewater Transfer and Recycling in Lifting Stations, Sewage Tanks, and Aeration Tanks.
Industrial Sector: Factory Wastewater and Process Water Discharge.
Flood Control and Drainage: Used as a Mobile Pump Truck.
| Flow Range | 10 m³/h - 4,000 m³/h |
| Lift Range | 7 m - 60 m |
| Power | 1.5 KW - 250 KW |
| Voltage | 220V 380V (Customized) |
| Pump casing | Cast steel, stainless steel, or coated cast iron |
| Inlet/Outlet Size | Customized |
| OEM/ODM | Accept |
Performance Data (Support various customized requirements)
|
Model |
Discharge (mm) |
Capacity (m3/h) |
Head(m) |
Power (kw) |
Speed (r/min) |
|
25WQ8-22-1.1 |
25 |
8 |
22 |
1.1 |
2825 |
|
32WQ12-15-1.1 |
32 |
12 |
15 |
1.1 |
2825 |
|
40WQ15-15-1.5 |
40 |
15 |
15 |
1.5 |
2840 |
|
40WQ15-30-2.2 |
40 |
15 |
30 |
2.2 |
2840 |
|
50WQ20-7-0.75 |
50 |
20 |
7 |
0.75 |
1390 |
|
50WQ10-10-0.75 |
50 |
10 |
10 |
0.75 |
1390 |
|
50WQ20-15-1.5 |
50 |
20 |
15 |
1.5 |
2840 |
|
50WQ15-25-2.2 |
50 |
15 |
25 |
2.2 |
2840 |
|
50WQ18-30-3 |
50 |
18 |
30 |
3 |
2880 |
|
50WQ25-32-5.5 |
50 |
25 |
32 |
5.5 |
2900 |
|
50WQ20-40-7.5 |
50 |
20 |
40 |
7.5 |
2900 |
|
65WQ25-15-2.2 |
65 |
25 |
15 |
2.2 |
2840 |
|
65WQ37-13-3 |
65 |
37 |
13 |
3 |
2880 |
|
65WQ25-30-4 |
65 |
25 |
30 |
4 |
2890 |
|
65WQ30-40-7.5 |
65 |
30 |
40 |
7.5 |
2900 |
|
65WQ35-50-11 |
65 |
35 |
50 |
11 |
2930 |
|
65WQ35-60-15 |
65 |
35 |
60 |
15 |
2930 |
|
80WQ40-7-2.2 |
80 |
40 |
7 |
2.2 |
1420 |
|
80WQ43-13-3 |
80 |
43 |
13 |
3 |
2880 |
|
80WQ40-15-4 |
80 |
40 |
15 |
4 |
2890 |
|
80WQ65-25-7.5 |
80 |
65 |
25 |
7.5 |
2900 |
|
100WQ80-10-4 |
100 |
80 |
10 |
4 |
1440 |
|
100WQ110-10-5.5 |
100 |
110 |
10 |
5.5 |
1440 |
|
100WQ100-15-7.5 |
100 |
100 |
15 |
7.5 |
1440 |
|
100WQ85-20-7.5 |
100 |
85 |
20 |
7.5 |
1440 |
|
100WQ100-25-11 |
100 |
100 |
25 |
11 |
1460 |
|
100WQ100-30-15 |
100 |
100 |
30 |
15 |
1460 |
|
100WQ100-35-18.5 |
100 |
100 |
35 |
18.5 |
1470 |
|
125WQ130-15-11 |
125 |
130 |
15 |
11 |
1460 |
|
125WQ130-20-15 |
125 |
130 |
20 |
15 |
1460 |
|
150WQ145-9-7.5 |
150 |
145 |
9 |
7.5 |
1440 |
|
150WQ180-15-15 |
150 |
180 |
15 |
15 |
1460 |
|
150WQ180-20-18.5 |
150 |
180 |
20 |
18.5 |
1470 |
|
150WQ180-25-22 |
150 |
180 |
25 |
22 |
1470 |
|
150WQ130-30-22 |
150 |
130 |
30 |
22 |
1470 |
|
150WQ180-30-30 |
150 |
180 |
30 |
30 |
1470 |
|
150WQ200-30-37 |
150 |
200 |
30 |
37 |
1480 |
|
200WQ300-7-11 |
200 |
300 |
7 |
11 |
970 |
|
WQ200-250-11-15 |
200 |
250 |
11 |
15 |
970 |
|
200WQ400-10-22 |
200 |
400 |
10 |
22 |
1470 |
|
200WQ400-13-30 |
200 |
400 |
13 |
30 |
1470 |
|
200WQ250-15-18.5 |
200 |
250 |
15 |
18.5 |
1470 |
|
200WQ300-15-22 |
200 |
300 |
15 |
22 |
1470 |
|
200WQ250-22-30 |
200 |
250 |
22 |
30 |
1470 |
|
200WQ350-25-37 |
200 |
350 |
25 |
37 |
1980 |
|
200WQ400-30-55 |
200 |
400 |
30 |
55 |
1480 |
|
250WQ600-9-30 |
250 |
600 |
9 |
30 |
980 |
|
250WQ600-12-37 |
250 |
600 |
12 |
37 |
1480 |
|
250WQ600-15-45 |
250 |
600 |
15 |
45 |
1480 |
|
250WQ600-20-55 |
250 |
600 |
20 |
55 |
1480 |
|
250WQ600-25-75 |
250 |
600 |
25 |
75 |
1480 |
|
300WQ800-12-45 |
300 |
800 |
12 |
45 |
980 |
|
300WQ500-15-45 |
300 |
500 |
15 |
45 |
980 |
|
300WQ800-15-55 |
300 |
800 |
15 |
55 |
980 |
|
300WQ600-20-55 |
300 |
600 |
20 |
55 |
980 |
|
300WQ800-20-75 |
300 |
800 |
20 |
75 |
980 |
|
300WQ950-20-90 |
300 |
950 |
20 |
90 |
980 |
|
300WQ1000-25-110 |
300 |
1000 |
25 |
110 |
980 |
|
350WQ1100-10-55 |
350 |
1100 |
10 |
55 |
980 |
|
350WQ1500-15-90 |
350 |
1500 |
15 |
90 |
980 |
|
350WQ1200-18-90 |
350 |
1200 |
18 |
90 |
980 |
|
350WQ1100-28-132 |
350 |
1100 |
28 |
132 |
740 |
|
350WQ1000-36-160 |
350 |
1000 |
36 |
160 |
740 |
|
400WQ1500-10-75 |
400 |
1500 |
10 |
75 |
980 |
|
400WQ2000-15-132 |
400 |
2000 |
15 |
132 |
740 |
|
400WQ1700-22-160 |
400 |
1700 |
22 |
160 |
740 |
|
400WQ1500-26-160 |
400 |
1500 |
26 |
160 |
740 |
|
400WQ1700-30-200 |
400 |
1700 |
30 |
200 |
740 |
|
400WQ1800-32-250 |
400 |
1800 |
32 |
250 |
740 |
|
500WQ2500-10-110 |
500 |
2500 |
10 |
110 |
740 |
|
500WQ2600-15-160 |
500 |
2600 |
15 |
160 |
740 |
|
500WQ2400-22-220 |
500 |
2400 |
22 |
220 |
740 |
|
500WQ2600-24-250 |
500 |
2600 |
24 |
250 |
740 |
Please contact us for more details about sewage pump cost and how to it works.
Municipal Sewage and Drainage Systems
Reliably handling the collection and transport of domestic wastewater across urban networks.
Industrial Raw Water and Wastewater Systems
Engineered to transfer both incoming process water and outgoing effluent in demanding industrial environments.
Commercial and Residential Complex Sewage Systems
Providing efficient and quiet wastewater removal for buildings, estates, and mixed-use developments.
Sewage Treatment Plants Drainage System
Ensuring continuous internal flow and lifting within treatment facilities for uninterrupted operation.
Stormwater Pumping and Urban Flood Control
Rapidly moving rainwater and preventing waterlogging to protect infrastructure and public safety.
Request a Free Tailored Quote
Quick response: share your needs with us please, we'll contact your in very short time.
Related Products
CUSTOMIZED DISPLAY
Customized Pumping Solution For Your ProjectNot Your Average Manufacturer
We tailor solutions to your specific needs based on flow rate, head, and site conditions.
Not sure what you need? Our experts team will help you find the right products.
Bespoke Design
Engineered to your project's needs.
Flexible Configuration
Choice of materials, pumps, and control system.

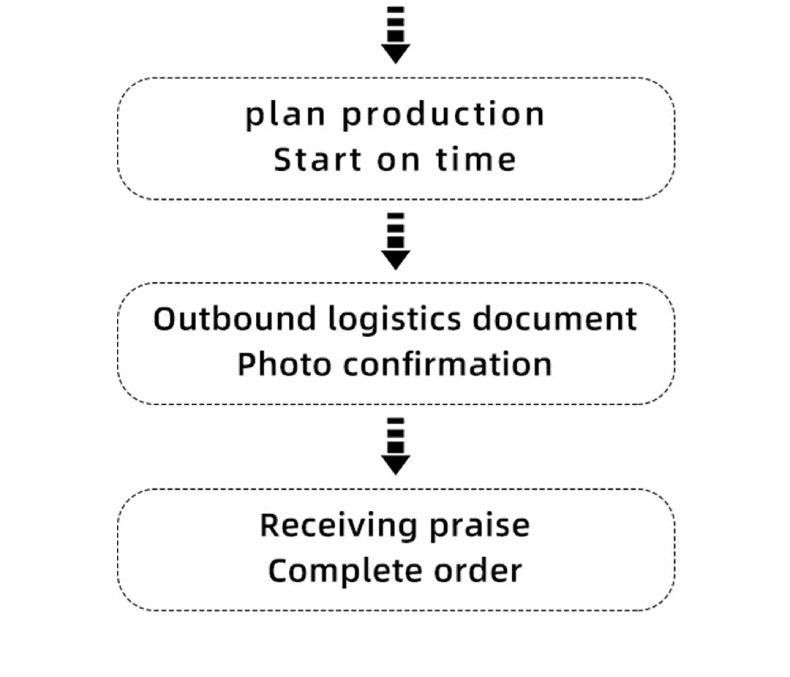

Product Production Cycle Management
