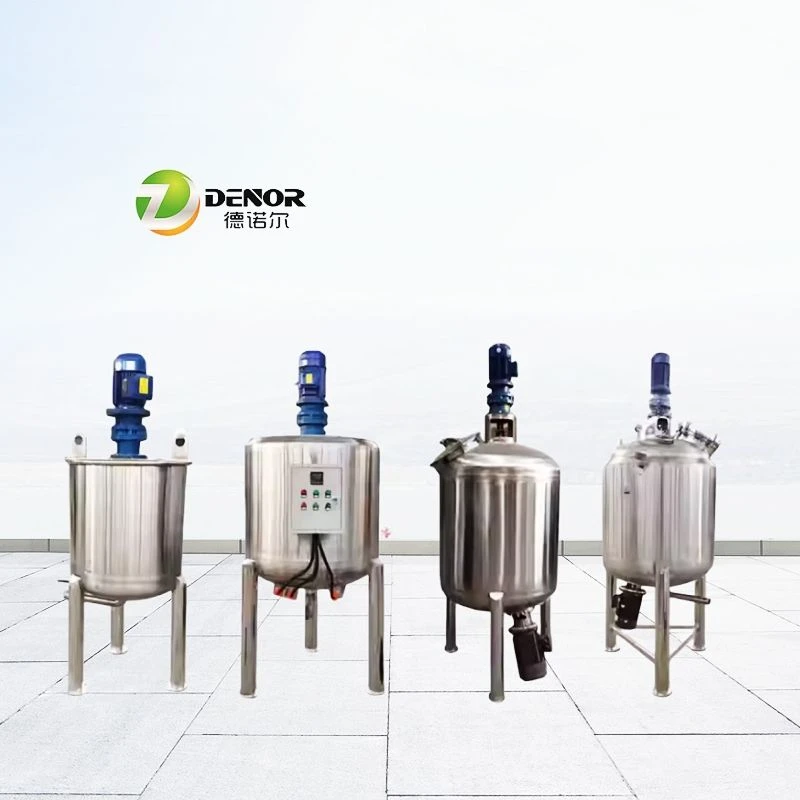

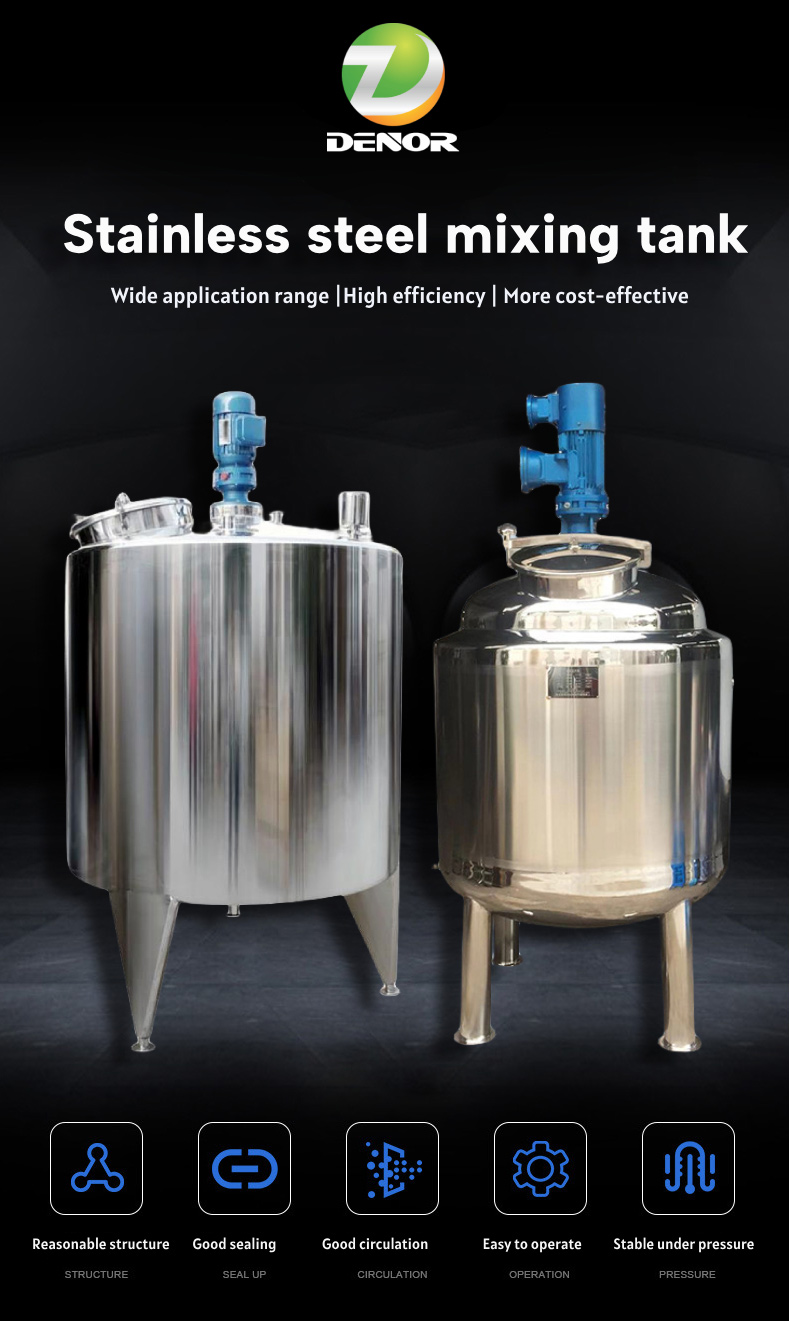

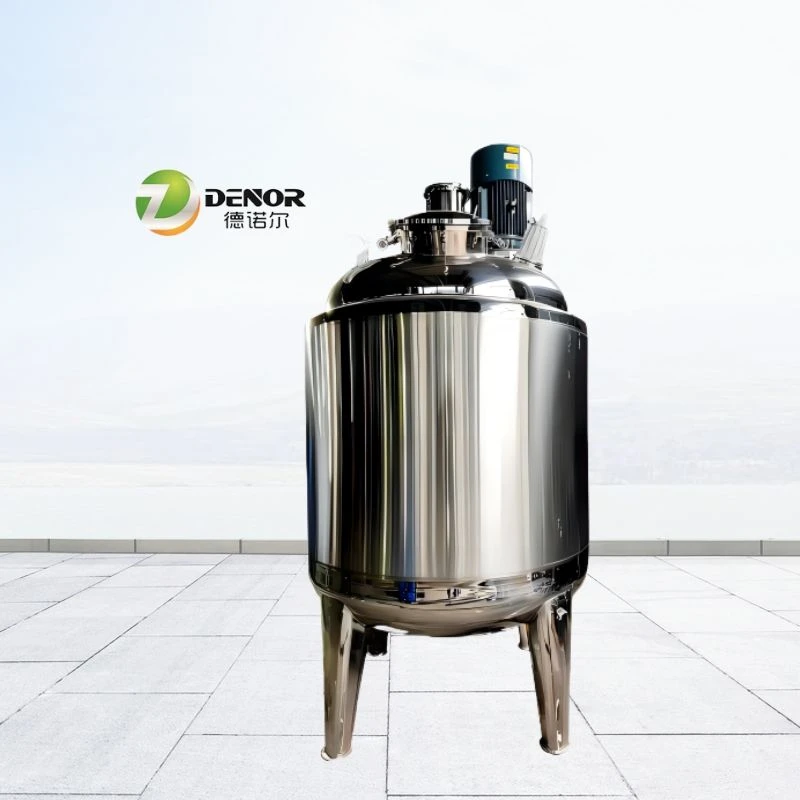

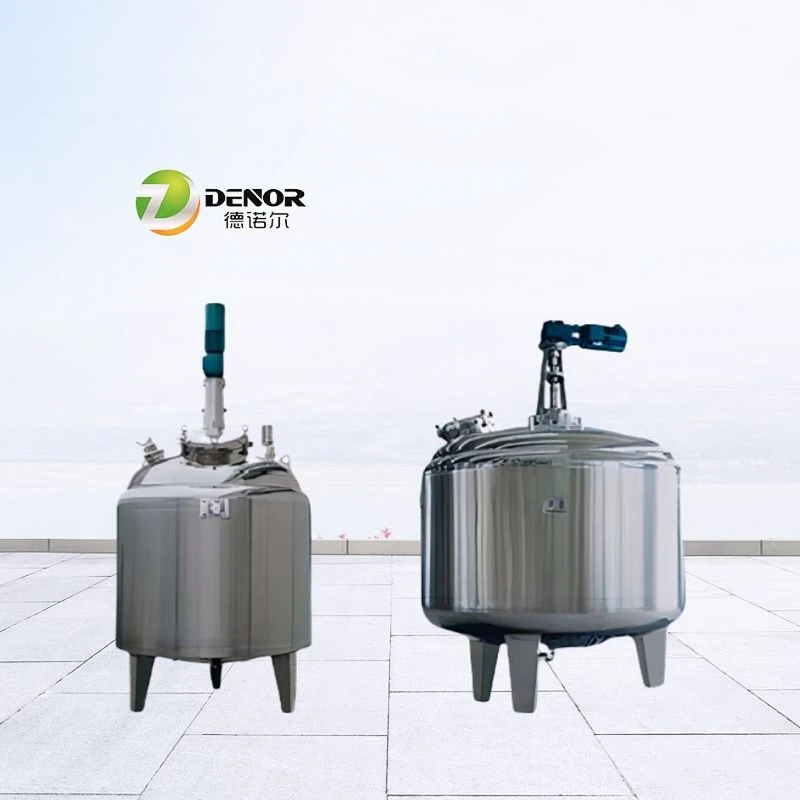

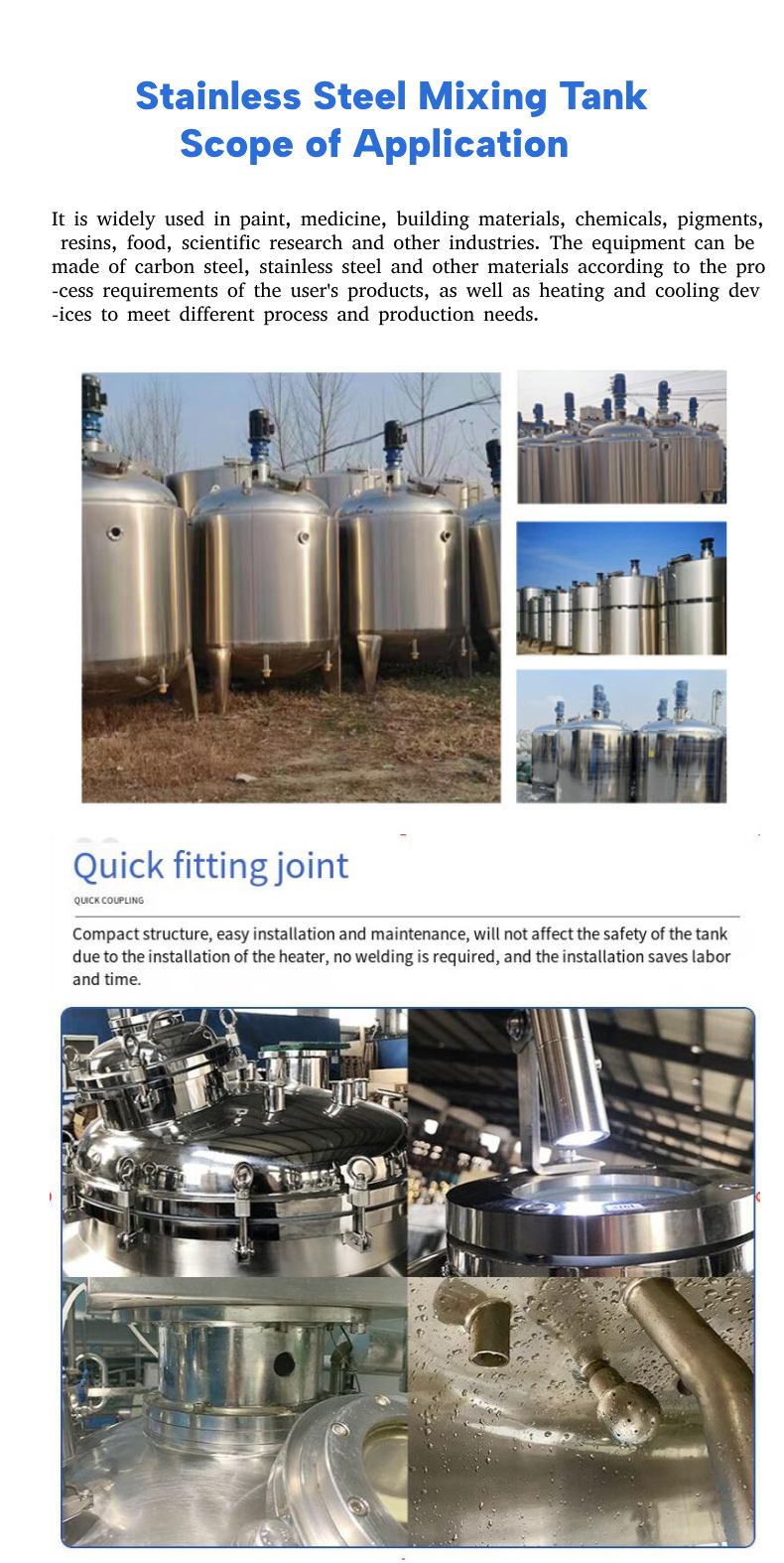

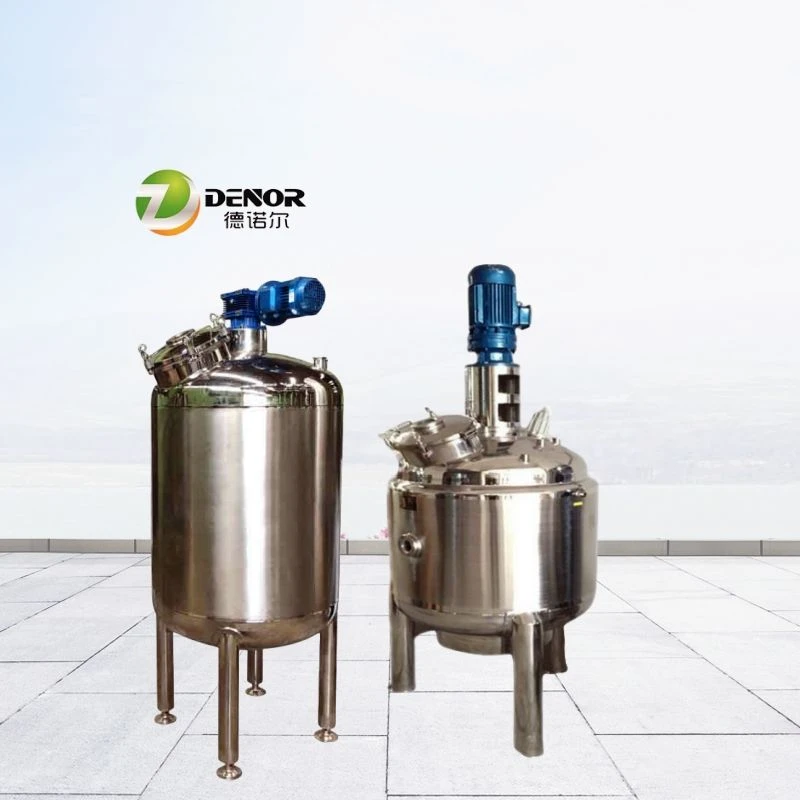

Denor Stainless steel mixing tank is widely used in such industries of coatings, pharmaceuticals, building materials, chemicals, pigments, resins, food, scientific research and etc. The equipment can be made of stainless steel 304L or 316L according to requirements of users' products, also heating and cooling devices are optional to meet different needs of production and process. Jacket can be dimple type or coil type. The equipment has features of reasonable structure design, advanced technology and durable, simple operation and convenient use. It is an ideal processing equipment with less investment, quick operation and high profit.
Designed specifically to meet your project requirements - exactly like this. Each unit is customized according to the following parameters: volume size, material characteristics, stirring speed, configuration process, and working conditions.
Are you ready to specify a customized stainless steel mixing tank for your project?
If you would like to learn more about product information or price details, please send an email to denor@denorgroup.com or leave a message via WhatsApp so that we can provide you with assistance promptly.
The advantages of the stainless steel mixing tank
Seamless welding process
Easy cleaning with no residue
Variable-frequency stirring system
Mix thoroughly without any sedimentation
Motor explosion-proof option available
High degree of automation
Main applications
Food and dairy industry
Alcohol and beverage manufacturing industry
Personal care and cleaning products industry
Biological medicine field
Environmental protection and water treatment

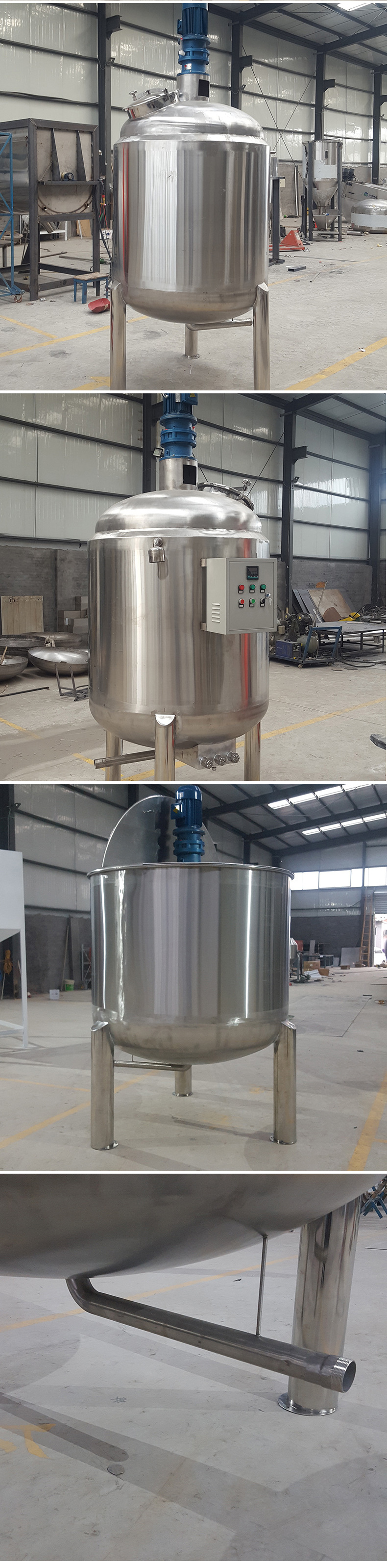

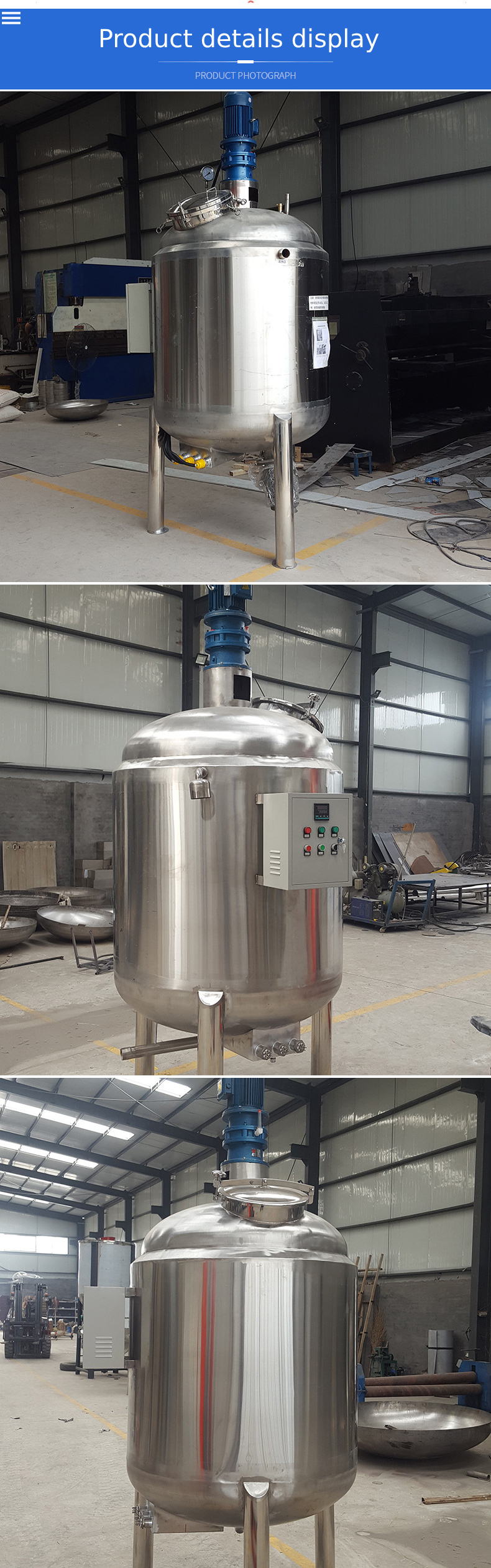

Product Details
Technical Data
| Material | 304/316 stainless steel |
| Motor type | DC motor |
| Main shaft speed | 150 - 3600 rpm |
| Voltage | 220V/380V |
| Function | Mixed product |
| Advantages | Automatic, multi-functional |
| Size specification | Customizable |
| Core components | Motor, gear, pressure vessel, PLC |
| Warranty | 1 year |
Features：
*Material of the tank: SS304, SS316L, 2205, Ti etc
*Capacity from 500L to 30000L
*Customized Mixing System: Our customized mixing solutions are extremely versatile. There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, Dispenser , High shear emulsifier, magnetic mixer etc.
*The jacketed mixing tank can be with full jacket or Dimple jacket or coils. Heating method can be steam/electric heating;
*The inside surface finish of stainless steel mixing tank is Mirror polished, Ra<0.4um. The welding is polished to ground smooth.
*It can be equipped with temperature gauge, level gauge etc according to client’s demand.

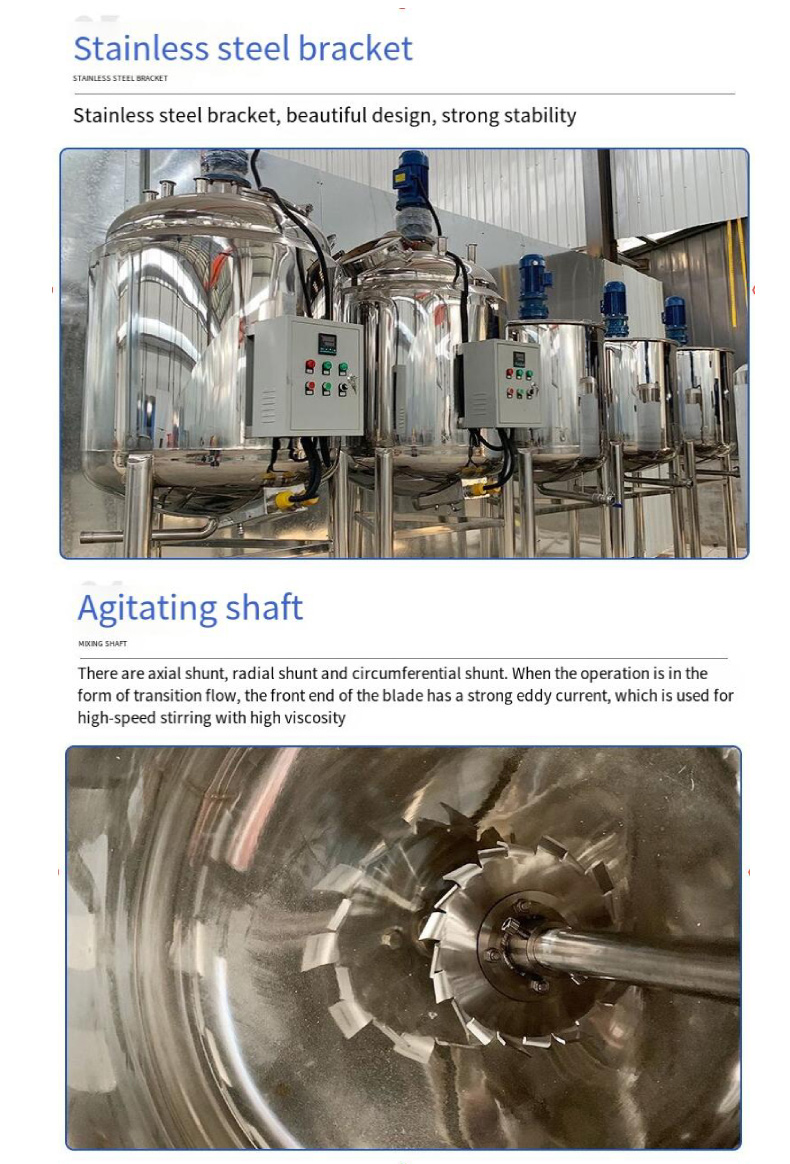

Have different kinds of agitators: ( Other Stirrer can be customized )
Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc, It can be equipped with scraper when the material is thick.
Top homogenizer, speed max 2900rpm for small vessel. this kind of agitator can be used for high viscosity material, such as suspension, oil, fat emulsification, cream , paint etc.
Bottom homogenizer, speed max 2900rpm. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
