Heavy Duty Gravel Sand Pump for Large Particles

Sand Gravel Pump

Sand Gravel Pump is a type of centrifugal pump designed specifically for handling abrasive and corrosive slurries with high concentrations of solids in mine. It has superior performance than common pumps in dredging, sand mining, barge loading and mineral processing etc.

Horizontal Sand Gravel Pump is capable of handling large particles at consistently high efficiency, resulting in lower costs.

Product Description

Technical Data

Applications

Heavy Duty Gravel Sand Pump

Engineered for Extreme Abrasion in Dredging, Mining & Aggregate Processing

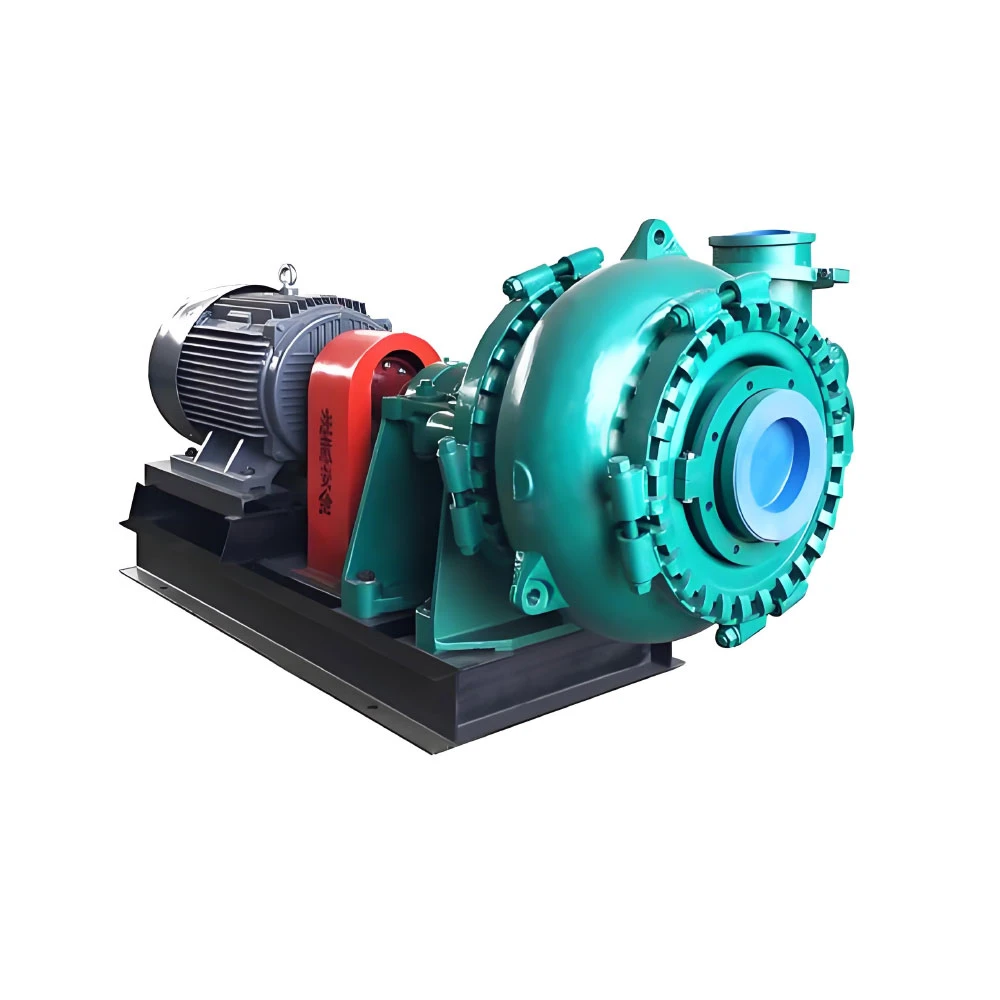

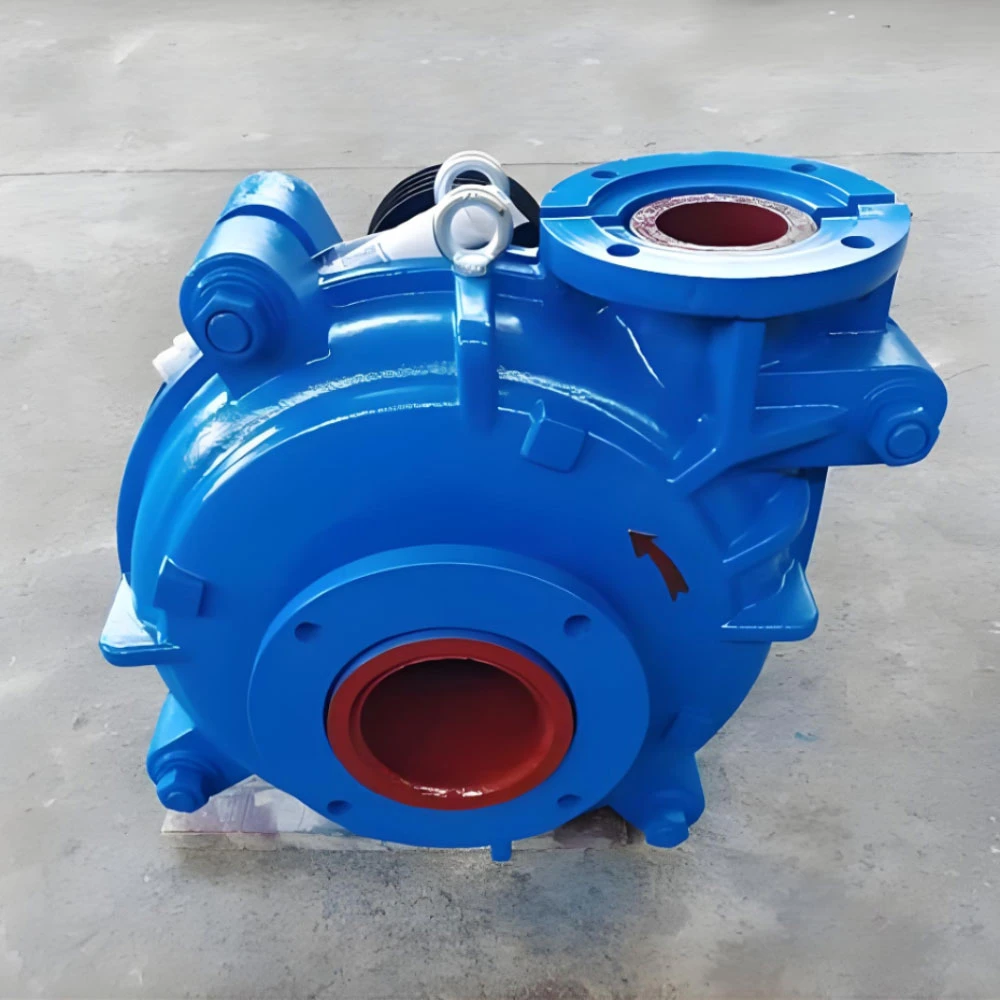

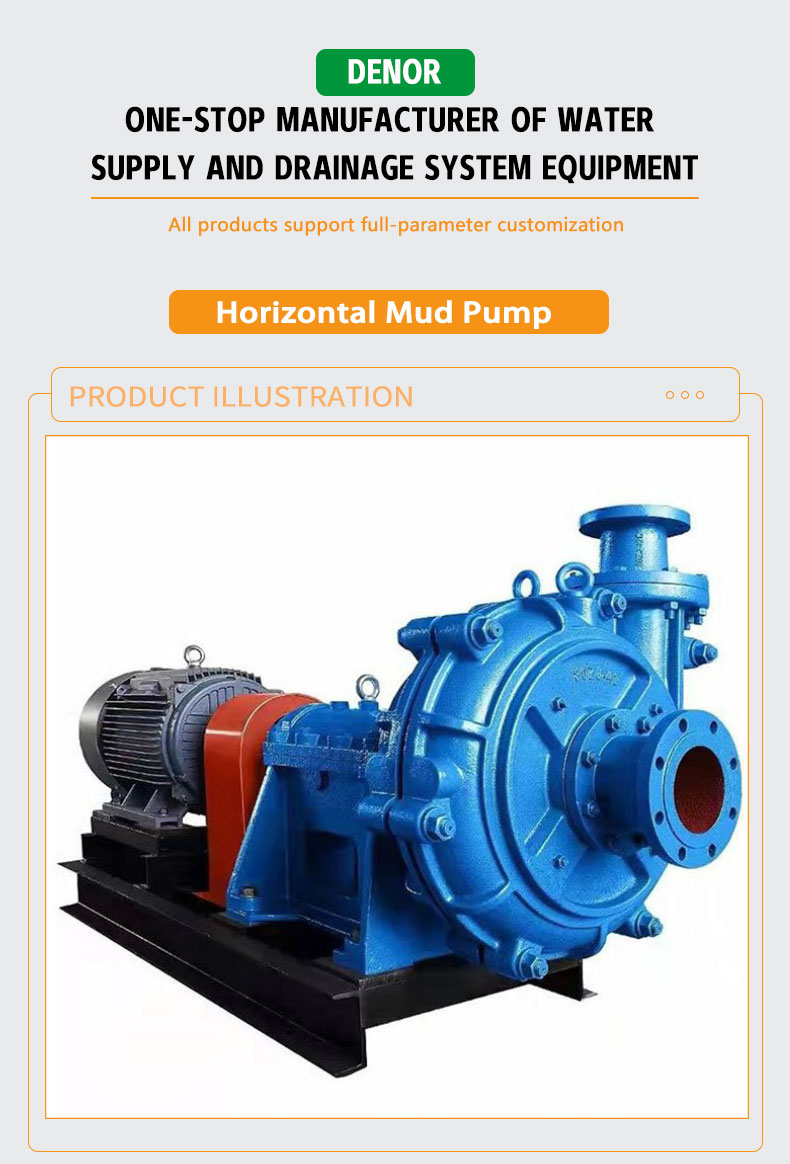

The Gravel Sand Pump is horizontal, heavy-duty centrifugal pump with wide channel to transfer sands,slurries or gravels with big particle size. Engineered for extreme abrasion resistance and robust construction, these pumps serve as the core equipment in dredging, mining, and aggregate processing operations.

Built with the most durability, our pump is constructed using high-quality materials, ensuring long-lasting performance even in the most challenging environments. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. And the casing is designed with a large volume internal profile to reduce associated velocities which prolong component life. With its robust design, it can maintain optimal efficiency under the worst conditions.

Equipped with advanced features, our Sand Gravel Pump offers exceptional performance and low maintenance requirements. Its innovative impeller design provides maximum suction, allowing for efficiently handling large volumes of sand and gravel. Furthermore, the pump's wear-resistant components significantly reduce downtime and operational costs.

Design Features:

Horizontal, Cantilevered, Single casing, Centrifugal Gravel sand pump.
The wetted parts are made of Ni-hard and Ultrahigh-chrome alloys with super strong abrasion resistance.
The discharge direction of pump can be oriented in any angle of 360°.
Packing seal, Expeller seal and Mechanical seal are available as per different application.
Excellent NPSH performance.
Simple and reliable construction, Easy to disassembly, assembly and maintain.

Why Choose Our Gravel Sand Pump?

Extreme Abrasion Resistance
Robust & Long-Lasting Construction
High Efficiency & Low Maintenance

As a professional sand gravel pump manufacturer in China, we combine decades of engineering experience with robust material science to deliver pumps that perform reliably in the toughest environments. Our pumps are built to minimize downtime, reduce total cost of ownership, and keep your operations running.

Need a pump for your specific application? Contact our team today for expert selection support and a customized quote.

Model	Capacity Q(m3/h)	Head (m)	Speed n(r/min)	NPSHr (m)	Efficieney η(%)	Weight (kg)	Overall dimensions L×W×H (mm)	Dia.of pump (mm)
Model	Capacity Q(m3/h)	Head (m)	Speed n(r/min)	NPSHr (m)	Efficieney η(%)	Weight (kg)	Overall dimensions L×W×H (mm)	Inlet	Outlet
6/4D-G	36.00 108.00 180.00	"9.00 8.20 7.00"	600	2	55	460	1006×500×673	150	100
6/4D-G	50.40 122.40 187.20	12.50 12.00 10.00	700	2.2	54	460	1006×500×673	150	100
6/4D-G	57.60 129.60 194.40	16.40 15.50 14.00	800	2.5	55	460	1006×500×673	150	100
6/4D-G	72.00 144.00 208.80	20.50 20.00 18.00	900	2.7	55	460	1006×500×673	150	100
6/4D-G	79.20 151.20 216.00	24.00 23.50 22.00	980	2.8	58	460	1006×500×673	150	100
6/4D-G	79.20 151.20 216.00	25.00 24.50 23.00	1000	2.5	57	460	1006×500×673	150	100
6/4D-G	93.60 162.00 230.40	31.00 30.00 28.00	1100	2.7	56	460	1006×500×673	150	100
6/4D-G	100.80 165.60 237.60	36.80 36.00 34.00	1200	3	55	460	1006×500×673	150	100
6/4D-G	108.00 180.00 244.80	44.00 43.00 40.00	1300	3.2	53	460	1006×500×673	150	100
6/4D-G	72.00 129.60 187.20	51.00 50.60 49.50	1400	3.5	52	460	1006×500×673	150	100
8/6E-G	"133.20 252 360"	"15 13 10"	800	2.5	60	1120	1286×550×862	200	150
8/6E-G	"133.2 288 396"	"19 18.5 13.5"	900	2.5	60	1120	1286×550×862	200	150
8/6E-G	"136.8 288 414"	"22.5 19.5 16"	980	2.7	60	1120	1286×550×862	200	150
8/6E-G	"144 288 424.8"	"24 20.90 16.50"	1000	3	59	1120	1286×550×862	200	150
8/6E-G	"144 324 468"	"30 25.5 20.5"	1100	3	58	1120	1286×550×862	200	150
8/6E-G	"165.6 342 504"	"36 30.9 24.3"	1200	3	57	1120	1286×550×862	200	150
8/6E-G	"187.2 378 540"	"42 36 29"	1300	3.2	57	1120	1286×550×862	200	150
8/6E-G	"216 396 576"	"48.2 42 33.5"	1400	3.5	57	1120	1286×550×862	200	150
10/8F-G	216.00 652.80 489.60	12.50 12.00 10.80	500	3	60	2250	1591×857×1143	250	200
10/8F-G	244.80 432.00 594.00	18.00 17.10 15.50	600	3	60	2250	1591×857×1143	250	200
10/8F-G	254.00 434.60 635.00	21.40 20.40 18.40	650	3	60	2250	1591×857×1143	250	200
10/8F-G	237.60 468.00 684.00	21.80 23.70 21.40	700	3	60	2250	1591×857×1143	250	200
10/8F-G	306.00 540.00 792.00	32.00 31.00 28.00	800	2.8	59	2250	1591×857×1143	250	200
10/8F-G	329.80 578.00 833.00	36.10 35.00 31.00	850	3.5	61	2250	1591×857×1143	250	200
10/8F-G	349.20 612.00 882.00	40.50 39.20 34.80	900	3.7	60	2250	1591x857×1143	250	200
10/8F-G	382.20 650.00 930.60	44.20 42.40 37.70	940	6	63	2250	1591×857×1143	250	200
10/8S-G	216.00 352.80 489.60	12.50 12.00 10.80	500	3	60	2285	1720×950×983	250	200
10/8S-G	254.00 434.60 635.00	21.40 20.40 18.40	650	3	60	2285	1720×950×983	250	200

Dredging and Marine Operations

Sediment removal and channel deepening. Extraction and transport of sand from riverbeds, lakes, or oceans.

Aggregate and Mining Industries

Processing and transferring raw materials through washing and classification systems. Coarse residue disposal in mining operations, etc.

Construction and Industrial

Slurry removal from tunnel boring machines. Handling abrasive waste streams and settling pond maintenance, etc.
