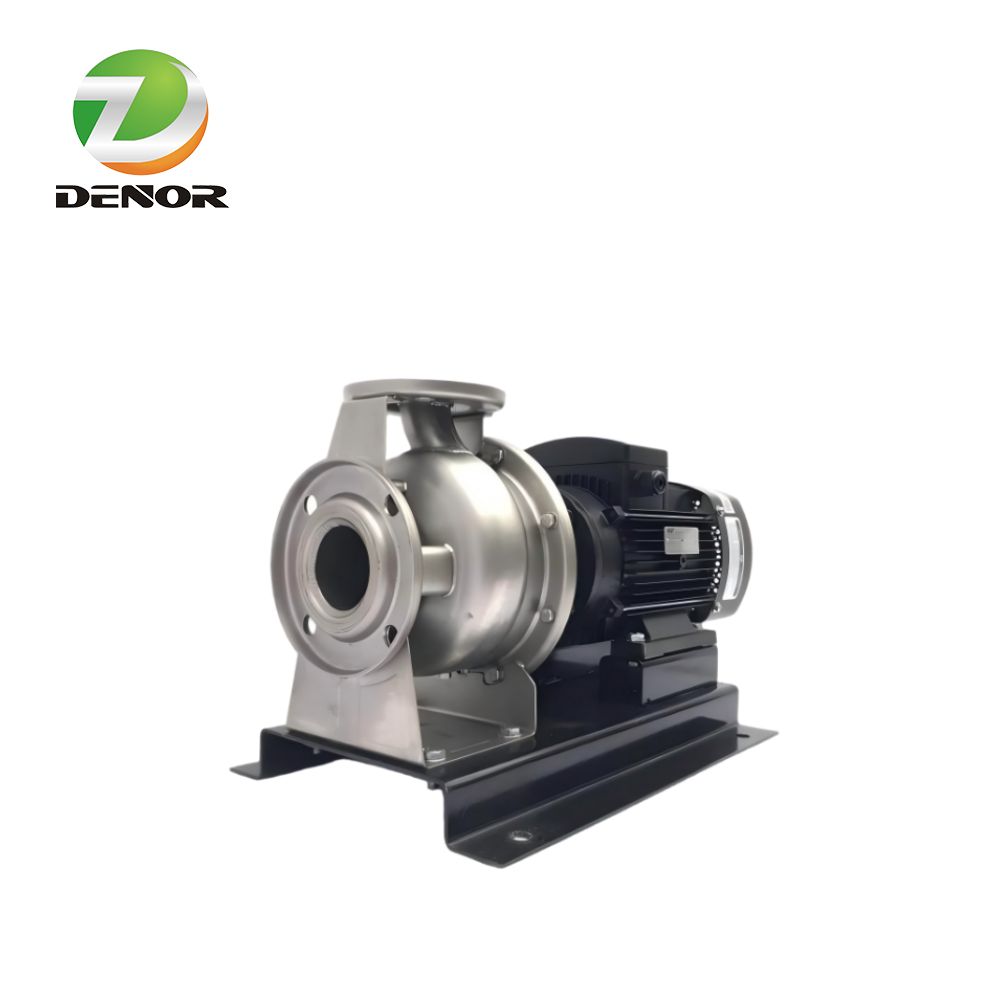

End Suction Centrifugal pump

Looking for a horizontal single-stage centrifugal pump solution that combines high reliability with consistently strong performance?

Select Our Horizontal Stainless Steel End Suction Centrifugal Pumps. Choose the efficient and durable solution for your fluid transfer needs. These single-stage centrifugal pumps combine robust stainless steel construction with proven hydraulic performance for long-lasting service.

An end suction single stage centrifugal pump (also called horizontal stainless steel single-stage pump) is the most common and widely used configuration of centrifugal pumps. Characterized by its simple yet robust design, this pump features a single impeller and a horizontal shaft, with fluid entering axially at the "suction end" of the impeller and discharging radially from the volute casing.

Engineered for durability and efficiency, our pumps deliver smooth, continuous operation with minimal maintenance — ideal for demanding applications across water management, industrial processing, and building services.

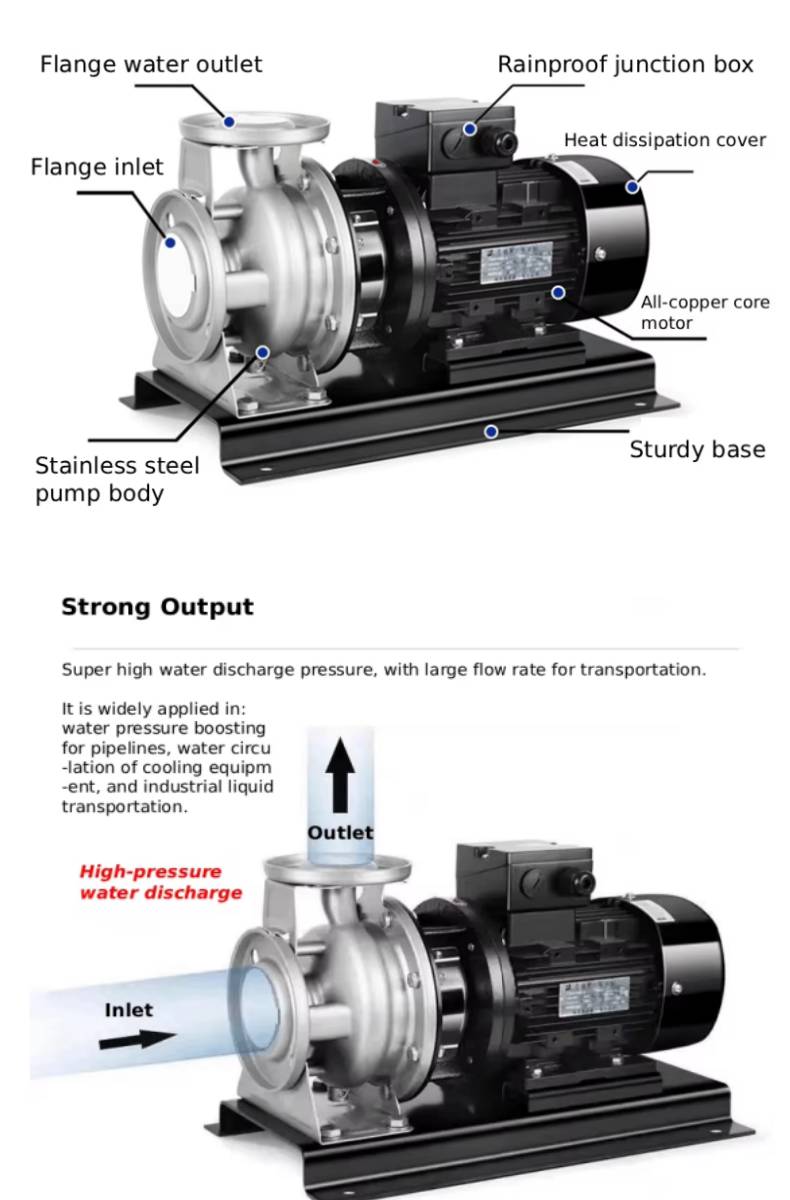

Key Features & Construction

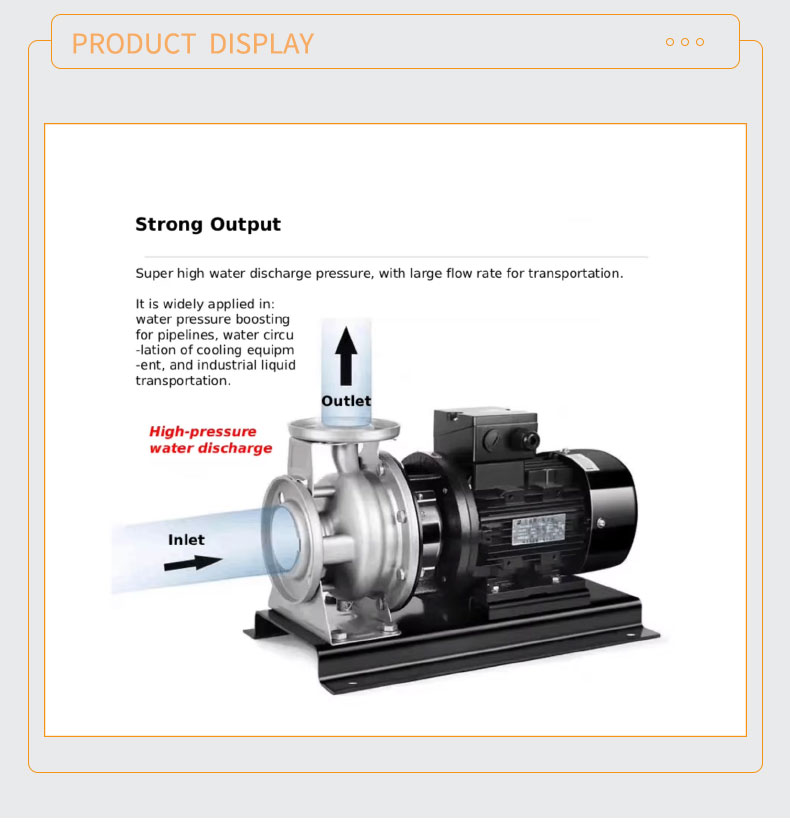

• End Suction Design: The fluid inlet (suction nozzle) is aligned with the axis of the impeller shaft, located at the "end" of the pump casing opposite the driver. The discharge nozzle is typically positioned perpendicularly (at 90°) on the top or side of the volute casing.
• Single Impeller: It utilizes one impeller to add energy to the fluid, making it suitable for generating low to moderate heads (pressures).
• Casing Types: Most commonly a volute casing, which efficiently converts the fluid's kinetic energy (velocity) from the impeller into pressure energy.
• Overhung Impeller: The impeller is mounted on the overhung end of the shaft, supported by bearings on the opposite side.
• Shaft Orientation: Typically designed with a horizontal shaft, facilitating easy coupling to standard electric motors.

The end suction single stage centrifugal pump represents an optimal balance of simplicity, efficiency, and versatility. Tailored for various industrial applications, these pumps offer seamless integration and exceptional value.
