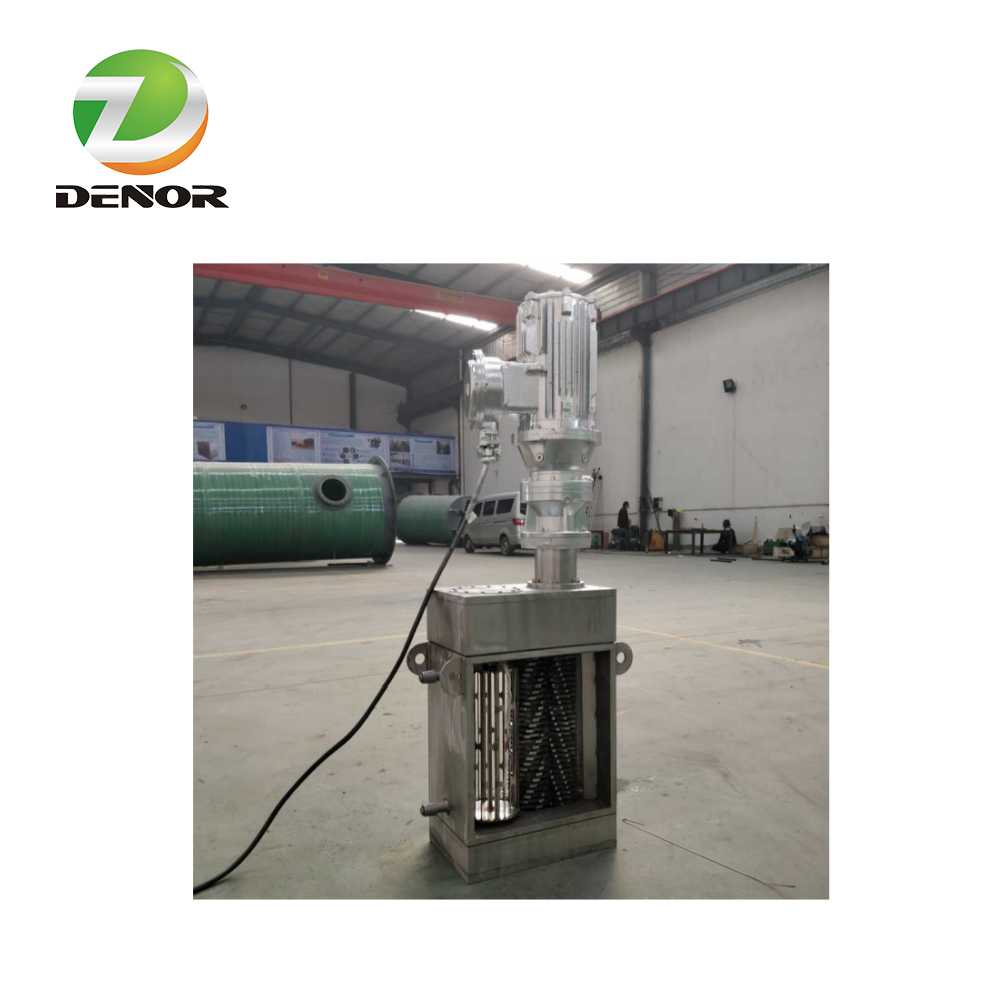

The Denor single drum sewage grinder integrates a rotating drum screen with a powerful grinding mechanism, engineered to handle high flow rates. It effectively reduces tough solids into manageable particle sizes, ensuring reliable and efficient wastewater processing.
Denor offers a wide range of sewage grinders engineered for superior performance, reliability, and easy maintenance
Main Benefits of the Sewage Grinders
Compact, efficient design with custom frames
Single-shafted and high-flow screening drums
Amphibious motor design for versatile use
Automatic coupling installation for easy maintenance
Optional PLC intelligent control system
Low investment and operating costs
Main Applications
Water inlet channel(well)
Sewage lift projects
Municipal sewage systems
Industrial / Commercial / Residential areas where tough solids need to be ground up
Product Description
Technical Data
Applications
DENOR Single Drum Sewage Grinder: Precision-Engineered Solids Reduction for Open Channels
The Intelligent Sewage / Wastewater Grinder: Capture. Cut. Protect.
The DENOR Single Drum Sewage Grinder is more than just a grinder—it's a screening and grinding hybrid. Designed for applications where solids loading varies, it combines a durable rotating drum screen with powerful dual-shaft cutters to ensure nothing harmful reaches your downstream pumps.
Unlike traditional units, the single drum design maximizes solids capture while preventing material wrap-around. The result? Uninterrupted flow and reliable protection.
Engineered for Flexibility
Every channel is different. That's why our Single Drum Grinder features a customizable frame, allowing for:
Working Principle: Four Steps to Clean Flow

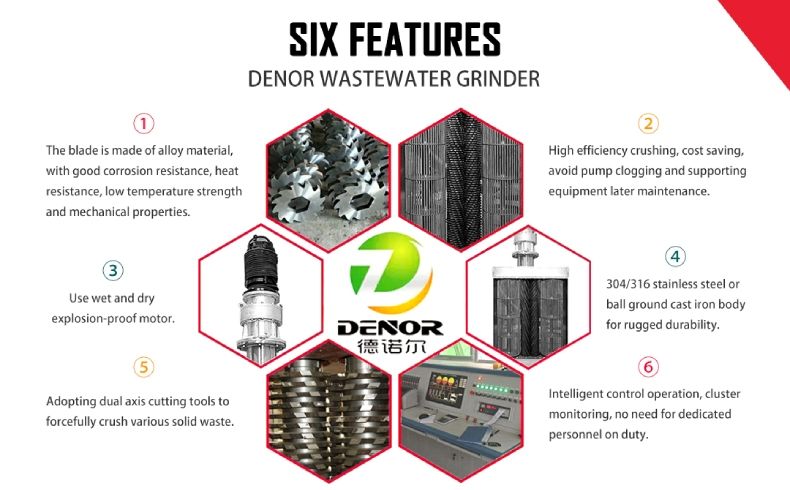

Technical Advantages
| Feature | Benefit |
| Single Drum + Dual Cutters | Maximizes solids capture; prevents rag wrapping. |
| Custom Frame | Installs in any channel configuration. |
| Low-Speed/High Torque | Handles tough solids with minimal wear. |
| Fine Output | Reduces particles consistently to protect sensitive equipment. |
| Easy Maintenance | Designed for serviceability without removal. |
Denor offers a wide range of sewage grinders engineered for superior performance, reliability, and easy maintenance.
Wastewater Grinder provide a dependable solution for processing diverse waste and contaminants in wastewater. The channel wastewater grinder is widely used in open channel (well), wastewater lift pump stations, municipal sewage systems, industrial facilities and commercial buildings and residential complexes sewage pipe network engineering, etc.
Why Choose DENOR?
Need a sewage grinder that fits your exact channel dimensions? Contact DENOR experts for a free custom solution.
Materials of construction
| Motor | Customized |
| Reducer | Planet gear reducer |
| Rotating Drum Screen | Stainless steel |
| Cutters and Spacers | Heat-treated alloy steel |
| Shafts | Heat-treated alloy steel |
| Housings | Ductile cast iron ASTMA 536 |
| Mechanical Seals | Tungsten carbide faces |
| Channel Frame | Carbon steel or stainless steel (304, 316) |

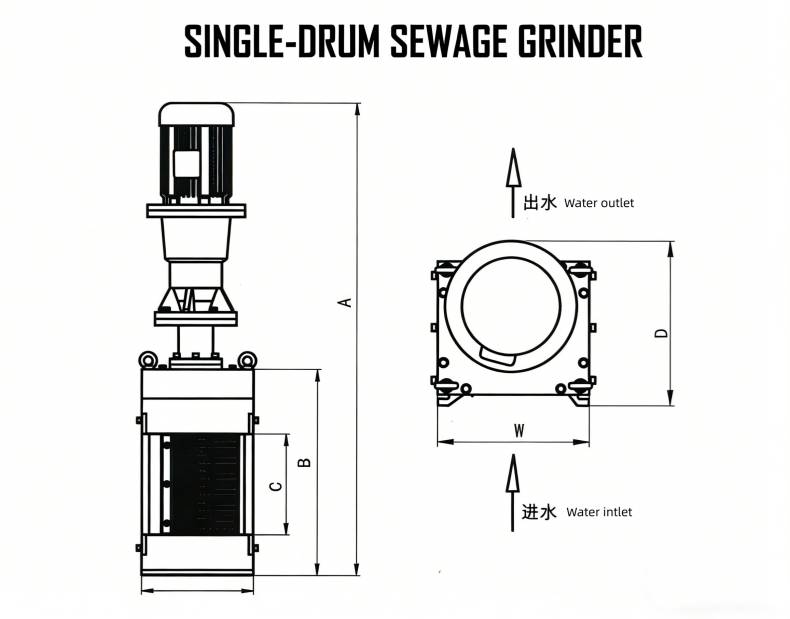

Single drum channel type wastewater grinder models (Supports on-demand customization).
|
Model |
Flow (m³/h) |
Size(mm) |
Width |
Weight(kg) |
|||
|
A |
B |
C |
D |
||||
|
DNRF-D600 |
600 |
1550 |
782 |
559 |
405 |
500 |
486 |
|
DNRF-D800 |
800 |
1728 |
960 |
737 |
405 |
500 |
526 |
|
DNRF-D1100 |
1100 |
1906 |
1138 |
912 |
405 |
500 |
572 |

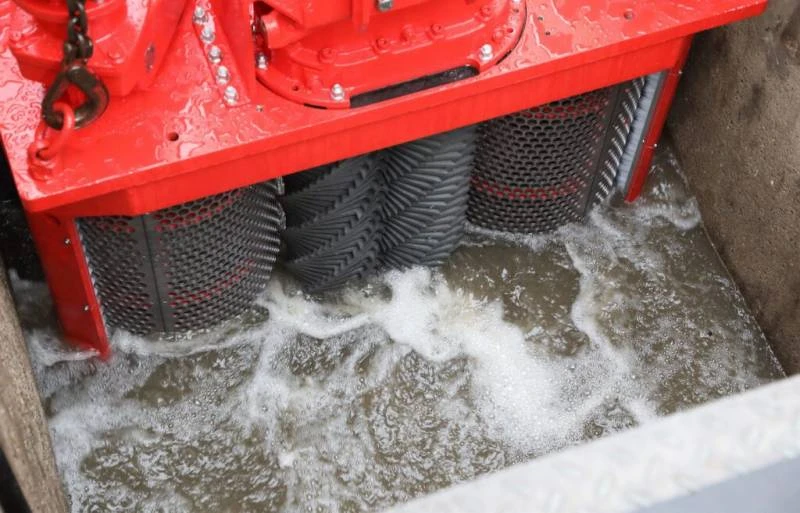

Water Inlet Channel (well)
Sewage grinders can pulverize suspended solids and floating debris in water channels into particles measuring 6mm to 12mm.
Sewage Lift Station Projects
Sewage grinders can be installed at integrated lift pump station to reduce the size of solid waste, protect pumps, and ensure efficient wastewater transport.

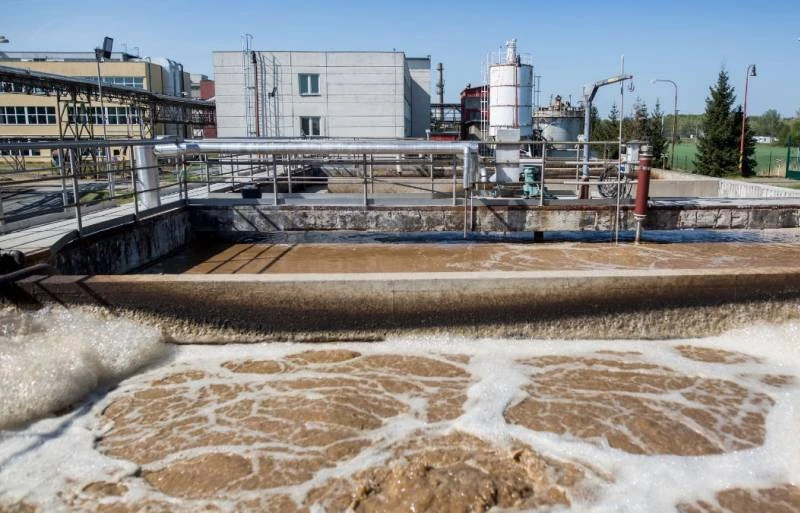

Municipal Sewage Systems
Sewage grinders are used in municipal sewage pipeline systems to reduce the volume of solid waste, prevent pipe blockages, and protect pumps and other equipment during wastewater treatment.

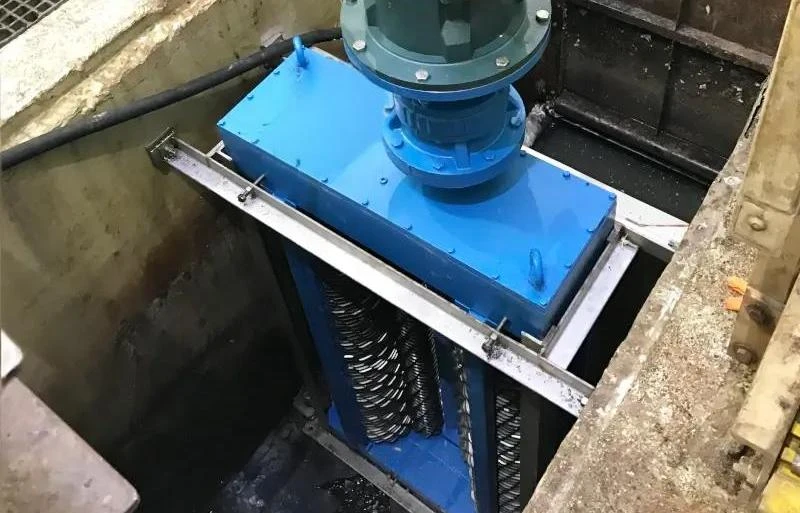

Industrial / Commercial / Residential Areas
Industrial, commercial, and residential areas all generate various types of solid waste. Sewage grinders can help manage this waste and maintain the smooth operation of the sewer system.
