The inline channel sewage grinder connects with pipelines through flanges to grind various kinds of solid waste, suspended matter and and long and thin fibers in pipelines such as clothing, plastic, wood, bottle into small particles.
Ensure operational continuity with our Denor in-line channel sewage grinder. The inline sewage grinder supports customization, is entirely manufactured in our factory, and offers fast delivery.
Main Benefits of In-line Channel Sewage Grinder
Compact, efficient design with custom multiple flange options
Improves process efficiency and prevents damage to equipment
Easy and flexibility of installation
Optional PLC intelligent control system
Low investment and operating costs
Main Applications
Municipal sewer networks
Industrial wastewater pipe network
Commercial & Service industries
Construction & Infrastructure
Product Description
Technical Data
Applications
Materials of construction
| Motor | Customized, multiple power options |
| Reducer | Planet gear reducer |
| Rotating Drum Screen | Stainless steel |
| Cutters and Spacers | Heat-treated alloy steel |
| Shafts | Heat-treated alloy steel |
| Housings | Ductile cast iron ASTMA 536 |
| Mechanical Seals | Tungsten carbide faces |
| Channel Frame | Carbon steel or stainless steel (304, 316) |

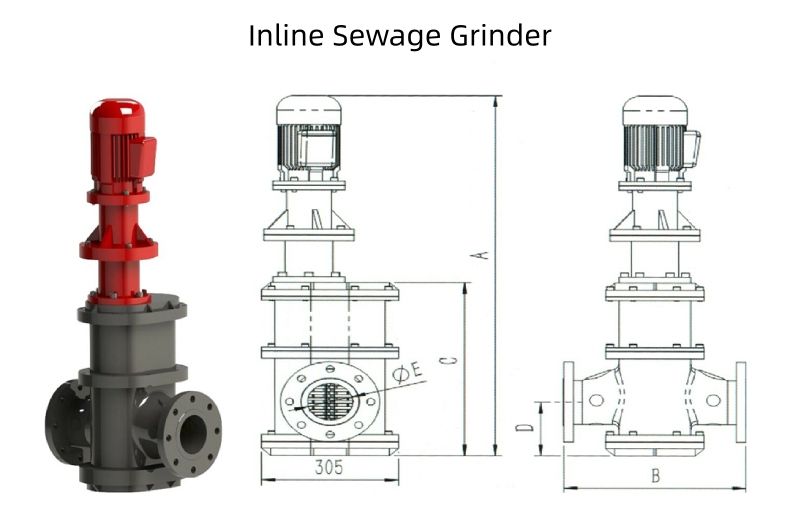

Model Selection
|
Model |
Flow (m³/h) |
Φ(mm) |
Size(mm) |
Weight(kg) |
||||
|
A |
B |
C |
D |
E |
||||
|
DNRF-P90 |
90 |
100 |
1190 |
410 |
478 |
148 |
100 |
185 |
|
DNRF-P140 |
140 |
150 |
1240 |
460 |
516 |
173 |
150 |
200 |
|
DNRF-P185 |
185 |
200 |
1296 |
460 |
556 |
198 |
200 |
217 |
|
DNRF-P230 |
230 |
250 |
1299 |
460 |
825 |
223 |
250 |
255 |
|
DNRF-P275 |
275 |
300 |
1299 |
464 |
880 |
248 |
300 |
302 |

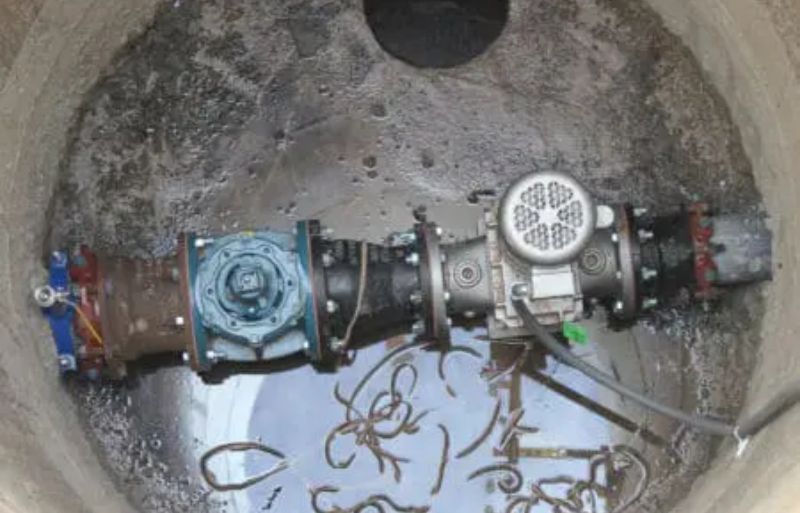

Municipal Sewer Networks
Installed at intake points or in preliminary treatment stages, these inline grinders effectively shred coarse solids, providing critical protection for downstream pumps, valves.

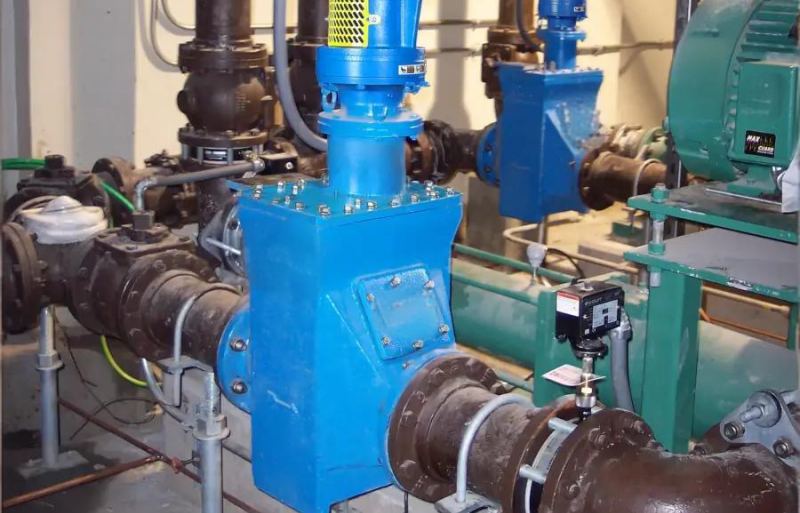

Industrial Wastewater Pipe Network
Grinding of solid waste generated during industrial production process.

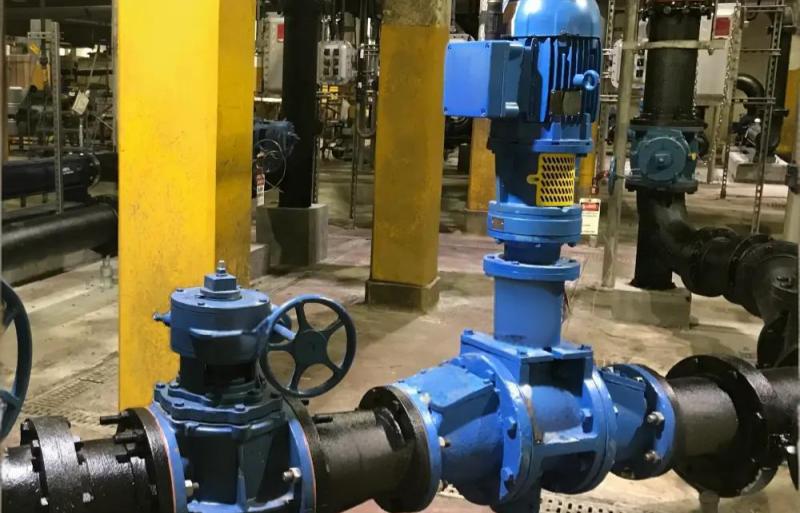

Commercial & Service Industries
Hotels, Hospitals and Large Commercial Complexes: Grinding solid waste that may enter the waste treatment systems.

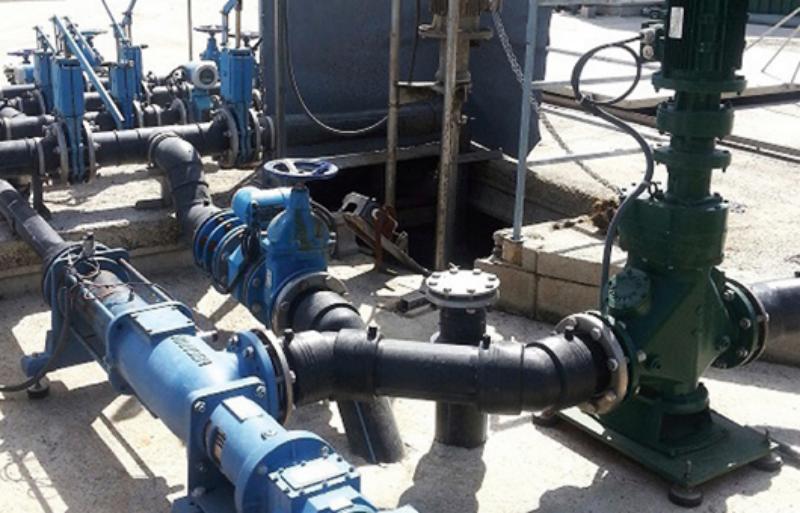

Construction & Infrastructure
Airports, Railway Stations, Residential Complexes, Large Buildings: Handling solid waste generated in public service areas.
