Vertical Turbine Pump

Multistage Vertical Turbine Pumps (VTP): Reliable Performance from the Deepest Sources

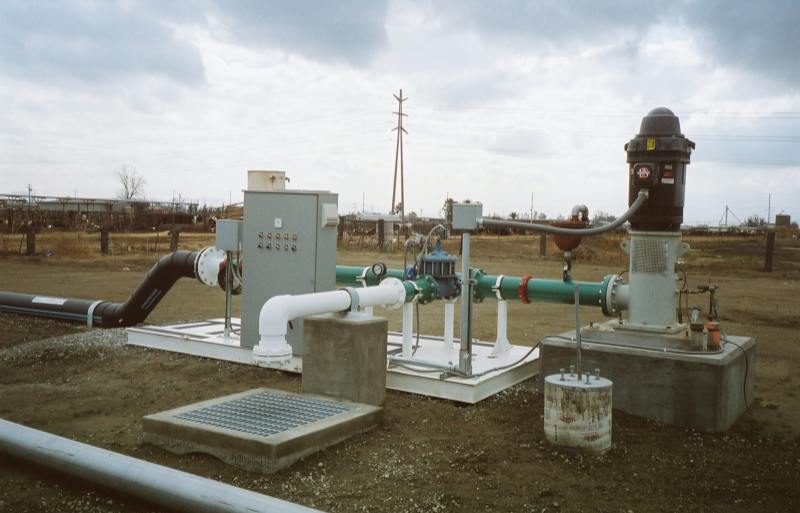

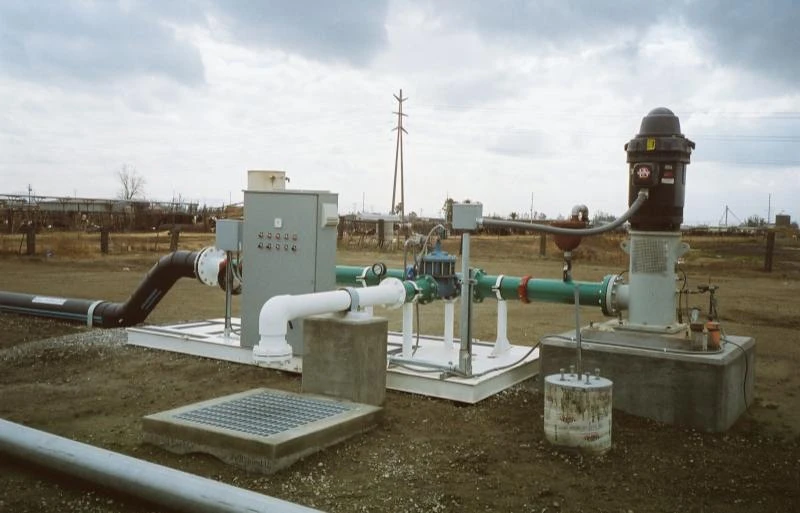

Our Multistage Vertical Turbine Pumps are engineered to deliver consistent, high-pressure output in the most deep well environments. Whether you are extracting water from deep boreholes or managing industrial water, these multistage centrifugal pumps provide the efficiency and durability required for continuous operation.

Designed as a specialized type of centrifugal pump, the multistage configuration stacks multiple impellers on a single vertical shaft. This design allows the pump to generate significantly high discharge pressures by incrementally boosting pressure with each stage, making it the ideal solution for high-head, low-to-medium flow rate applications.

How It Works?
Unlike horizontal split-case pumps, the vertical turbine pump is installed in a vertical orientation. The motor is mounted above ground (dry-pit), connected to the submerged pump bowls via a long, rotating line shaft. Inside the bowls, a series of impellers and diffusers work in sequence to convert velocity into pressure efficiently.

Comparison: Vertical Turbine Pump vs. Submersible Pump
Choosing between a VTP and a submersible pump depends on your maintenance strategy and installation requirements:

• Vertical Turbine Pump (VTP): Features a dry-pit motor above ground. This design allows for easier maintenance, simpler cooling, and longer motor life, as the motor is not submerged in the pumped fluid.
• Submersible Pump: Features a wet-pit motor attached directly to the pump and submerged. While this offers a more compact installation, servicing requires pulling the entire unit from the well.

Features & Benefits
1. Space-Saving Vertical Orientation
The inline vertical arrangement of pump and motor significantly reduces the floor space required compared to horizontal pumps, freeing up valuable real estate in pump houses or industrial plants.

2. Robust Multistage Design
By stacking multiple impeller/diffuser stages, we achieve ultimate pressure capabilities. The modular design allows for customization to meet exact head requirements, ensuring you never waste energy on over-pumping.

3. Durable Line-Shaft Construction
Power is transmitted reliably from the above-ground motor to the submerged impellers through a heavy-duty rotating shaft. This design ensures consistent torque delivery even at great depths.

4. High-Efficiency Hydraulics
Utilizing the "turbine" principle, our precision-engineered impellers and stationary diffusers work together to maximize energy transfer, providing superior efficiency compared to single-stage alternatives in high-head applications.

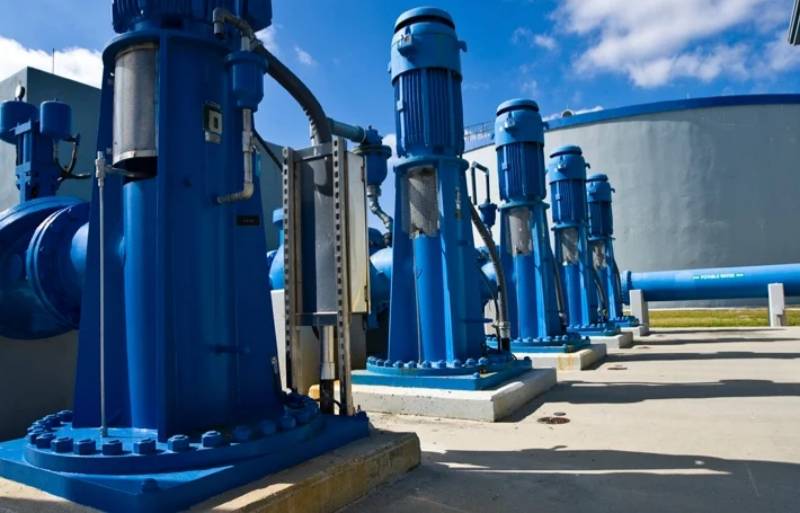

The Multistage Vertical Turbine Pump represents the reliability for heavy-duty pumping. It is the go-to solution for engineers and contractors requiring a durable, efficient, and easily maintainable pump for water supply, pressure boosting, and industrial transfer.

Contact our engineering team today to discuss your project specifications and find the perfect VTP solution for your needs.
