The Denor Permanent Magnet Variable Frequency Vertical Multistage Pump is a state-of-the-art booster system, engineered to deliver unparalleled efficiency, reliability, and intelligent control. By adjusting the output frequency of the variable frequency drive, stepless and precise control of the permanent magnet motor's speed can be achieved.
Main benefits
Motor (PMSM)+ Variable Frequency Drive
Exceptional energy savings
Precise & stable control
High reliability & soft start
Compact & quiet
Wide efficient operating range
Main applications
Water supply system
General industrial process boosting
Industrial liquid transport
Water treatment System
Irrigation and spraying systems
Product Description
Technical Data
Applications
Our Denor permanent magnet variable frequency vertical multistage centrifugal pump is an state-of-the-art booster pump which combines efficiency, simplicity, innovation and safety.
Features:
1. Efficiency: Permanent magnet centrifugal pump achieves overall energy savings up to 40 %, compared to conventional speed control systems.
2. Simplicity: Permanent magnet centrifugal pump is mounted directly onto the motor control box. It is already supplied with a 2.0 meter power cable and a 1.50 meter cable to connect with the pressure transducer.
3. Innovation: Permanent magnet centrifugal pump can be controlled manually by the board panel or via Bluetooth by the App (Android and IOS), enabling you to set and monitor the system remotely, save working data and increase the pump performance.
4. Safety: The integrated Class B (EN55011) input-filter prevents any type of disturbances in the domestic network to ensure a reliable use. The filter follows EMC Directives (electromagnetic compatibility).
A Permanent Magnet Variable Frequency Vertical Multistage Pump is a high-efficiency, intelligent pumping system that combines several advanced technologies: Permanent Magnet Synchronous Motor (PMSM) + Variable Frequency Drive (VFD) + Vertical Multistage Design.
The use of permanent magnet motors offers several advantages, including higher efficiency, lower energy consumption, and reduced maintenance requirements. The variable frequency drive allows for precise control of the pump's speed, enabling it to operate at optimal efficiency levels and reducing wear and tear on the system.
| Flow Range | 1m³/h - 100 m³/h or larger |
| Lift Range | 20 m - 300 m(or higher) |
| Power | 1.5 kW - 45 kW(Customized) |
| Voltage | 220V 380V (Customized) |
| Pump casing | Stainless steel or cast iron |
| Ingress protection rating | IP 55 |
| Operating Temperature | -15℃ ~ +120℃ |
| OEM/ODM | Accept |

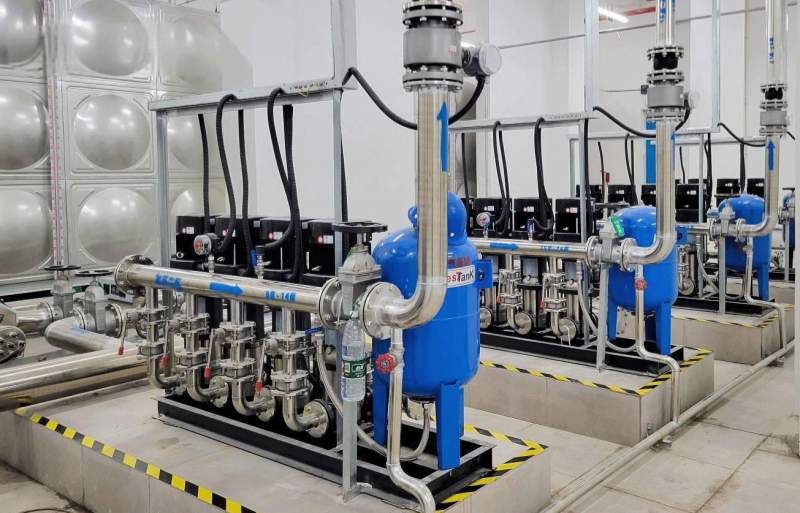

Water Supply System
Water conveyance in treatment plants, booster systems for high-rise buildings, and municipal pipeline pressure boosting.

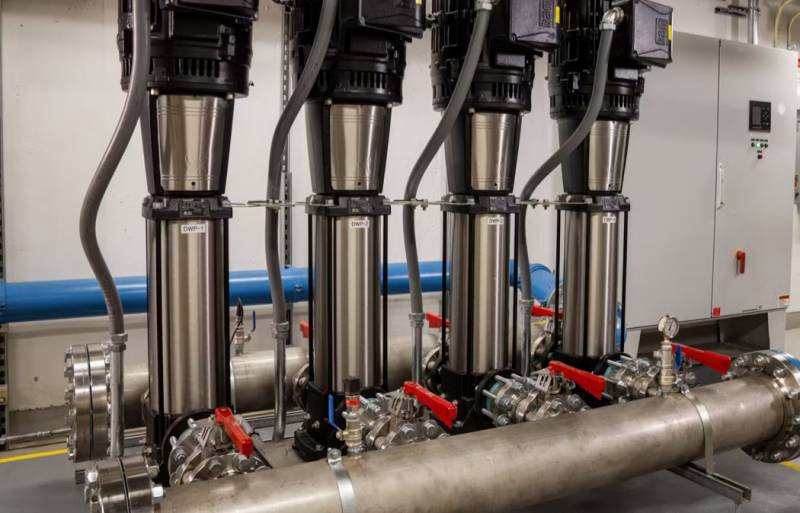

General Industrial Process Boosting
Process water circulation systems, high-pressure cleaning & wash-down applications, and general industrial fluid transfer, fire-fighting system.

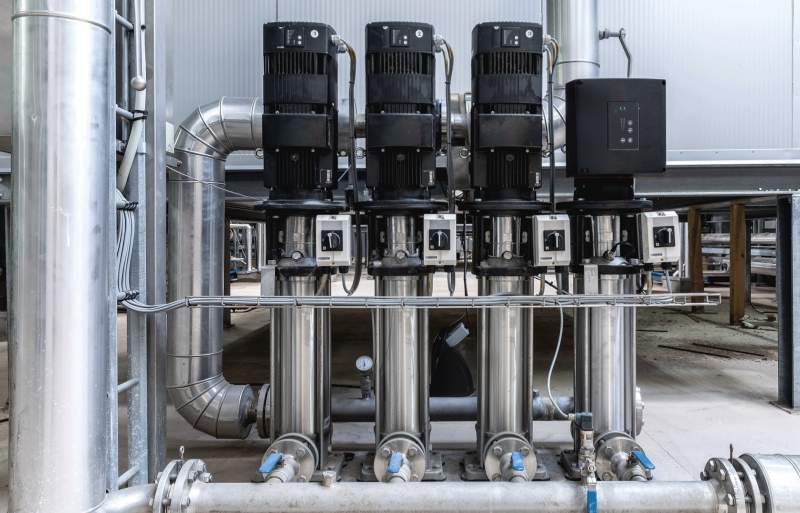

Industrial Liquid Transport
Industrial boiler feed water supply, chilled water and cooling water circulation in HVAC systems.

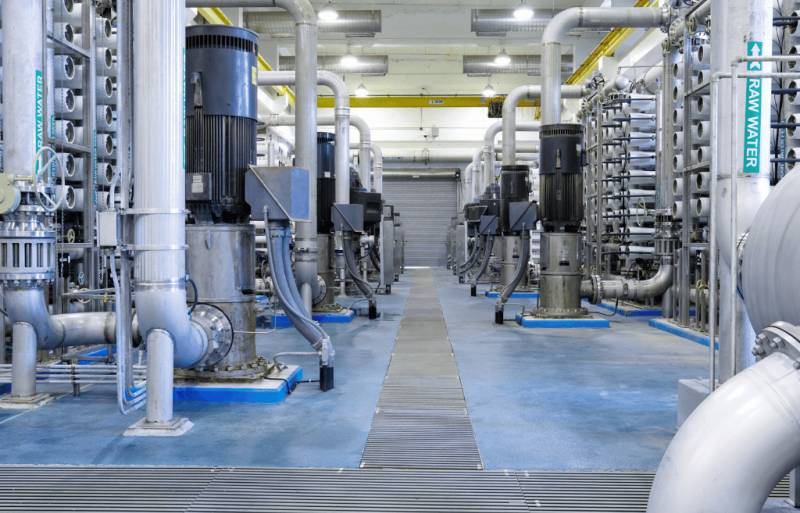

Water Treatment System
Reverse Osmosis (RO) systems, ultrafiltration systems, distillation systems, and swimming pool circulation.
Irrigation and Spraying Systems
Agricultural irrigation, sprinkler irrigation, and drip irrigation systems.
