A Horizontal Multistage Pump is a type of centrifugal pump where multiple impellers (stages) are arranged in series on a single, horizontally mounted shaft. Horizontal Multistage Pump and their automation are reliable, flexible, easy to maintain, and cost-competitive.
Our Denor offer a wide range of high-quality Horizontal Multistage Pump. Feel free to consult our experts for project assistance.
Main benefits of Horizontal Multistage Pump
High pressure output
Excellent stability & reliability
Space efficiency (Footprint)
Robust construction, high durability
Customizable configurations
Easy of maintenance
Main applications
High-pressure boosting
Water supply & distribution
Industrial processes
Firefighting systems
Mine de-watering
Agricultural irrigation
Product Description
Technical Data
Applications
Horizontal multistage pumps with several impeller stages connected in series, are perfect for applications where high head is needed, such as pressure boosting and liquid transfer in industrial application.
Unlike its vertical counterpart, the horizontal configuration is primarily designed for installation on a baseplate at ground level, making it a staple in industrial plant rooms and pressure boosting systems.
Our horizontal multistage pumps are at the forefront of technology, offering a range of solutions for diverse fluid movement applications. Whether you are involved in upstream, midstream or downstream operations, our horizontal multistage pumps provide a solution that integrates seamlessly with your existing systems, enhancing efficiency and reliability. Explore our offerings to find the right pump for your specific needs.
Horizontal Configuration: The pump and drive motor are connected via a horizontal coupling, making installation, alignment, and maintenance more accessible than vertical multistage types.
Multiple Impellers in Series: The core of the pump. The number of impellers (stages) is determined by the required total head. Impellers are typically of the enclosed type for high efficiency.
We offer a variety of models. If you are not sure which one is right for your project, please ask our team of experts for help.

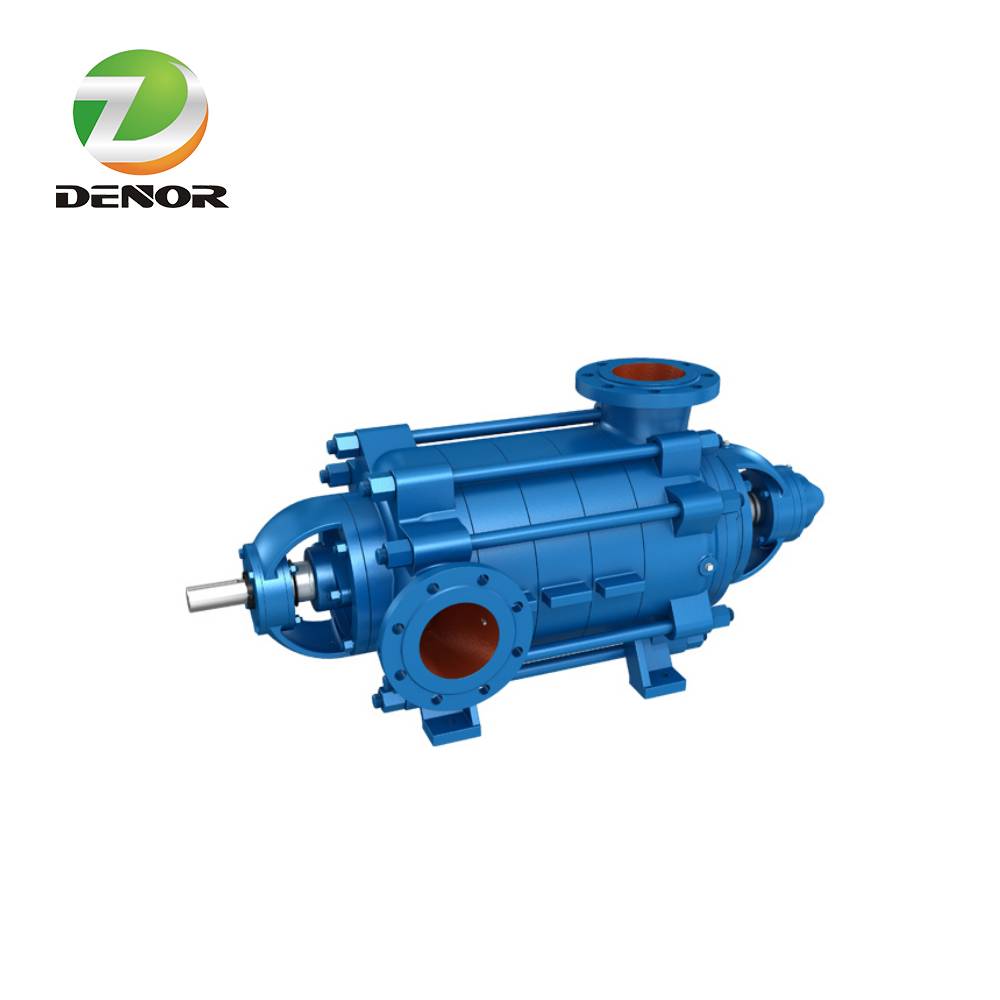

D series it's applicable for water supply and drainage works in mines, plants and cities. The temperature of liquids are not be over 80℃.
MD series horizontal multistage centrifugal pump can be applied for conveying the media with the particle content less than 1.5% and particle size no more than 0.5mm. Specially offered for neutral mine water and other similar sewage. The temperature of the liquid shall between -20℃ and 80℃.

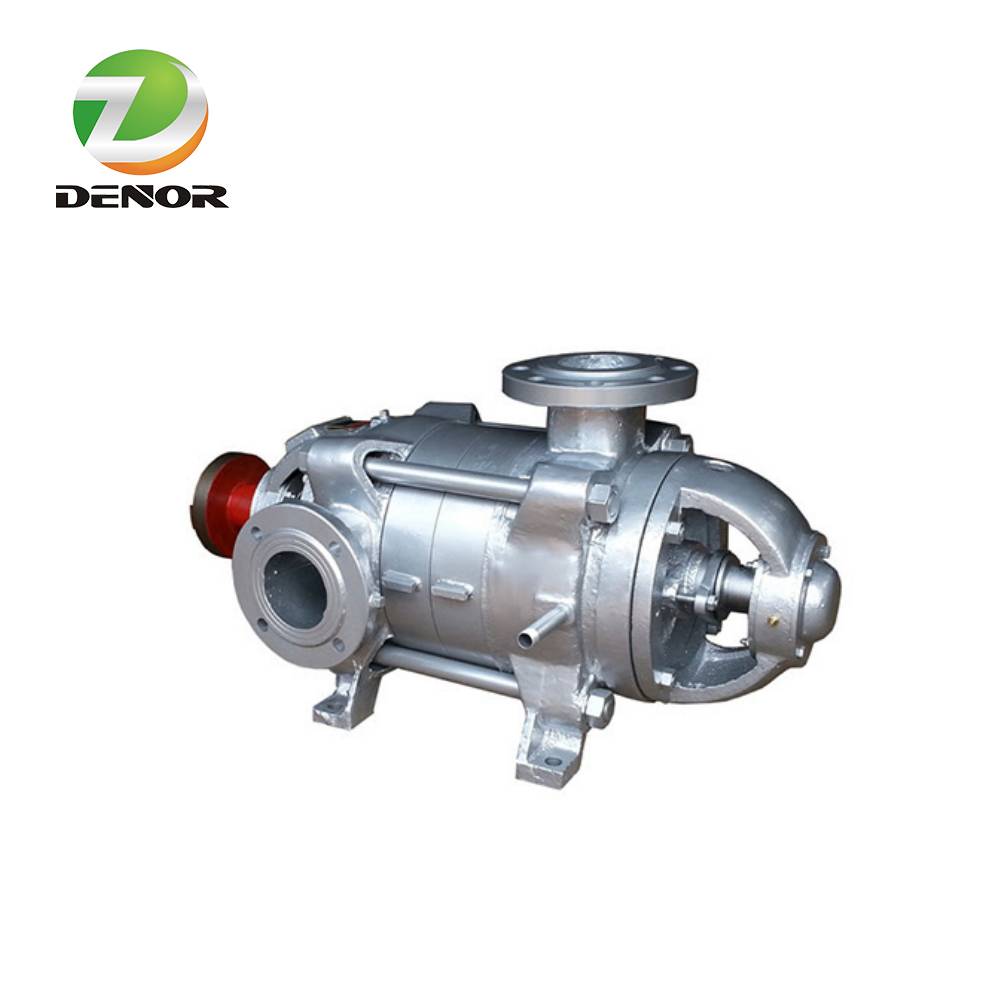

DF series can be used to transport clean water or corrosive liquids without solid particles. Range of temperature liquid: -20℃-105℃

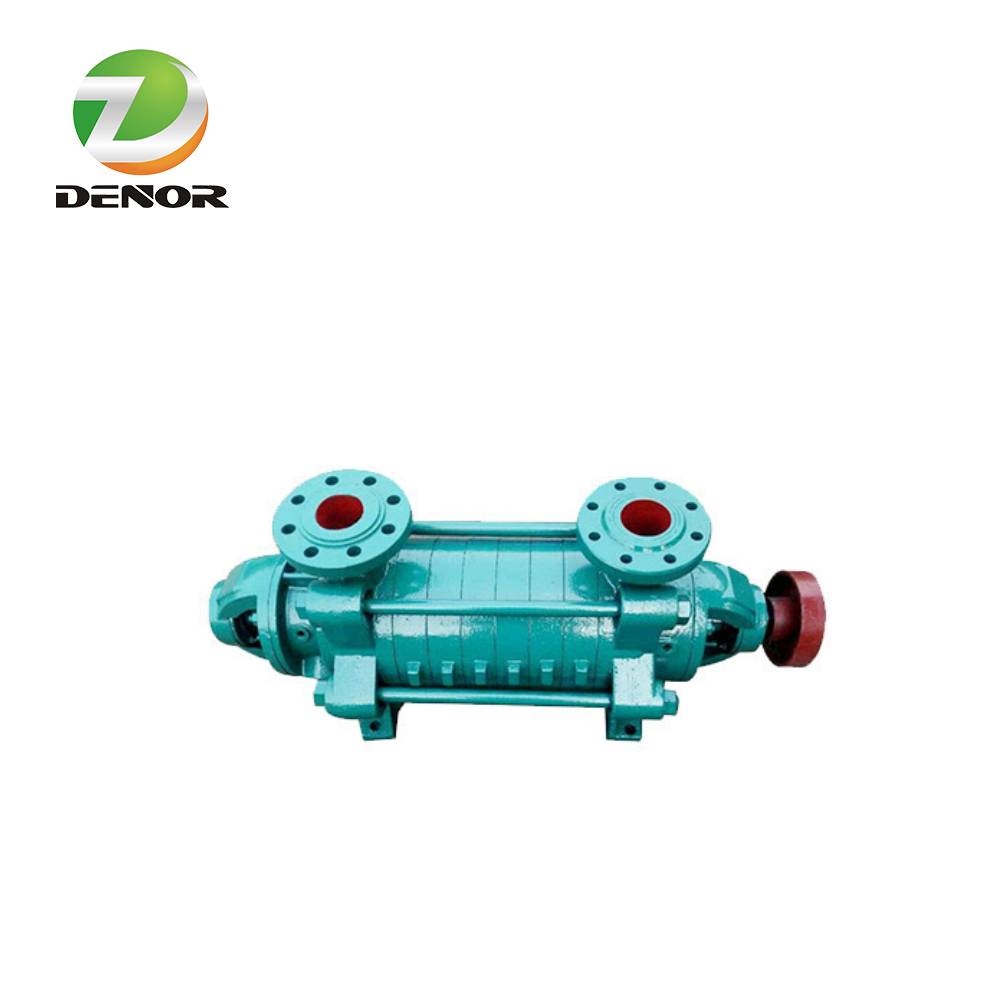

DG series it's applicable for water supply in low/middle/sub-high pressure boliers as well as for the high-pressure water supply and drainage in plants or cities. Range of temperature liquid: -20℃-150℃
| Flow Range | 2 m³/h - 1,500 m³/h (10 - 6,600 US GPM) |
| Lift Range | Up to 2,000 m |
| Power | 1 KW - 2,500 KW |
| Voltage | 220V 380V (Customized) |
| Pump casing | Cast steel, stainless steel, or coated cast iron |
| Multistage Pump Type (4 Types) | D series, MD series, DF series, DG series |
| Efficiency | Up to 85% |
| OEM/ODM | Accept |
|
Type |
D series |
MD series |
DF series |
DG series |
|
Media |
Clean water |
Sewage |
Corrosive liquid |
Hot water |
|
Liquid Temperature |
≤80℃ |
-20℃-80℃ |
-20℃-105℃ |
-20℃-150℃ |
|
Max. Particle Dia. |
0 |
0.5mm |
0 |
0 |
|
Viscosity |
0 |
0 |
0 |
0 |

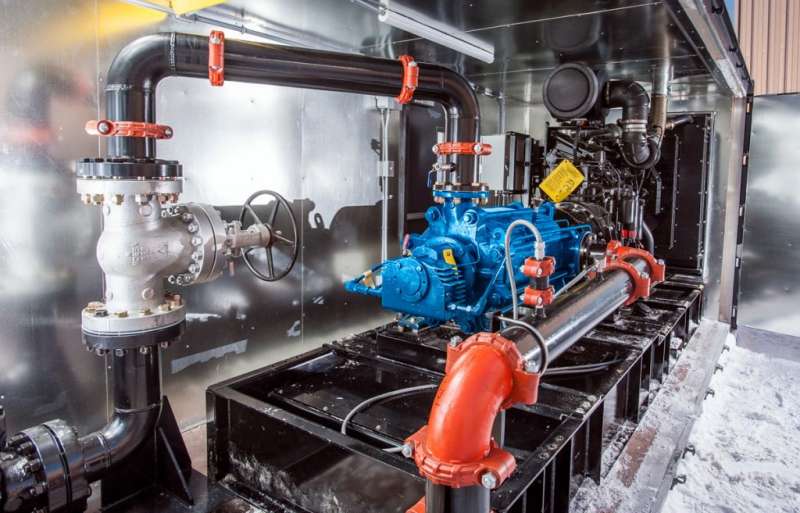

High-Pressure Boosting
Main pressure booster systems in large buildings, hotels, and industrial complexes.

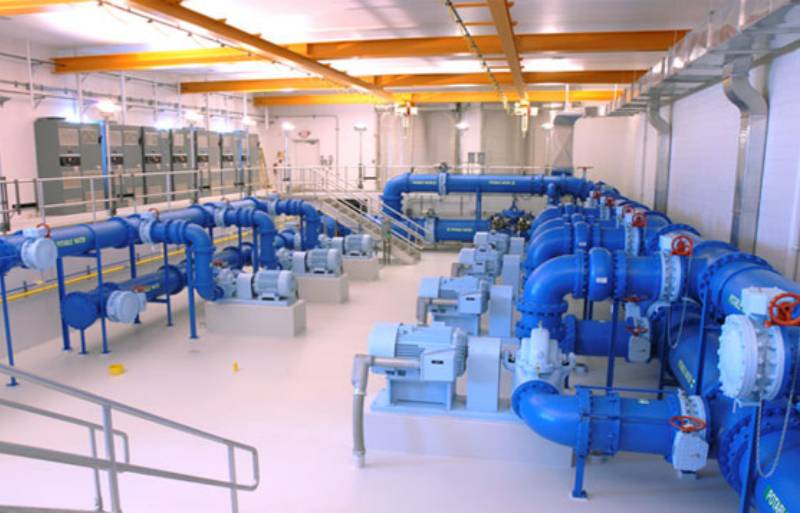

Water supply & distribution
Municipal water networks and long-distance water transmission.

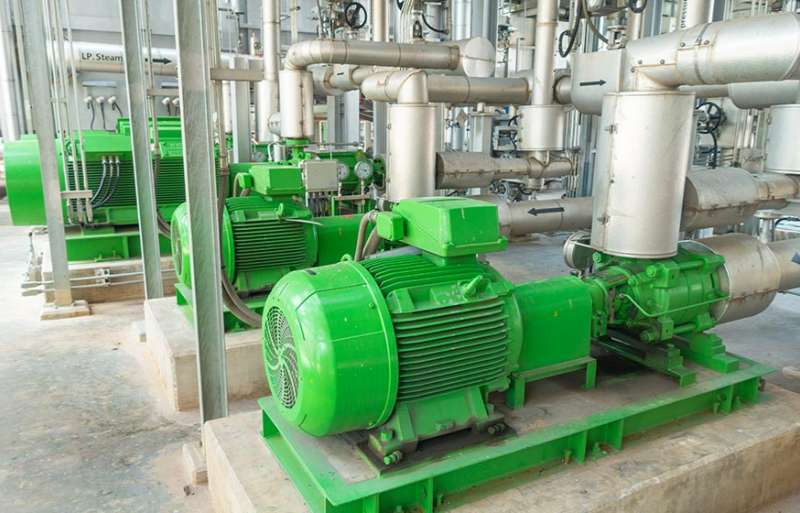

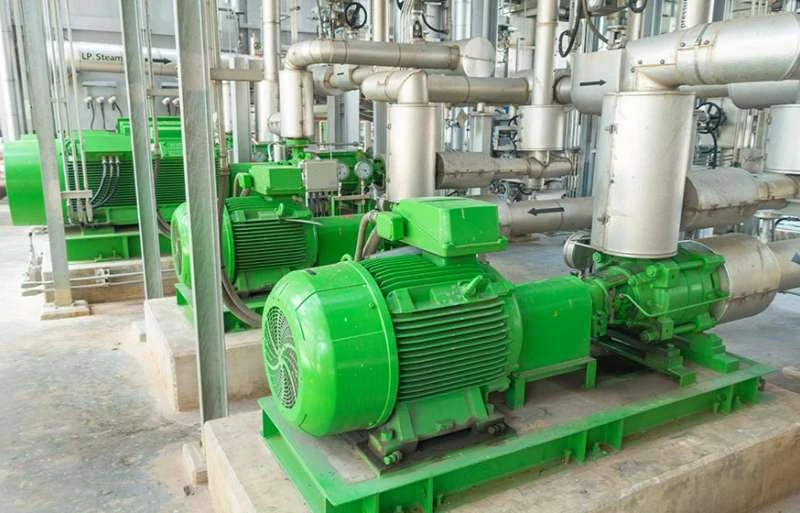

Industrial Processes
Boiler Feed Water, Reverse Osmosis (RO), Washdown & Descaling.

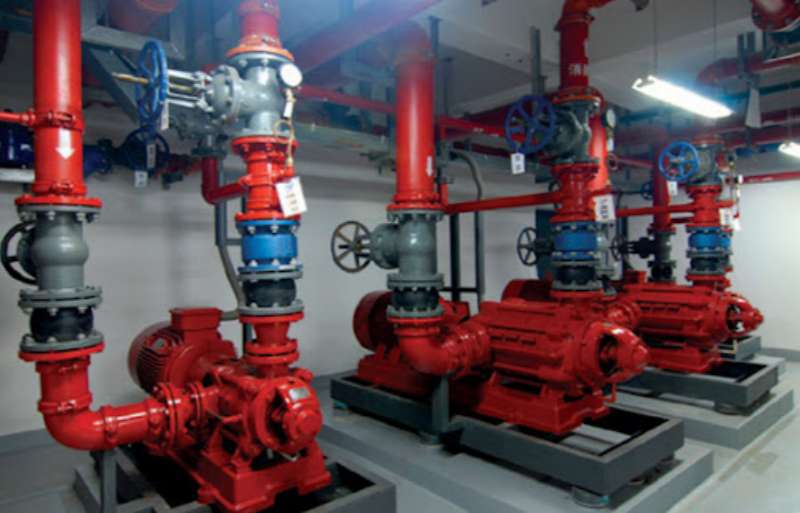

Firefighting Systems
As jockey or pressure maintenance pumps.

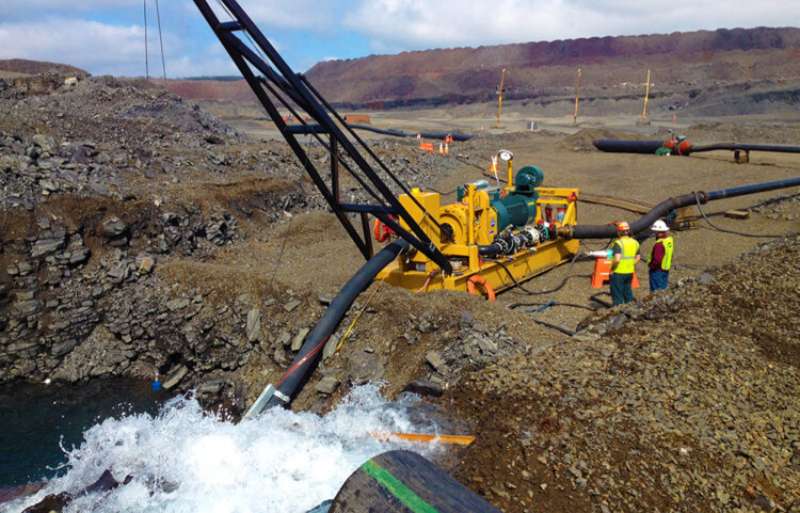

Mine Dewatering
Pumping water from great depths.

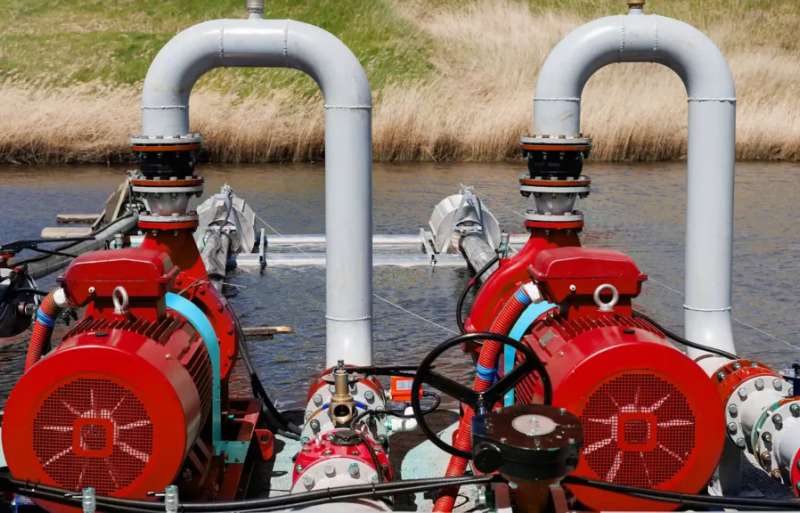

Irrigation
Large-scale agricultural irrigation from deep aquifers.
