DENOR PE Prefabricated Integrated Pumping Station — a complete, ready-to-install lift station engineered for stormwater, wastewater, drainage, and sewage transport.
Built with a corrosion-free polyethylene tank, integrated pumps, valves, and an intelligent PLC control system, each unit is:
Accelerate your project timeline. Simplify installation. Lower total cost. Ready to streamline your next wastewater project?
Main Benefits of PE Pumping Station
Material innovation & Eco-friendly
A turnkey project - customizable when required
Quick fabrication & delivery
Durability - built to last
Easy to install and ready to use Immediately
Affordability - saves time and cost
Easy maintenance and inspection - no need to enter the sump bottom
Main Applications
Municipal drainage
Urban and remote areas sewage treatment
Industrial wastewater discharge
Agricultural irrigation and drainage
Rainwater harvesting and discharge
Drainage for commercial buildings and residential areas
Flood control and drainage project
Product Description
Technical Data
Applications
PE Integrated Pumping Station | HDPE Sewage & Stormwater Wet Well Lift Station
When gravity flow is not an option, you need a reliable, durable, and quickly deployable pumping solution. Denor offers high-performance PE Integrated Pumping Stations—factory-assembled, pre-configured systems designed for efficient sewage and stormwater lifting. Engineered with high-density polyethylene (HDPE) and delivered as a complete package, our stations provide the perfect balance of corrosion resistance, installation speed, and long-term reliability.

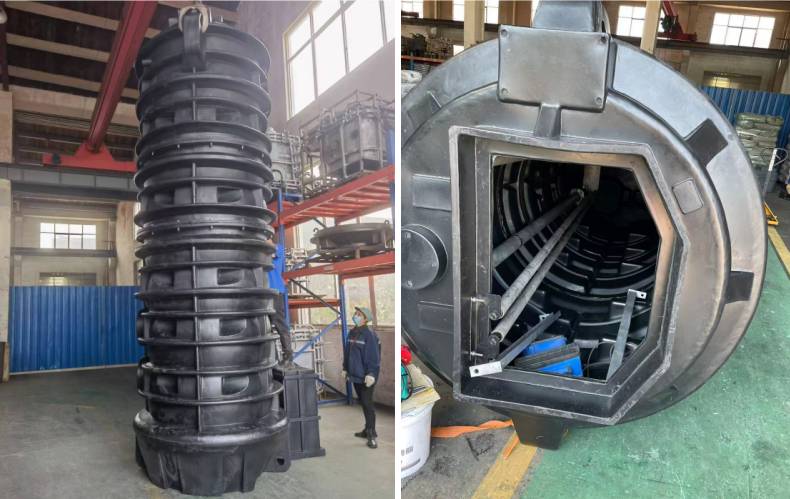

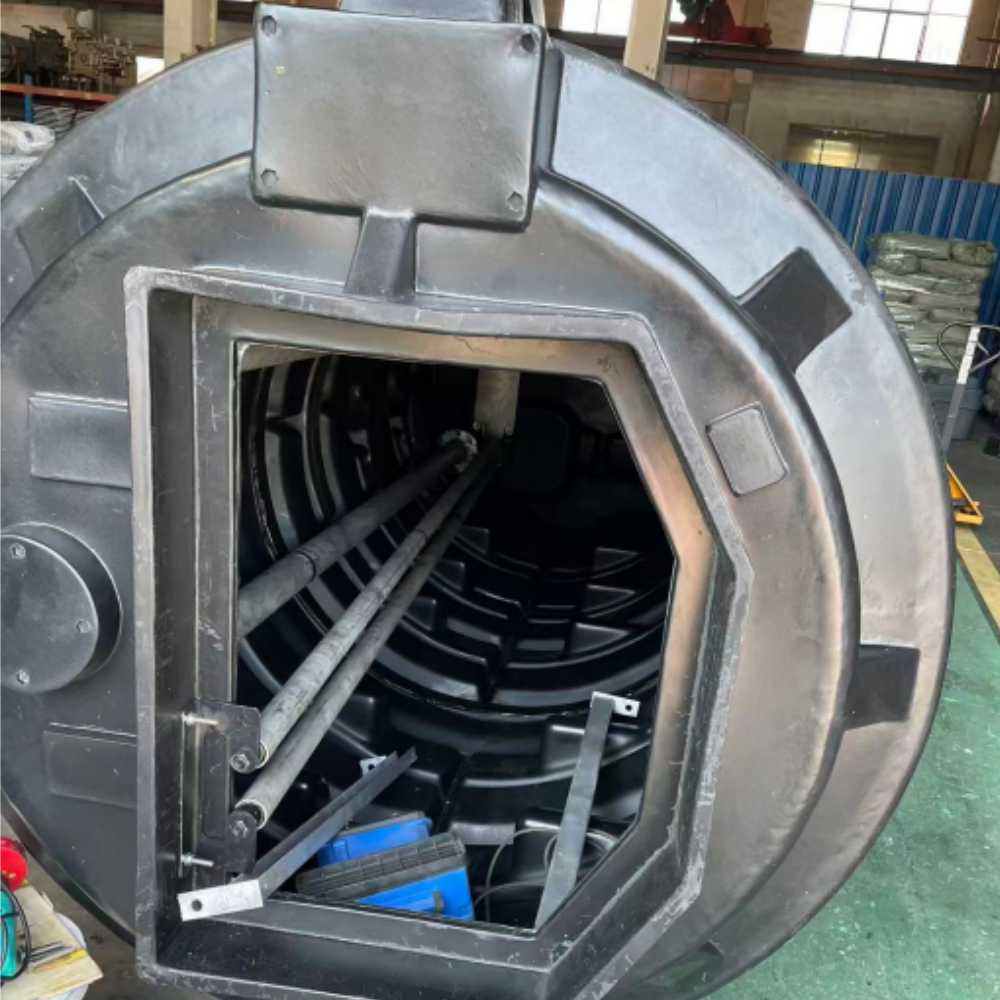

PE Integrated Pump Station in Our Factory
Why Choose PE/HDPE for Your Pump Station?
The core structure—the cylinder (wet well)—is manufactured from polyethylene (PE) , specifically high-density polyethylene (HDPE) . This material choice delivers critical advantages over traditional concrete or steel tanks:
| Feature | Benefit |
| Superior Corrosion Resistance | Wastewater is highly corrosive. Unlike concrete, which deteriorates over time, HDPE is inherently resistant to chemical attack, hydrogen sulfide (H₂S) gas, and acidic effluents. This significantly extends the service life of your pump station. |
| Lightweight & High Strength | HDPE is lighter than concrete or steel, reducing transportation costs and simplifying onsite handling. |
| Leak-Proof Construction | The tank is manufactured as a seamless, monolithic structure (or with fusion-welded joints), eliminating the risk of infiltration (groundwater entering) and exfiltration (sewage leaking out). |
| Durable in Harsh Environments | Resistant to UV degradation, impact, and ground movement, ensuring decades of trouble-free operation. |
| Material Options | While PE/HDPE is our standard, we also offer stations in HMPP (High-Performance Modified Polypropylene) , Stainless Steel (SS) , and GRP to match specific project requirements. |
How to Select the Right Wet Well Packaged Pumping Station
Choosing the correct pumping station is critical for long-term performance and cost efficiency. Consider these three essential factors:
1. Duty Point (Flow & Head)
The duty point is the combination of flow rate (m³/h or GPM) and total dynamic head (meters or feet) required to move the wastewater from your site to the discharge point. This determines:
2. Pumped Medium (What are you pumping?)
The characteristics of the fluid dictate the materials and pump type:
3. Chamber Storage Capacity
The wet well must be sized to:
Need help calculating your requirements? Contact our engineering team for a free site assessment and sizing recommendation.
Why Partner with Denor?
Ready to Upgrade Your Wastewater Infrastructure?
If you need a new sewage lifting station or are replacing an aging concrete system, ask our expert team for technical guidance and competitive discount support.
| Cylindrical Body Material | HMPP body |
| Hatches | Hinged aluminum |
| Voltage | Adjustable (V) |
| Pump Configurations | Simplex and duplex |
| Diameters | 1,200mm / 1,500mm / 2,000mm / 3,000mm |
| Height | 4,500mm / 5,500mm / 6,000mm / 7,000mm |
| Processing Capacity | 1900-2400 / 3600-4800 / 6000-9600 / 19200-48000 (m³/d) |
| Pump Types | Submersible sewage pump, cutter/grinder pump |
| Control Panel | PLC control system |
| Level Monitoring | Float switches or level transducer |
Ps: The above data is for reference only. The parameters and selection are subject to mutual confirmation and can be combined for use. Other non-standard tonnage can be customized.
Residential Areas Sewage Drainage
High-density residential areas or apartment buildings produce vast quantities of sewage, wastewater, and rainwater, which need to be efficiently transported to the sewer system.
Commercial Sewage Drainage
Commercial establishments such as hotels, restaurants, and office buildings generate substantial volumes of wastewater, necessitating reliable and efficient discharge systems for optimal management.
Industrial Wastewater Drainage
Manufacturing plants and industrial parks generate large amounts of wastewater, which must be pumped out of the plant area for treatment or disposal.
Municipal Sewage Drainage
Municipal wastewater systems require pumping stations to lift and convey sewage from collection networks to treatment plants.
Sewage Treatment Plants
Integrated pumping stations can ensure the continuity, reliability, and efficiency of the entire wastewater treatment process.
Flood Control and Drainage
Stormwater lift stations can be used in flood control and drainage, they can help transport water and wastewater to a central location for treatment.
Request a Free Tailored Quote
Quick response: share your needs with us please, we'll contact your in very short time.
CUSTOMIZED DISPLAY
Customized Pumping Solution For Your ProjectNot Your Average Manufacturer
We tailor solutions to your specific needs based on flow rate, head, and site conditions.
Not sure what you need? Our experts team will help you find the right products.
Bespoke Design
Engineered to your project's needs.
Flexible Configuration
Choice of materials, pumps, and control system.
Product Production Cycle Management
Optimize production processes and shorten production cycles
Strong Delivery Capabilities
Complete logistics and supply chain, with delivery as fast as 15 business days.
End-to-End Service
From design to after-sales support.
