Denor Fiberglass Lift Station — a complete, prefabricated system designed for reliable sewage, stormwater, and wastewater lifting across municipal, commercial, and industrial sites.
Ready to upgrade or replace your traditional concrete lift station?
Contact our US-focused engineering team helps you custom the right lift pump station today.
Main Benefits of fiberglass lift station
Support US/EU standard, CE & ISO certification
A turnkey project - customizable when required
Quick fabrication & delivery - In factory manufacture & assembly
Easy to install and ready to use Immediately
Durability - 50+ year service life
Easy maintenance and inspection - no need to enter the sump bottom
Main Applications
Municipal wastewater collection and drainage
Industrial wastewater discharge
Stormwater management
Sewage drainage for commercial buildings
Airports and transportation Hubs
Coastal protection
Product Description
Technical Data
Applications
Fiberglass Lift Station | Stormwater Lift Station
Engineered for the Toughest US Wastewater and Stormwater Applications
When gravity flow isn’t an option, you need a pumping solution you can install and forget.

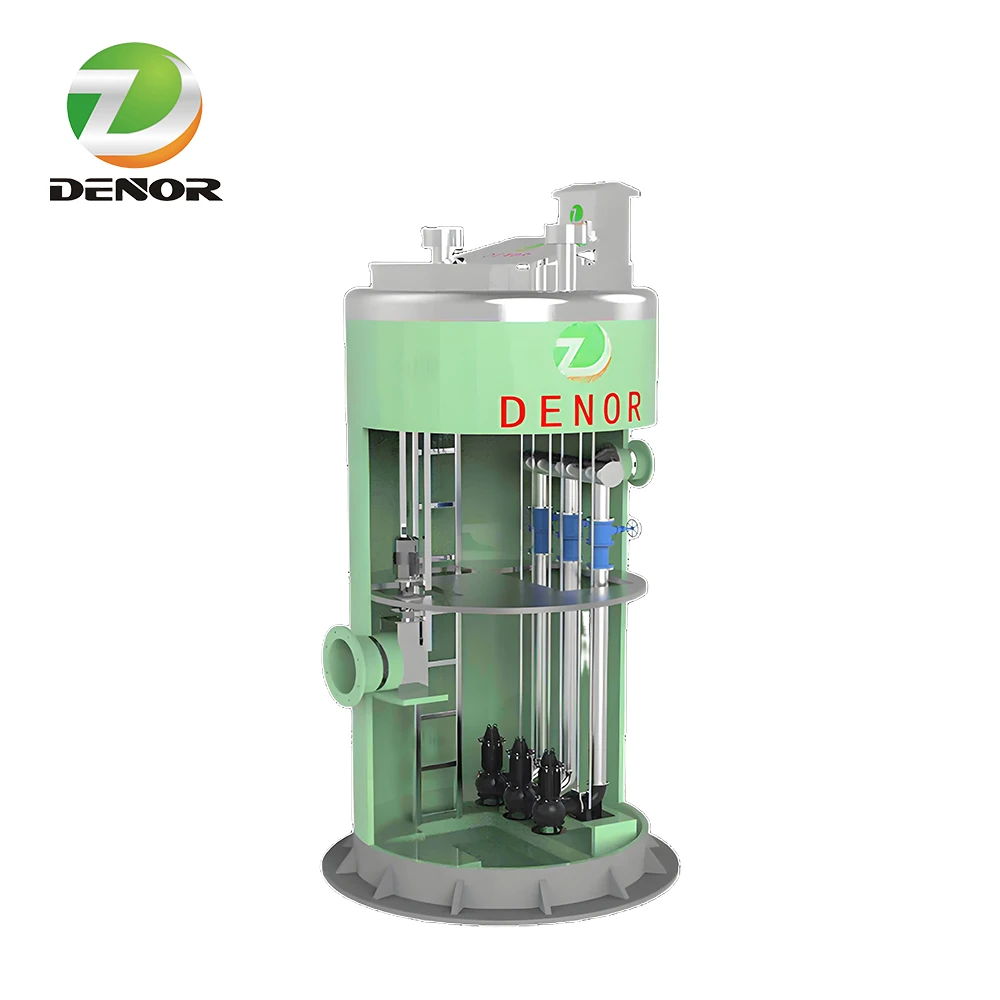

Denor’s fiberglass lift station integrates the basin, pumps, valves, piping, and intelligent controls into one factory-assembled package. This eliminates the nfeed for on-site concrete construction and delivers a faster, more reliable installation. The submersible stormwater lift station collects wastewater or stormwater in a below-ground fiberglass basin. When the water level rises to a preset point, sewage pumps activate and lift the water through a discharge pipe to a higher elevation or treatment facility.
Why Choose a Prefabricated Fiberglass Lift Pump Station?
Traditional concrete pump stations corrode. A fiberglass pump station offers a superior alternative:
| Feature | Benefit |
| Corrosion Resistance | Fiberglass Reinforced Plastic (FRP) materials, ideal for US coastal and high-groundwater regions. |
| Leak-Proof Construction | Seamless, one-piece fiberglass wet well prevents infiltration (groundwater in) and exfiltration (sewage out). |
| Lightweight & Strong | Easier to transport and install than concrete—no heavy cranes required in most cases. |
| 50+ Year Service Life | Fiberglass does not degrade over time. Your lift station stays in service for decades. |
| Low Maintenance | Smooth interior surfaces resist buildup, and pumps can be serviced without confined space entry. |

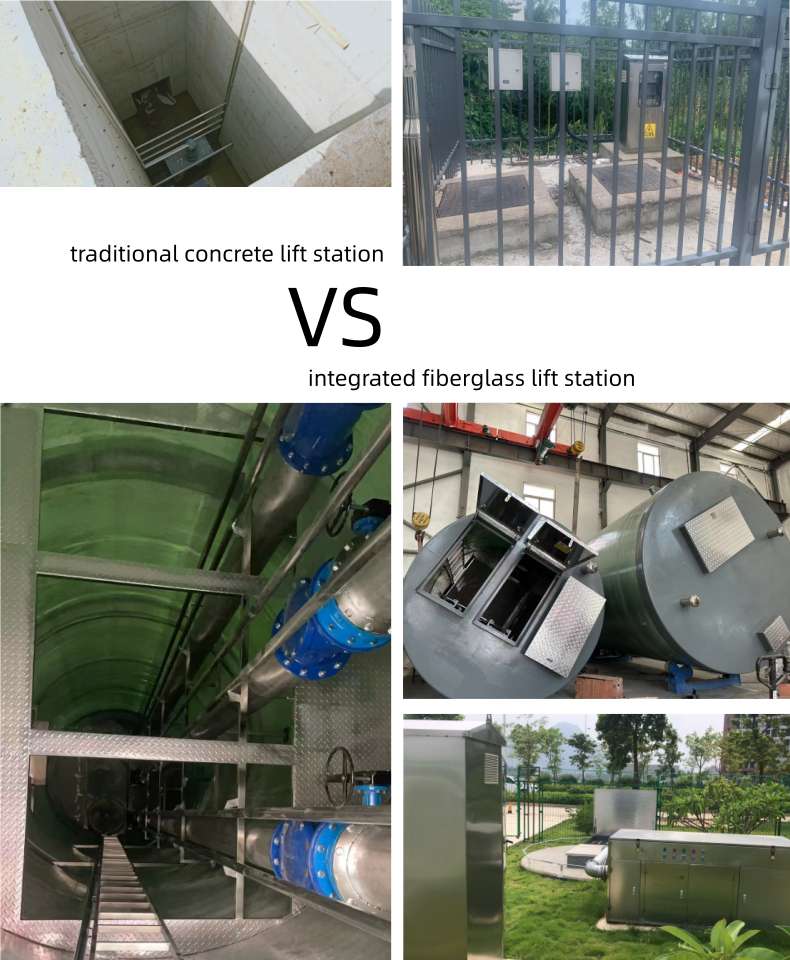

Traditional concrete lift station VS integrated fiberglass lift station
Engineered for US Standards
Denor fiberglass wastewater or sewage lift stations are designed to meet or exceed US engineering standards:
Stormwater Lift Station — Factory-built. Ready to install. Built to last.
Municipal engineers trust Denor storm water lift stations for flood-prone areas. Our large-diameter fiberglass wet wells handle sudden inflow surges, while high-capacity submersible sewage/grinder pumps move massive volumes with minimal energy consumption.

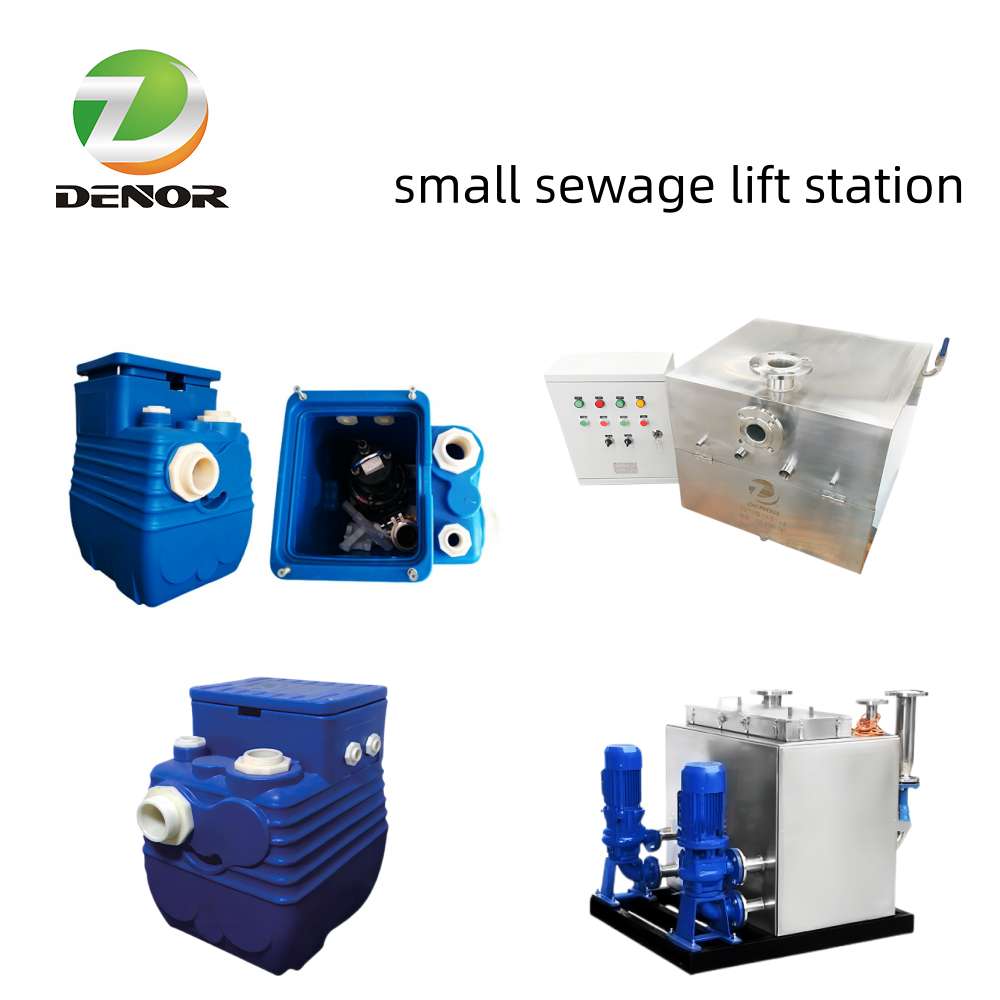

The specifications of the packaged wastewater and sewage pump station can be flexibly selected according to your needs. Our Denor also have small packaged lift station systems (also called sewage lifting units) for residential, apartment and basement. Support custom materials and sizes.
Why Spec Denor?
How to Custom Your Fiberglass Lift Station?
Replace that aging concrete wet well sewage lift station with a modern fiberglass lift station from Denor. Get lower lifecycle costs, faster installation, and reliable performance you can count on.
Contact our US-focused engineering team helps you select the right packaged fiberglass watsewater lift pump station today for:
| Cylindrical Body Material | Fiberglass cylinder body |
| Hatches | Hinged aluminum |
| Voltage | Adjustable |
| Pump Configurations | Simplex and duplex |
| Diameters | 1,200mm / 1,500mm / 2,000mm / 3,000mm |
| Height | 4,500mm / 5,500mm / 6,000mm / 7,000mm |
| Processing Capacity | 1900-2400 / 3600-4800 / 6000-9600 / 19200-48000 (m³/d) |
| Pump Types | Submersible sewage pump, cutter/grinder pump |
| Control Panel | PLC control system |
| Level Monitoring | Float switches or level transducer |
Ps: The above data is for reference only. The parameters and selection are subject to mutual confirmation and can be combined for use. Other non-standard tonnage can be customized.

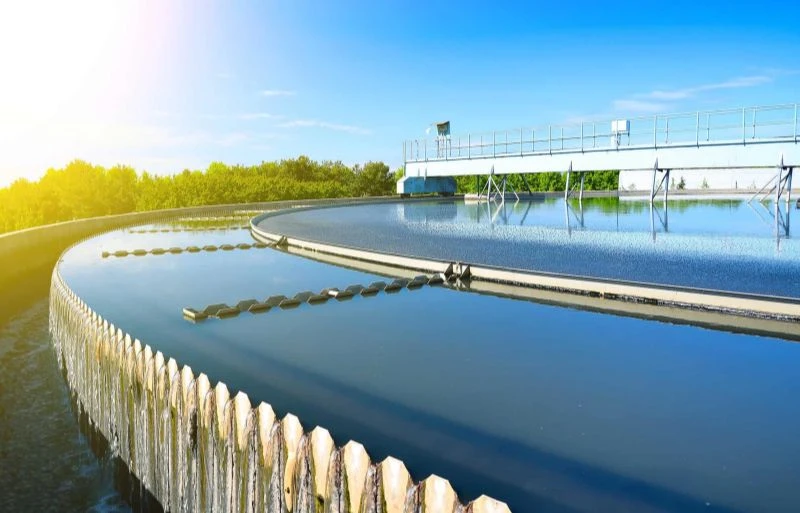

Municipal Wastewater Collection
Reliable sewage lifting for residential neighborhoods and commercial districts.

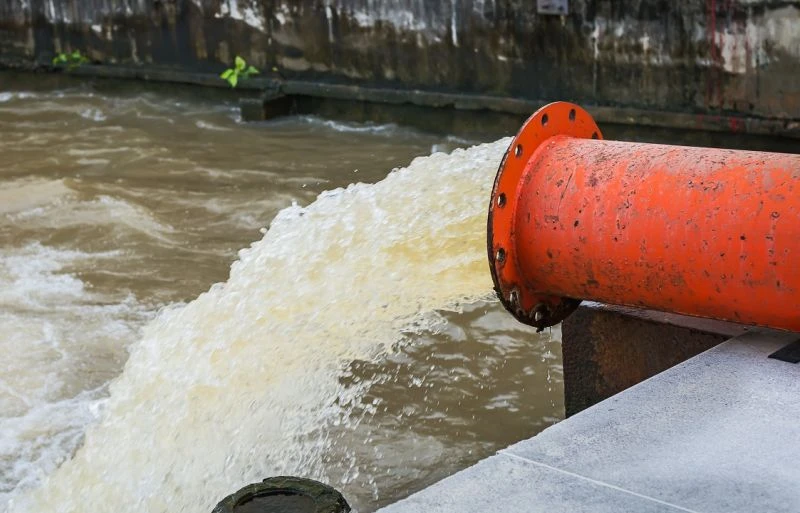

Stormwater Management
High-volume stormwater lift station for flood control, highway drainage, and detention pond discharge.
Commercial Buildings
Commercial buildings like hotels and offices need efficient, reliable lift station for high-volume wastewater.

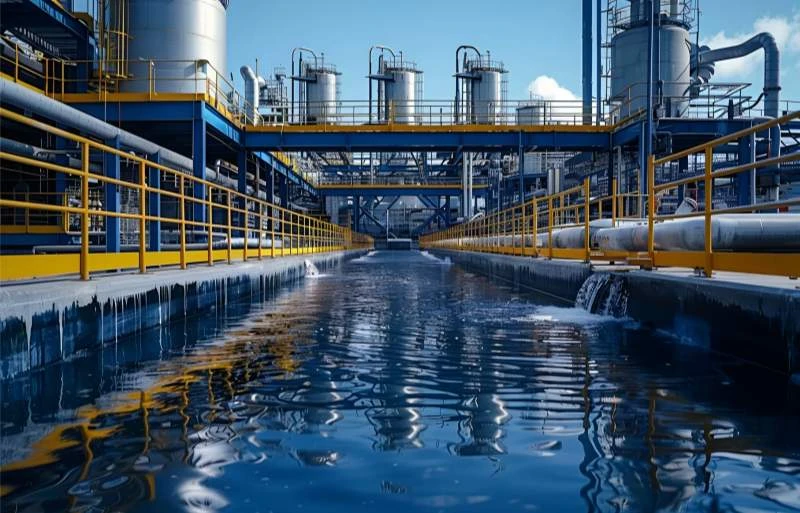

Industrial Wastewater Drainage
Manufacturing plants and industrial parks need reliable lift station to move wastewater to treatment.

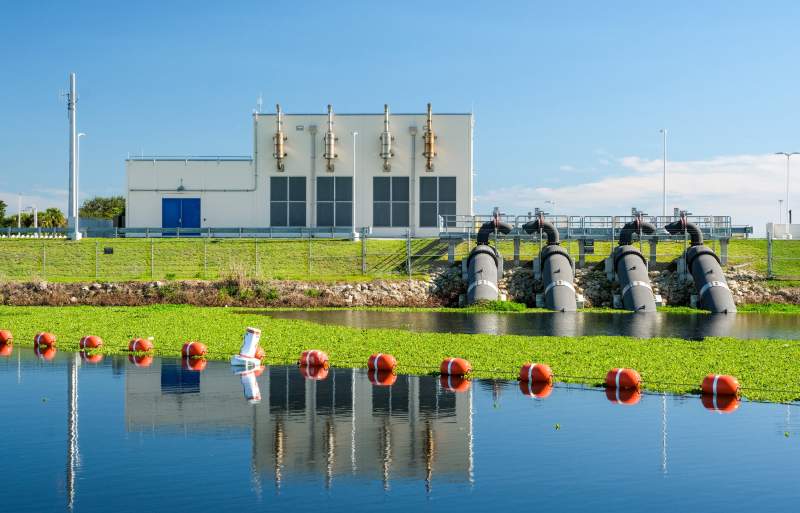

Coastal Protection
Saltwater-resistant fiberglass construction for shoreline lift stations.
Airports & Transportation Hubs
Runway drainage, underpass dewatering, and stormwater collection for transportation infrastructure.
Request a Free Tailored Quote
Quick response: share your needs with us please, we'll contact your in very short time.
CUSTOMIZED DISPLAY
Customized Pumping Solution For Your ProjectNot Your Average Manufacturer
We tailor solutions to your specific needs based on flow rate, head, and site conditions.
Not sure what you need? Our experts team will help you find the right products.
Bespoke Design
Engineered to your project's needs.
Flexible Configuration
Choice of materials, pumps, and control system.
Product Production Cycle Management
Optimize production processes and shorten production cycles
Strong Delivery Capabilities
Complete logistics and supply chain, with delivery as fast as 15 business days.
End-to-End Service
From design to after-sales support.
