Wherever a reliable and high-capacity axial flow pump is required to move fluids efficiently, our Denor QZ submersible axial flow pump offers a robust and effective solution. It is a high flow, low lift impeller type device featuring a linear flow path.
We offer customization services for our QZ submersible axial flow pump, including ODM and OEM solutions. During the bidding process, we provide technical and pricing support to construction companies.
Main Benefits of QZ Axial Flow Pump

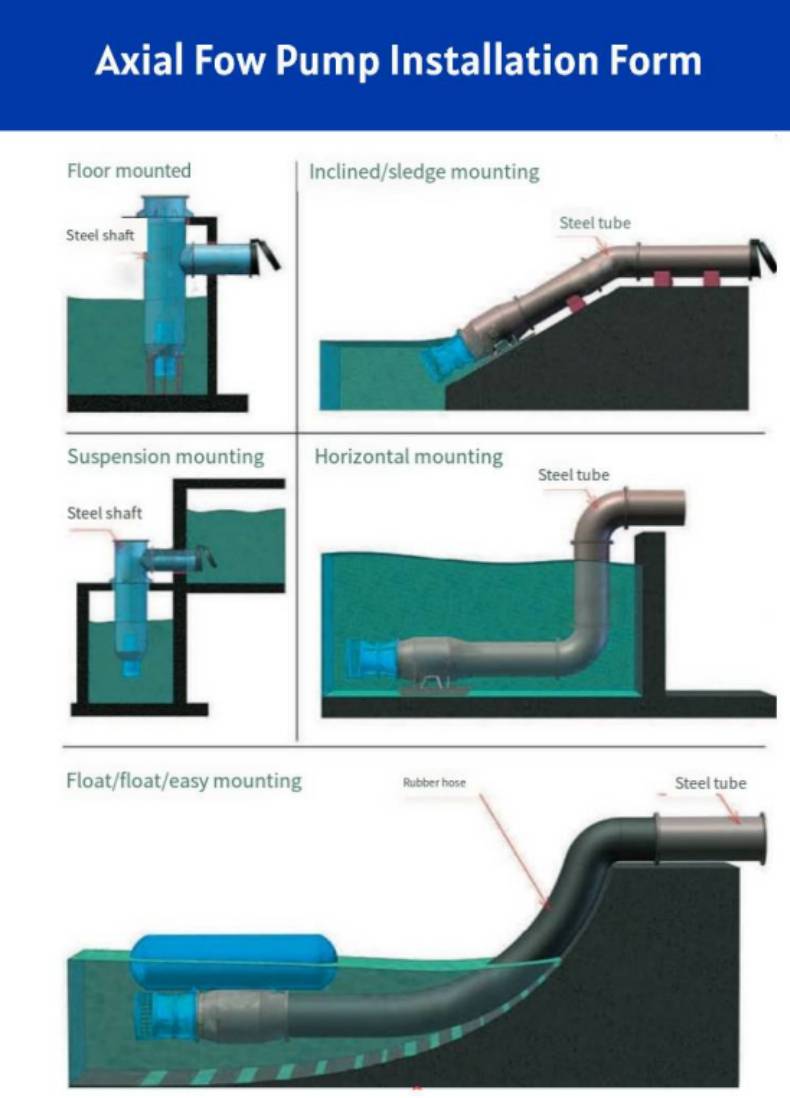

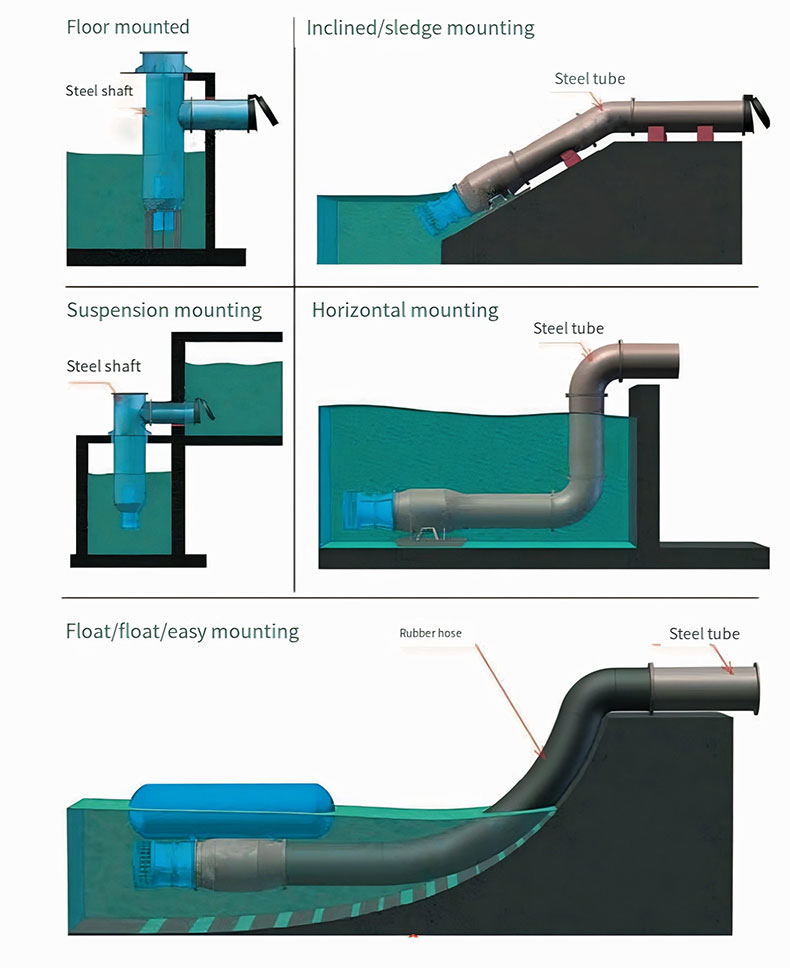

Multiple submersible installation method
High efficiency in high-flow and low-head applications
Smooth and reliable operation
Robust construction, high durability and reliability
Easy Installation and low maintenance costs
High efficiency performance for best total life time cost
Main Applications
Municipal engineering
Agricultural irrigation and drainage
Industrial water circulation
Flood control and drainage project
Water transfer projects
Product Description
Technical Data
Applications
Reliable manufacturer of qz submersible axial flow pumps, 20+ years factory experience. Talk to us for qualified advice on Axial Flow Pump for your project.
An axial flow pump, also known as a propeller pump, is a type of pump that moves fluid along a straight path parallel to the pump shaft, using a propeller-like impeller. As a factory, we are committed to producing high-quality and high performance products that meet the needs and exceed the expectations of our valued customers.
The Denor QZ submersible axial flow pumps are designed to handle large volume dewatering. Available in cast iron, stainless steel, etc,. QZ submersible axial flow pump, the flow rate is increased by 20%-30%, the efficiency is increased by 3%-5% compared with the old model.

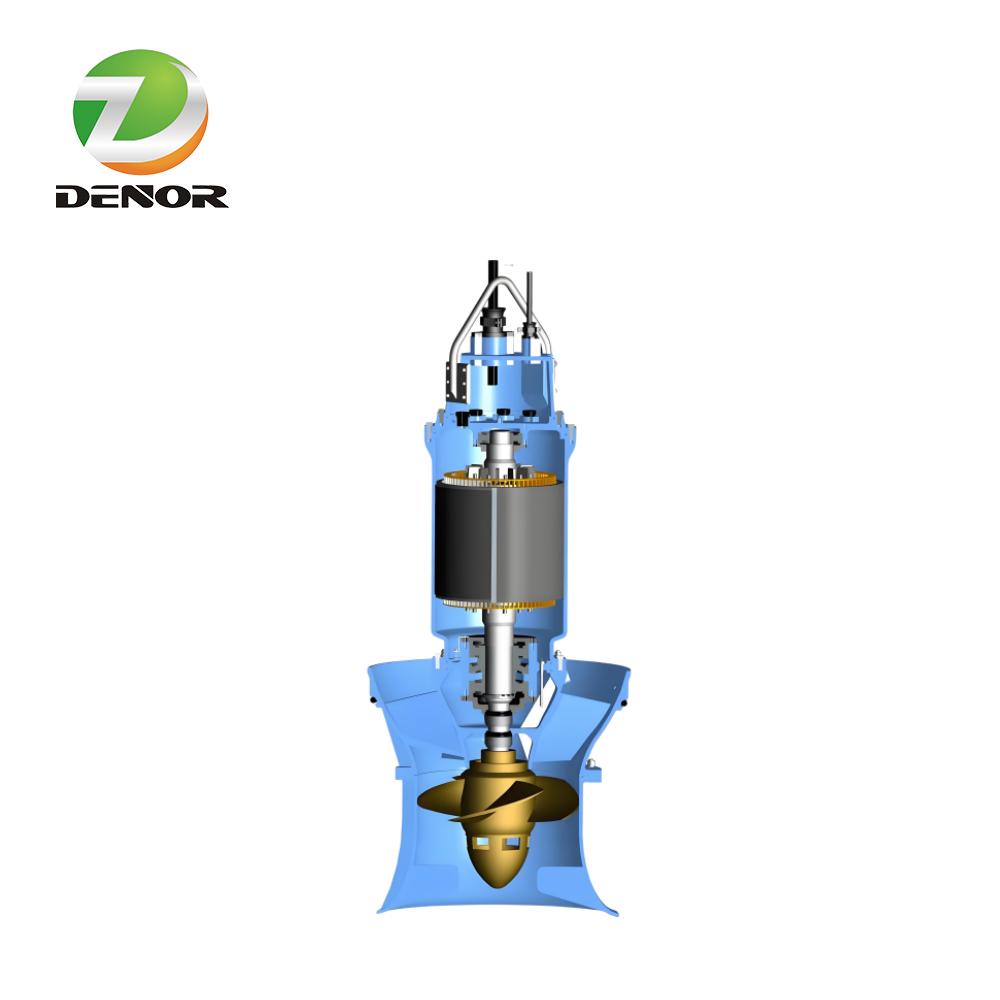

QZ axial flow pump has the characteristics of large single flow, wide head range and high efficiency. Submersible motor and pump integrated structure, diving operation, installation and use is very convenient. It is the best alternative to the traditional axial flow pump.
When you buy our QZ axial flow pump , you gain so much more than just a volute liner, impeller or side liner. You’re making an investment in a product that will:
Receive Denor lifetime support;
Achieve higher pump performance;
Last longer, reduce your process risk profile.
Project construction:
Investment reduced by 30%–40%;
Construction period shortened by over 20%;
Commissioning cycle reduced by over 95%;
Easy maintenance, equipped with PLC control cabinet for reliable operation;
Low noise, long service life.
We offer customization services for our QZ submersible axial flow pump, including ODM and OEM solutions. During the bidding process, we provide technical and pricing support to construction companies.
Reliable global exporter of axial flow pumps, 20+ years experience. Talk to us for qualified advice on Industrial Axial Flow Pump for your project.
| Material | Cast Iron / SS304 or as per request |
| Flow Range | 1,800 m³/h - 180,000 m³/h |
| Lift Range | 2 m - 25 m |
| Power | 75 KW - 3,000 KW |
| Voltage | 380V, 660V, 6000V, 10000V |
| Frequency | 50Hz |
| Efficiency | 80% - 89.2% |
| Inlet/Outlet Size | Customized |
| OEM/ODM | Accept |
| Temperature | 2℃ - 50℃ |
|
Model |
Vane Angle |
Capacity (m³/h) |
Head (m) |
Power (Kw) |
Speed (r/min) |
Efficiency (%) |
Outer diameter of impeller (mm) |
|
600QH-40 |
0° |
4415.2 |
14.09 |
250 |
740 |
84.1 |
550 |
|
700QH-72 |
0° |
5056.1 |
6.54 |
160 |
740 |
84.2 |
600 |
|
800QH-35 |
0° |
7257.4 |
14.71 |
400 |
590 |
85.1 |
700 |
|
1000QH-40 |
+2° |
12461.6 |
16.52 |
710 |
490 |
86.2 |
870 |
|
1200QH-72 |
+4° |
15607 |
8.45 |
560 |
490 |
85.8 |
950 |
|
1300QH-72 |
-2° |
17024 |
4.4 |
400 |
370 |
84.6 |
1150 |
|
1400QH-72 |
-4° |
15815 |
5.99 |
450 |
370 |
84.9 |
1200 |
|
600QZ-50 |
0° |
3690.7 |
8.84 |
132 |
740 |
83.7 |
550 |
|
700QZ-75 |
0° |
5451.5 |
7.33 |
160 |
740 |
83.9 |
600 |
|
800QZ-100 |
+2° |
6513.1 |
3.99 |
132 |
590 |
84.2 |
700 |
|
1000QZ-135 |
+4° |
12167.9 |
3.41 |
200 |
490 |
82.5 |
870 |
|
1200QZ-160 |
-2° |
11975.7 |
2.85 |
160 |
490 |
83.9 |
950 |
|
1300QZ-50 |
-4° |
12936.2 |
8.9 |
450 |
370 |
82.2 |
1150 |
|
1400QZ-100 |
0° |
16426.4 |
6.51 |
400 |
370 |
82.6 |
1200 |
|
1600QZ-135 |
+2° |
29598.3 |
4.88 |
560 |
295 |
82.6 |
1480 |
Municipal Engineering
Vertical axial pumps are the core part of municipal water supply and drainage system due to their features of large flow rate and less maintenance requirements.
Agricultural Irrigation
Ideal for lifting water from rivers, canals, or reservoirs to irrigate large farmlands, as it can handle the high flow rates required.
Flood Control and Drainage
Widely used in pumping stations to quickly move massive amounts of water from flooded areas (cities, agricultural fields) to rivers or seas.
Industrial Circulation
Commonly used in power plants, refineries, and large factories to circulate cooling water through condensers and cooling systems.
Water Transfer Projects
Essential in large-scale aqueducts or cross-basin water transfer schemes where water needs to be lifted only a short height but over massive volumes.
Shipbuilding Drainage
The vertical axial flow pumps serve as the dry dock pumps in shipbuilding plants to evacuate the large a mount of water from the dock during the manufacturing and repairing process of ships.
