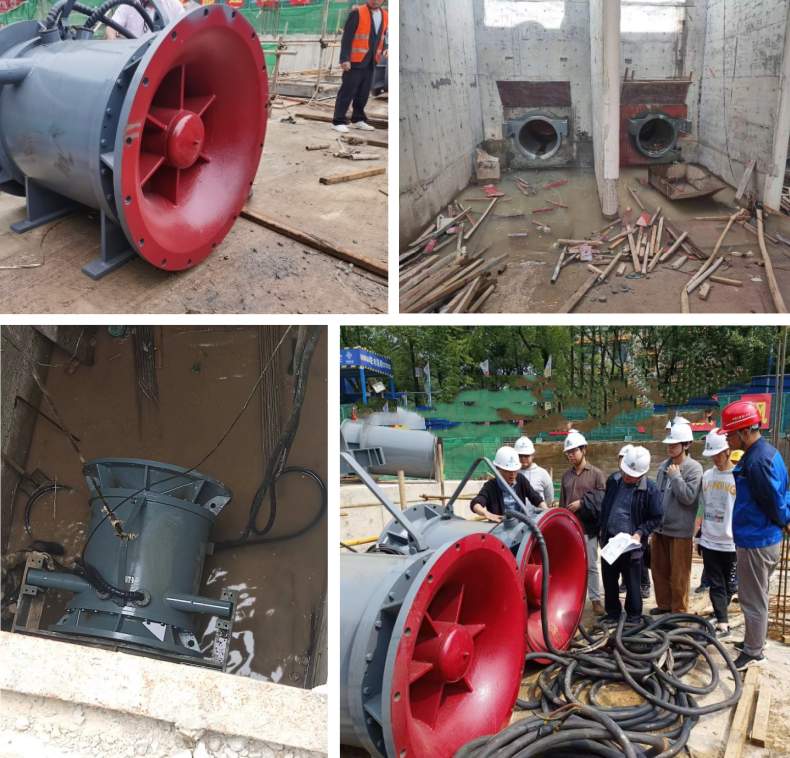

Horizontal Submersible Axial Flow Pump

Denor Horizontal Submersible Axial Flow Pump – Compact, Cost-effective, High-Volume Solution

The Denor Horizontal Submersible Axial Flow Pump (also known as a Tube Axial Flow Pump) combines the high-flow, low-head performance of an axial flow design with the space-saving advantages of horizontal submersible installation.

In this configuration, the pump and motor are coaxially integrated and fully submerged, operating horizontally within the liquid. This design is specifically engineered for applications where vertical space is limited or accessibility is challenging—such as narrow channels, tunnels, tanks, or flooded environments.

Built with a hermetically sealed, waterproof motor, the unit operates reliably underwater, with minimal vibration and noise. Its flexible installation options and easy maintenance make it a preferred choice for municipal drainage, industrial cooling, and agricultural irrigation projects worldwide .

Advantages & Design Features

1. Space-Saving Horizontal Design:
The horizontal configuration is ideal for installations where vertical headroom is limited (e.g., shallow channels, underground structures).

2. No Pump House Required – Save 30-40%:
Fully submersible operation eliminates the need for dry pits, complex foundations, or above-ground pump houses. This significantly reduces civil construction costs—by an estimated 30-40% compared to traditional dry-installed pumps.

3. High Efficiency, High Flow:
Optimized for low-head (typically < 15m) and very high flow rates. The direct motor-pump coupling eliminates long drive shafts, reducing transmission losses and improving overall efficiency.

4. Quiet Operation & Low Vibration:
Operating entirely underwater, the pump produces minimal noise and vibration, making it environmentally friendly and suitable for urban or sensitive areas.

5. Adapts to Water Level Fluctuations:
Designed to operate automatically at varying submergence depths.

6. Easy Installation & Maintenance:
Can be installed using guide rails or lifting systems, allowing the entire unit to be hoisted for inspection or repair without dewatering the site. This simplifies maintenance and reduces downtime.

7. Flexible Installation Options:

• Guide rail mounting: For easy raising and lowering in wet wells.
• Base frame mounting: For permanent installation in channels or tanks.
• Suspension system: For adjustable positioning in fluctuating water levels.

8. Robust & Reliable:
Hermetically sealed motor with IP68 protection ensures reliable operation even in harsh environments. Available in cast iron or stainless steel construction.

Why Choose Denor Horizontal Submersible Axial Flow Pumps?

• Integrated Coaxial Design: No long shafts, no alignment issues—just reliable, direct-drive performance.
• CE Certified: Meets international quality and safety standards.
• Cost-Effective: Significant savings on civil construction and installation.
• Custom Solutions: OEM/ODM available; materials, impeller angles, and configurations tailored to your project.
• Global Delivery: Secure export packaging and fast shipping worldwide.

Ordering Information
To ensure you get the right horizontal axial flow pump, our engineers will help you select the optimal configuration. Fill in your requirements in the form below for a quick quote!
