Complete range of drainage and water supply pumping equipment from reliable axial flow pump manufacturers. Our core products include axial pump, axial water pump, axial flow centrifugal pump, centrifugal axial flow pump and centrifugal pump axial flow, with transparent axial pump price, matched with integrated pumping stations, grinder screens, control cabinets and all supporting fittings.
Custom pumping solutions for municipal, real estate, commercial, industrial and flood control projects. As experienced axial flow pump manufacturers, we provide axial pump, axial water pump, axial flow centrifugal pump, centrifugal axial flow pump and centrifugal pump axial flow, reasonable axial pump price for sewage drainage, stormwater flood prevention, industrial wastewater and domestic water supply systems.
For more product information or pricing, please email us at denor@denorgroup.com or leave a message via WhatsApp so we can assist you promptly.
Main benefits of axial flow pump
Multiple submersible installation method
High efficiency in high-flow and low-head applications
Smooth and reliable operation
Robust construction, high durability and reliability
Easy Installation and low maintenance costs
High efficiency performance for best total life time cost
Product Details
Technical Data
Applications

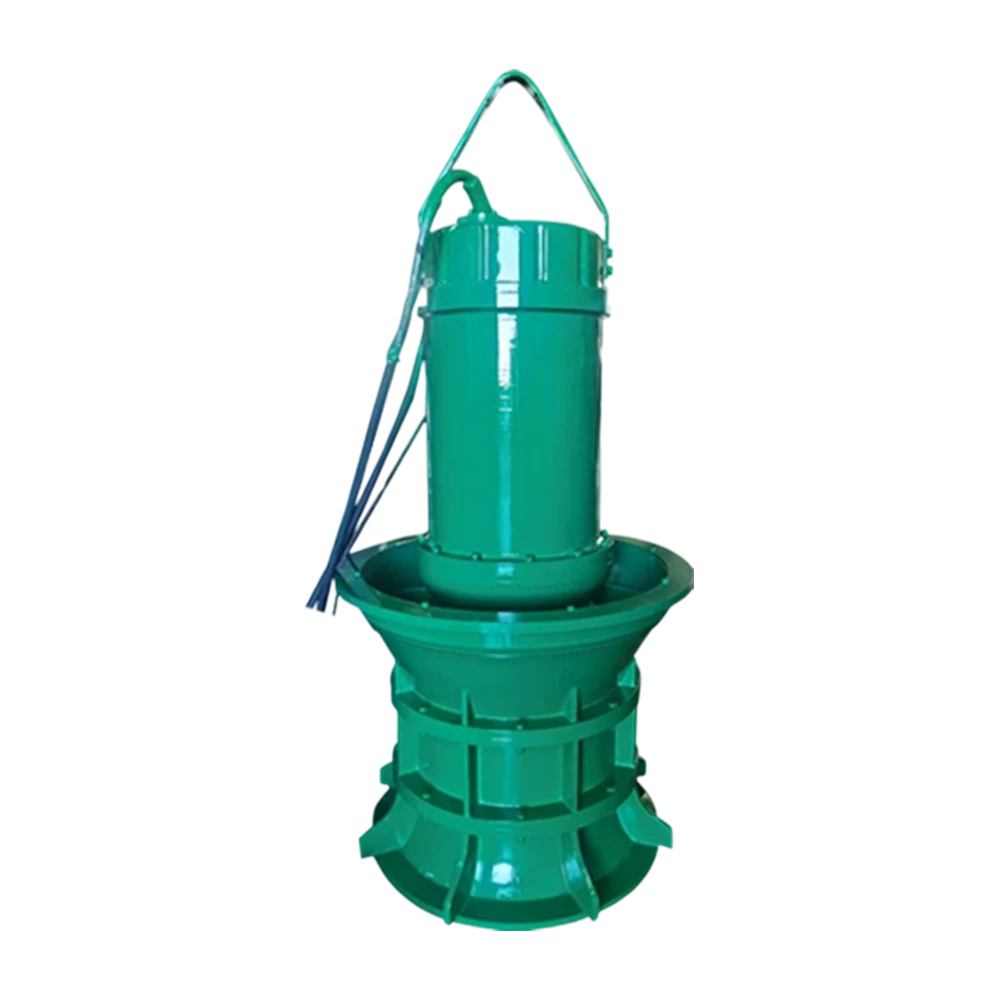

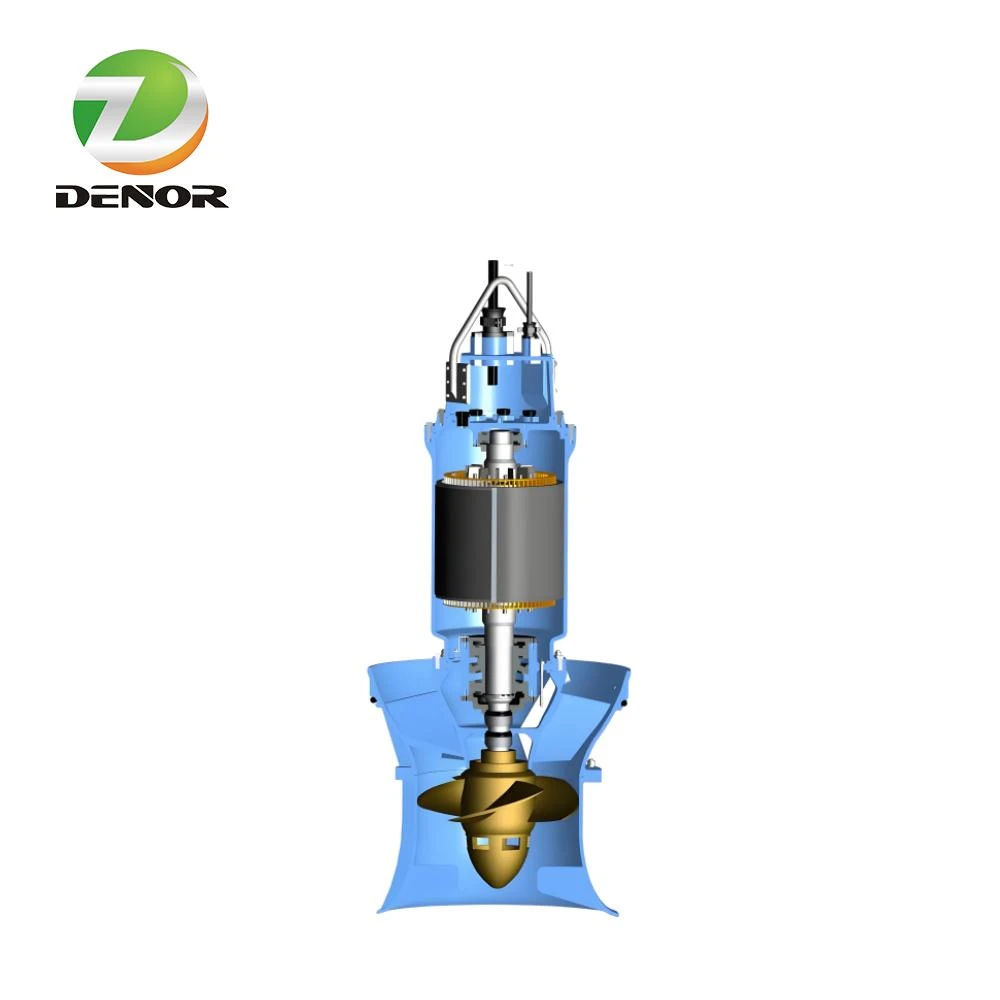

Denor QZ Submersible Axial Flow Pump — a reliable, high-flow pump built for water-moving applications. Designed to deliver:

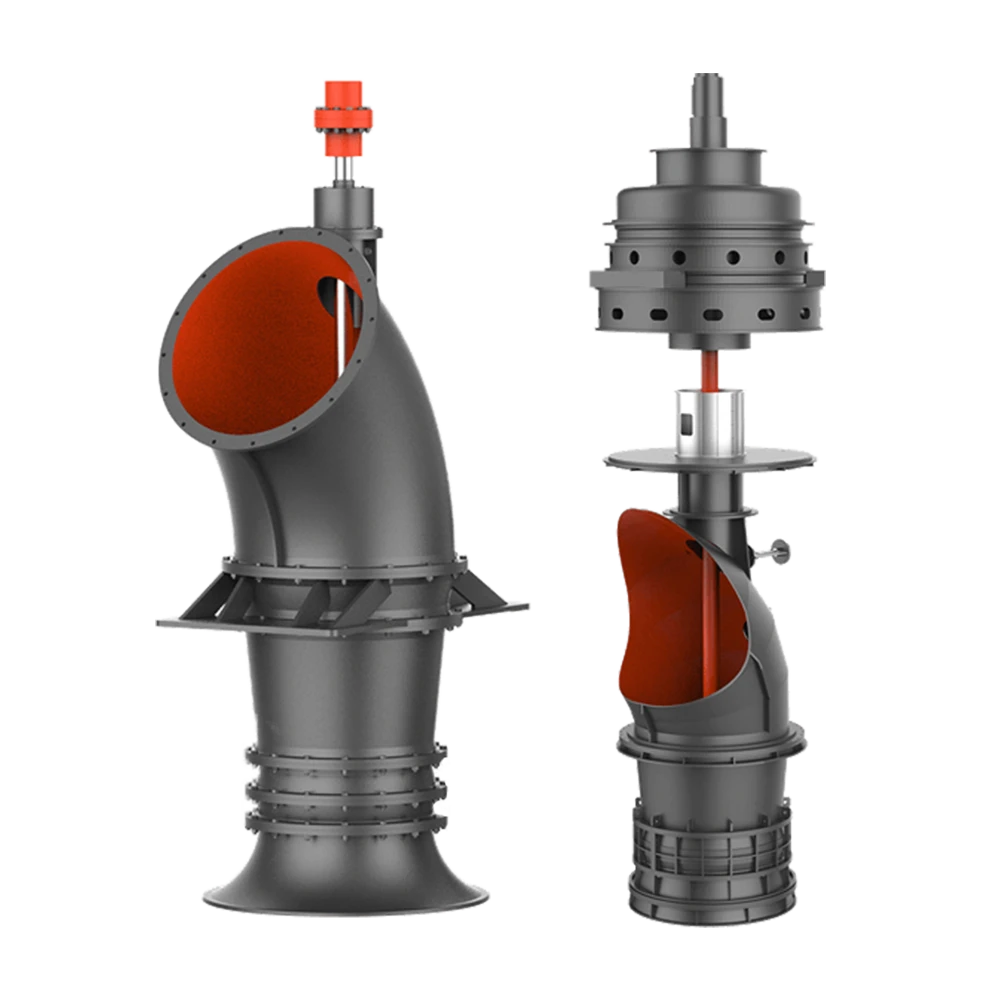

Denor ZLB Axial Flow Pump — a vertical, single-stage pump built for high flow rates at low heads.
Ideal for irrigation, flood control, and large-scale water supply and drainage projects.

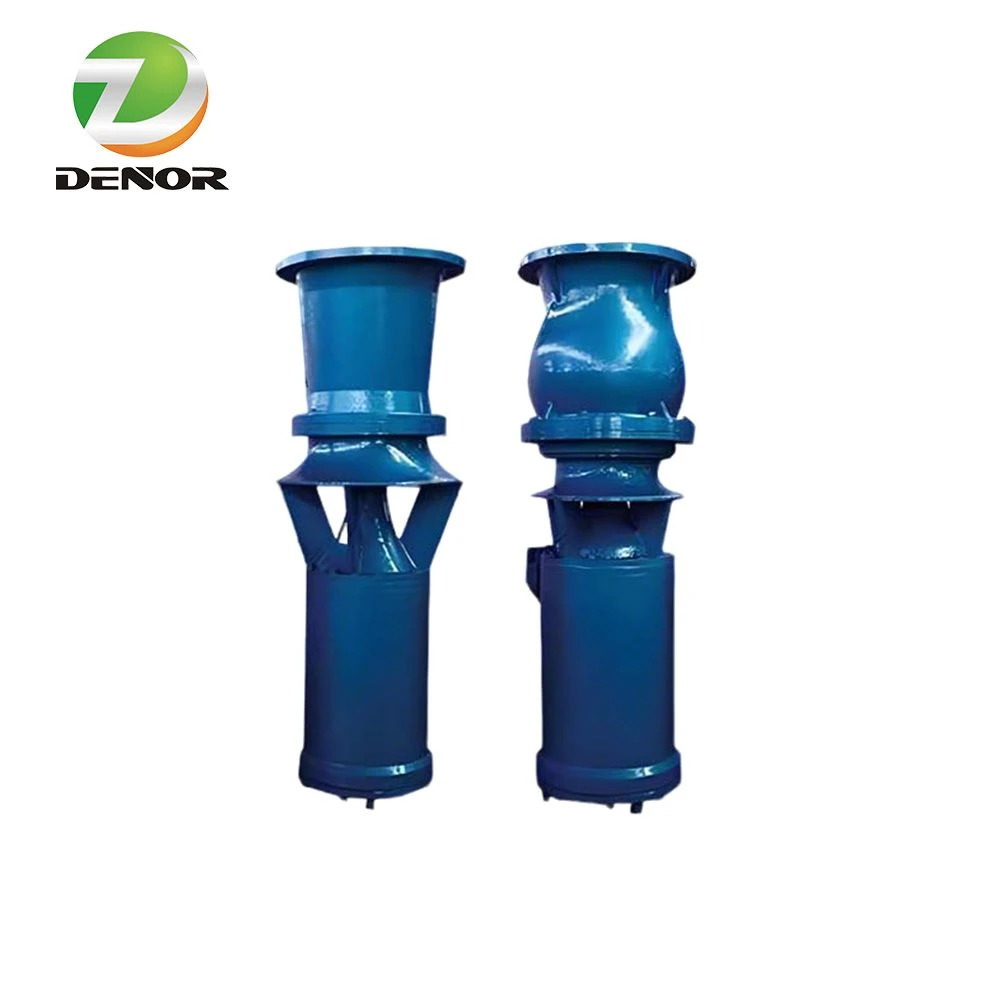

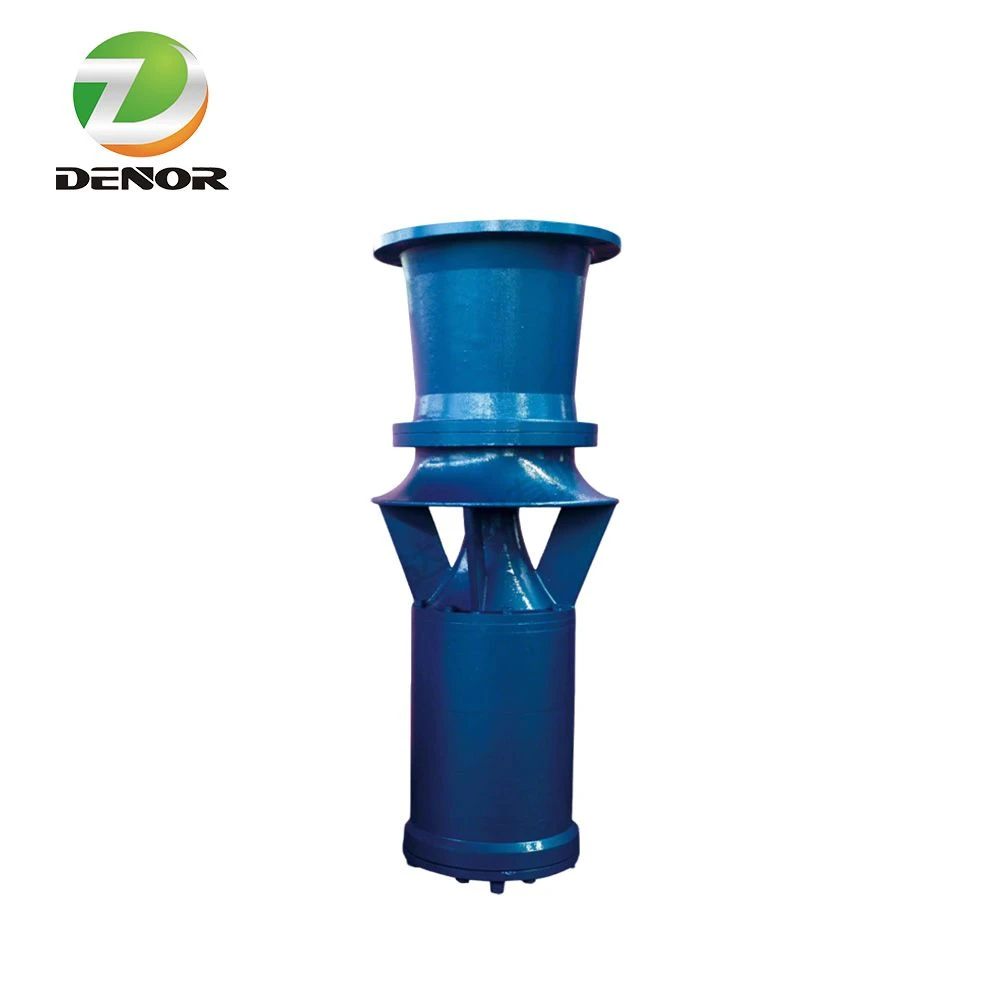

The QSZ axial flow pump is a type of vertical submersible axial flow pump designed for high-flow, low-head water transportation. It is characterized by its integrated submersible motor, which allows the entire unit to operate while fully immersed in the fluid being pumped.
The horizontal submersible axial flow pump is a tubular axial flow pump (also known as a Tube Axial Flow Pump) that combines submersible motor technology and tubular pump technology, allowing fluid to flow parallel to the pump shaft.

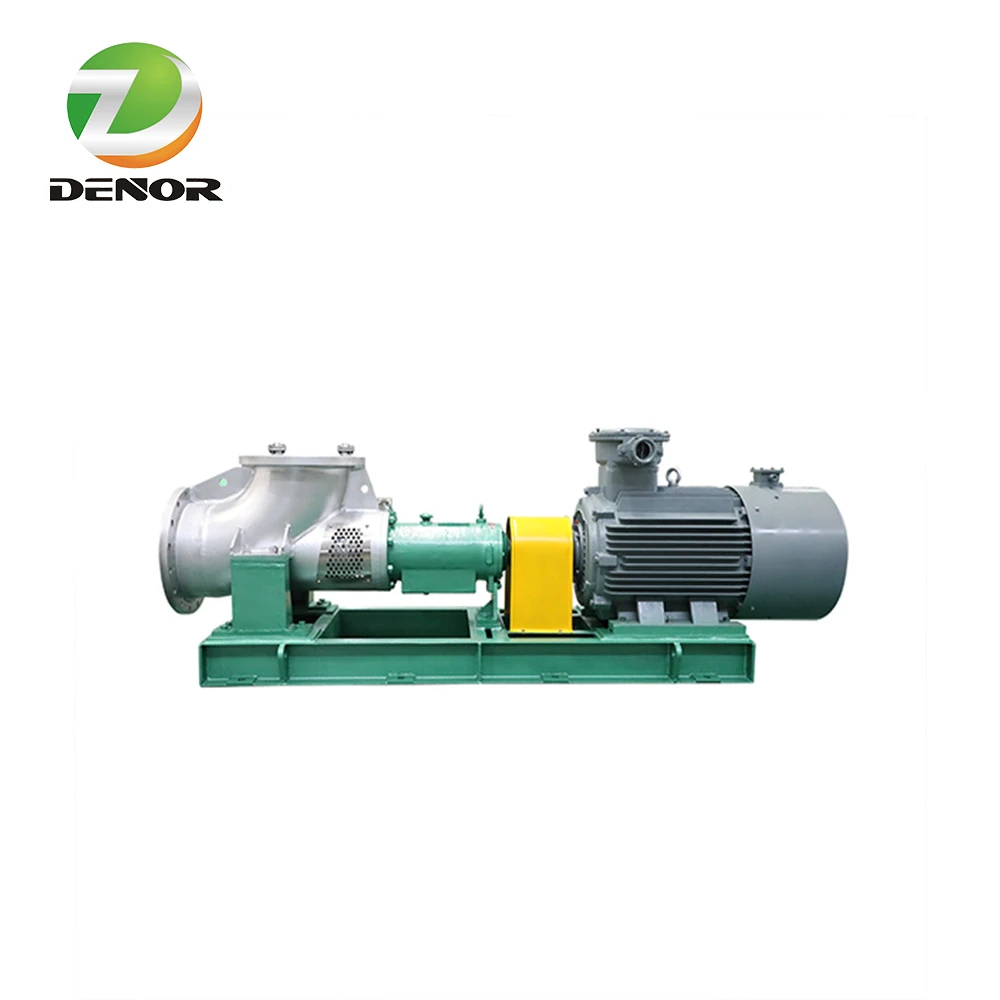

Leading Manufacturer of High-Performance Horizontal Axial Flow Pump – Optimize Performance and Reduce Downtime.
A Floating Axial Flow Pump is an integrated pumping system that combines an axial flow pump with a buoyant pontoon or barge-style platform. Less investment and no need for pump house construction are big two advantages for this kind of floating axial flow pump.
| Material | Cast Iron / SS304 or as per request |
| Flow Range | 1,800 m³/h - 180,000 m³/h |
| Lift Range | 2 m - 25 m |
| Power | 75 KW - 3,000 KW |
| Voltage | 380V, 660V, 6000V, 10000V |
| Frequency | 50Hz |
| Efficiency | 80% - 89.2% |
| Inlet/Outlet Size | Customized |
| OEM/ODM | Accept |
| Temperature | 2℃ - 50℃ |
|
Model |
Vane Angle |
Capacity (m³/h) |
Head (m) |
Power (Kw) |
Speed (r/min) |
Efficiency (%) |
Outer diameter of impeller (mm) |
|
600QH-40 |
0° |
4415.2 |
14.09 |
250 |
740 |
84.1 |
550 |
|
700QH-72 |
0° |
5056.1 |
6.54 |
160 |
740 |
84.2 |
600 |
|
800QH-35 |
0° |
7257.4 |
14.71 |
400 |
590 |
85.1 |
700 |
|
1000QH-40 |
+2° |
12461.6 |
16.52 |
710 |
490 |
86.2 |
870 |
|
1200QH-72 |
+4° |
15607 |
8.45 |
560 |
490 |
85.8 |
950 |
|
1300QH-72 |
-2° |
17024 |
4.4 |
400 |
370 |
84.6 |
1150 |
|
1400QH-72 |
-4° |
15815 |
5.99 |
450 |
370 |
84.9 |
1200 |
|
600QZ-50 |
0° |
3690.7 |
8.84 |
132 |
740 |
83.7 |
550 |
|
700QZ-75 |
0° |
5451.5 |
7.33 |
160 |
740 |
83.9 |
600 |
|
800QZ-100 |
+2° |
6513.1 |
3.99 |
132 |
590 |
84.2 |
700 |
|
1000QZ-135 |
+4° |
12167.9 |
3.41 |
200 |
490 |
82.5 |
870 |
|
1200QZ-160 |
-2° |
11975.7 |
2.85 |
160 |
490 |
83.9 |
950 |
|
1300QZ-50 |
-4° |
12936.2 |
8.9 |
450 |
370 |
82.2 |
1150 |
|
1400QZ-100 |
0° |
16426.4 |
6.51 |
400 |
370 |
82.6 |
1200 |
|
1600QZ-135 |
+2° |
29598.3 |
4.88 |
560 |
295 |
82.6 |
1480 |
Municipal Engineering
Vertical axial pumps are the core part of municipal water supply and drainage system due to their features of large flow rate and less maintenance requirements.
Agricultural Irrigation
Ideal for lifting water from rivers, canals, or reservoirs to irrigate large farmlands, as it can handle the high flow rates required.
Flood Control and Drainage
Widely used in pumping stations to quickly move massive amounts of water from flooded areas (cities, agricultural fields) to rivers or seas.
Industrial Circulation
Commonly used in power plants, refineries, and large factories to circulate cooling water through condensers and cooling systems.
Water Transfer Projects
Essential in large-scale aqueducts or cross-basin water transfer schemes where water needs to be lifted only a short height but over massive volumes.
Shipbuilding Drainage
The vertical axial flow pumps serve as the dry dock pumps in shipbuilding plants to evacuate the large a mount of water from the dock during the manufacturing and repairing process of ships.
